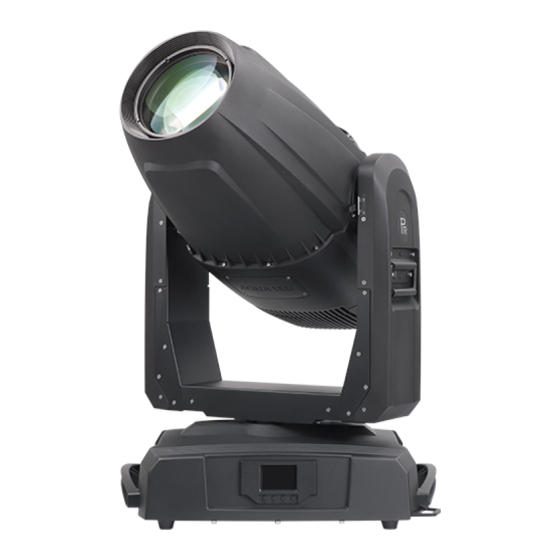

AQUA LED 3000-W FRAMING
PR-8139
This product manual contains important information about the safe installation and use of this projector.
Please read and follow these instructions carefully and keep this manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUA LED 3000-W FRAMING and is the answer not in the manual?

Questions and answers

Related Manuals for PR Lighting AQUA LED 3000-W FRAMING

Summary of Contents for PR Lighting AQUA LED 3000-W FRAMING

  • Page 1 AQUA LED 3000-W FRAMING PR-8139 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD.

  • Page 2: Table Of Contents

    Any future technical changes are not subject to further notice. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty.

  • Page 3: Safety And Warnings

    1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. User Electrical Goggles Protective High Warning Flames Manual shock Gloves Temperature ●...

  • Page 4: Instructions

    electrical parts’ life will be shortened . There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety cord ● supplied through the safety cord holes for safety support. Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from power ●...

  • Page 5: Appearance

    ●Before any maintenance and cleaning, please ensure the project is off the power. ●Only qualified person is allowed to do maintenance. ●During maintenance and before maintenance, the projector must be off power. ●To avoid sunlight or other light penetrating into the head via the front lens, resulting in high temperature internally causing damages to the projector.

  • Page 6: Installation

    4. INSTALLATION RIGGING ● During transportation, please lock the projector well; Before the use of projector please unlock the head. It’s forbidden to run the projector without unlock Pan and Tilt WARNING Please run safety cord through the safety hole to ensure safety. Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the underside of fixture with 4 retainers attached to each clamp.
  • Page 7 Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector) or 5 pin XLR plugs and sockets.
  • Page 8 Fix gobo wheel Rotating gobo wheel Color wheel Lock the tilt and loosen the 4 fast-fit screws on the upper cover ,After removing the cover, you will see the structures as the figure above. 1→2 To replace a gobo on the rotating gobo wheel: take the rotator from the wheel in the sequence of , take the gobo out from the rotator by removing the tightening spring.

  • Page 9: Setup And Configuration

    SETUP AND CONFIGURATION FRONT PANEL OPERATION ● Projector configuration can be set conveniently via push button and color touch screen. Launch the projector and press button ENTER for more than 5 seconds to unlock the panel, the LCD will show the function menu of the projector, each main menu has its submenus and each submenu has a specific function.

  • Page 10: Operation Menu

    MASTER/SLAVE MODE ● Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First, connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR control cable and then connect the second fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way.
  • Page 11 Wireless Only Wireless First Wireless In/XLR Out Artnet Only Artnet In/XLR Out sACN Only sACN In/XLR Out Normal time out Loss of DMX Hold last Value Off After Delay Display Mode On Always Invert OFF Display Config Display Invert Invert ON Invert Auto English Language Setting...
  • Page 12 Boot =XXX System= XXX Driver Board 1 Boot =XXX System= XXX Driver Board 2 Boot =XXX System= XXX Driver Board 3 Boot =XXX System= XXX Driver Board4 Boot =XXX System= XXX Blade Board Boot =XXX System= XXX Fan Board Boot =XXX Electronic SN= Electronic SN ************...

  • Page 13: Dmx Protocol

    7. DMX PROTOCOL Short Standard Extended Decimal Decimal Function Description mode mode mode High Strobe Close Pulse strobe speed from slow to fast Strobe speed slow to fast Dimmer Close Linear dimmer from dark to light (0-100%) Dimmer Fine Dimmer in 16 bit CYM Macro The following functions will disable CMY ,CTO, and Color Wheel...
  • Page 14 Colour Macro 28 Colour Macro 29 Colour Macro 30 Colour Macro 31 Colour Macro 32 Colour Macro 33 Colour Macro 34 Colour Macro 35 Colour Macro 36 Colour Macro 37 Colour Macro 38 Colour Macro39 Colour Macro 40 Colour Macro 41 Colour Macro 42 Colour Macro 43 Colour Macro 44...
  • Page 15 Colour Macro 71 Colour Macro 72 Colour Macro 73 Colour Macro 74 Colour Macro 75 Colour Macro 76 Colour Macro 77 Colour Macro 78 Colour Macro 79 Colour Macro 80 Colour Macro 81 Colour Macro 82 Colour Macro 83 Colour Macro 84 Colour Macro 85 Colour Macro 86 Colour Macro 87...
  • Page 16 Colour Wheel Continual positioning index 0-360° positioning White White/Color1 Color1 Color1/Color 2 Color 2 Color 2/Color 3 Color 3 Color 3/ Color 4 Color 4 Color 4 /Color 5 Color 5 Color 5/Color 6 Color 6 Color6/ White White Clockwise rainbow effect rotation speed from slow to fast Anti-clockwise rainbow effect rotation speed from slow to fast Color Wheel Fine Color Continual positioning in 16 Bit precision...
  • Page 17 Gobo4 Gobo5 Gobo6 Gobo7 Clockwise rotation from slow to fast Anti-clockwise rotation from slow to fast Gobo1 shake from slow to fast Gobo2 shake from slow to fast Gobo3 shake from slow to fast Gobo4 shake from slow to fast Gobo5 shake from slow to fast Gobo6 shake from slow to fast Gobo7 shake from slow to fast...
  • Page 18 Framing blade 1 right fine adjustment Framing blade 2 left Framing blade2 left linearly closing from big to small Framing blade 2 left in 16 bit Framing blade 2 left fine adjustment Framing blade 2 right Framing blade 2 right linearly closing from big to small Framing blade 2 right in 16 bit Framing blade 2 right fine adjustment Framing blade 3 left...
  • Page 19 No effect wheel Effect wheel in Effect Wheel Rotation Clockwise rotation from slow to fast Anti-clockwise reverse rotation from slow to fast Frost Light Frost from 0% to 100% Focus Linearly focusing Focus Fine Focus in 16 precision Zoom Linearly zooming Zoom Fine Zoom in 16 Bit precision Pan movement...

  • Page 20: Sings On The Touch Screen

    Gamma curve 2.6 LED refresh rate 1200Hz LED refresh rate 2400Hz LED refresh rate 4800Hz LED refresh rate 10000Hz LED refresh rate 12000Hz LED refresh rate 1500Hz LED refresh rate 20000Hz LED refresh rate 25000Hz Reserved Pan/Tilt speed mode Pan/Tilt time mode Reserved Reserved Pan/Tilt reset...

  • Page 21: Error Messages

    9.ERROR MESSAGES The system can detect some errors during the reset, if displayed, touch to view the error. The error messages are as follows: Name Type Correction Timeout/magnet Sensor/Encoder Check if wiring, positioning parts and motors are normal Timeout/magnet Sensor/Encoder Check if wiring, positioning parts and motors are normal Tilt Timeout...

  • Page 22: Technical Data

    10. TECHNICAL DATA ELECTRICAL PARAMETERS Input voltage:200V-240V AC，50Hz Input power: 1500W@220V Power factor: PF>0.95 SPECIFICATIONS OF LIGHT SOURCE Lamp 1200W ,LED white Colour Temperature 8000K 20000hrs Manufacturers Rated Lamp Life Ra ≥70 COLOR S Blue Purple CMY linear coloring mixing system with macros 1Color Wheel Green 6 exchangeable colors+ open...
  • Page 23 1#:110010212B 2#:110010211B 3#:110010210B 4#:110010209B 5#:110010208B 6#:110010207B 7#:110010206B Gobo external size: 36.3mm, image size: 23mm FRAMING Framing module:4 framing blades to make graphics with different sizes and shapes Each blade to make full curtain effect Bi-directional continual rotation for the whole module PRISM 1pc of 4-facet circular prism, bi-directional rotation with varied speeds with indexing function FROST...
  • Page 24 35channels in short mode, 38channels in standard mode,54channel in extended mode Master/Salve synchronized control mode Standalone mode OTHER FUNCTIONS Pan and Tilt speeds adjustable Pan and Tilt swappable and invertible Touch color screen, Chinese and English menus, brightness and contrast adjustable Error diagnostic system with sensors Display of fixture hours and software versions Modular construction for easy maintenance...

  • Page 25: Circuit Diagram And Pcb Connections

    LIGHT OUTPUT 56° lux 2596 6° lux 87198 21800 9689 5450 3488 2422 DIAMETER (m) 6°DIAMETER (m) 56°DIAMETER (m) 9. CIRCUIT DIAGRAM AND PCB CONNECTIONS CIRCUIT DIAGRAM ●...
  • Page 27 PCB CONNECTIONS ● Display board Name 485 Signal Reserved DMX 512 Signal Wireless Power Input Reserved Internet Input Driver board Name 48V Input - 48V Input + PWM Input LED driver Output Pan and Tilt board Name Pan & Tilt encoder Magnet sensors for pan and tilt DMX signal input DMX signal output...
  • Page 28 8-channel fan board Name PWM Fan Output PWM Output PWM Output 11-12 485 Signal 13-15 Reserved Temperature Power Input Name 7-channel driver board Zoom Motor Focus Motor Prism In/Out Motor Prism rotation Motor Frost Motor Reserved Magnet sensors Zoom Magnet sensors Focus Prism/Prism rotation magnet sensor Reserved 13-14...
  • Page 29 4-channel driver board Name Rotating gobo wheel rotation motor Effect wheel In/Out motor Gobo rotation motor Effect wheel rotation motor Rotating gobo wheel magnet sensor Gobo rotation sensor Power Input 9-10 485 Signal Input 485 Signal Output 13-14 Reserved Power supply converting board Name 485 Signal 6-11...
  • Page 30 Framing module board Name Framing motor Iris motor 1 Software flashing interface...

  • Page 31: Component Order Codes

    COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK POWER SUPPLY 192010215 POWER SUPPLY 192010228 LED ENGINE 150020326 FAN FOR LED ENGINE 030060109 BLOWER FOR COLOR WHEEL 030060117 BLOWER FOR BASE 030060075 LED DRIVER FAN 030060084 FAN FOR BASE 030060084 FAN FOR LENS 030060121 BLOWER FOR LENS 030060072A...
  • Page 32 Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted! 320021267...
