  • Page 2: Table Of Contents

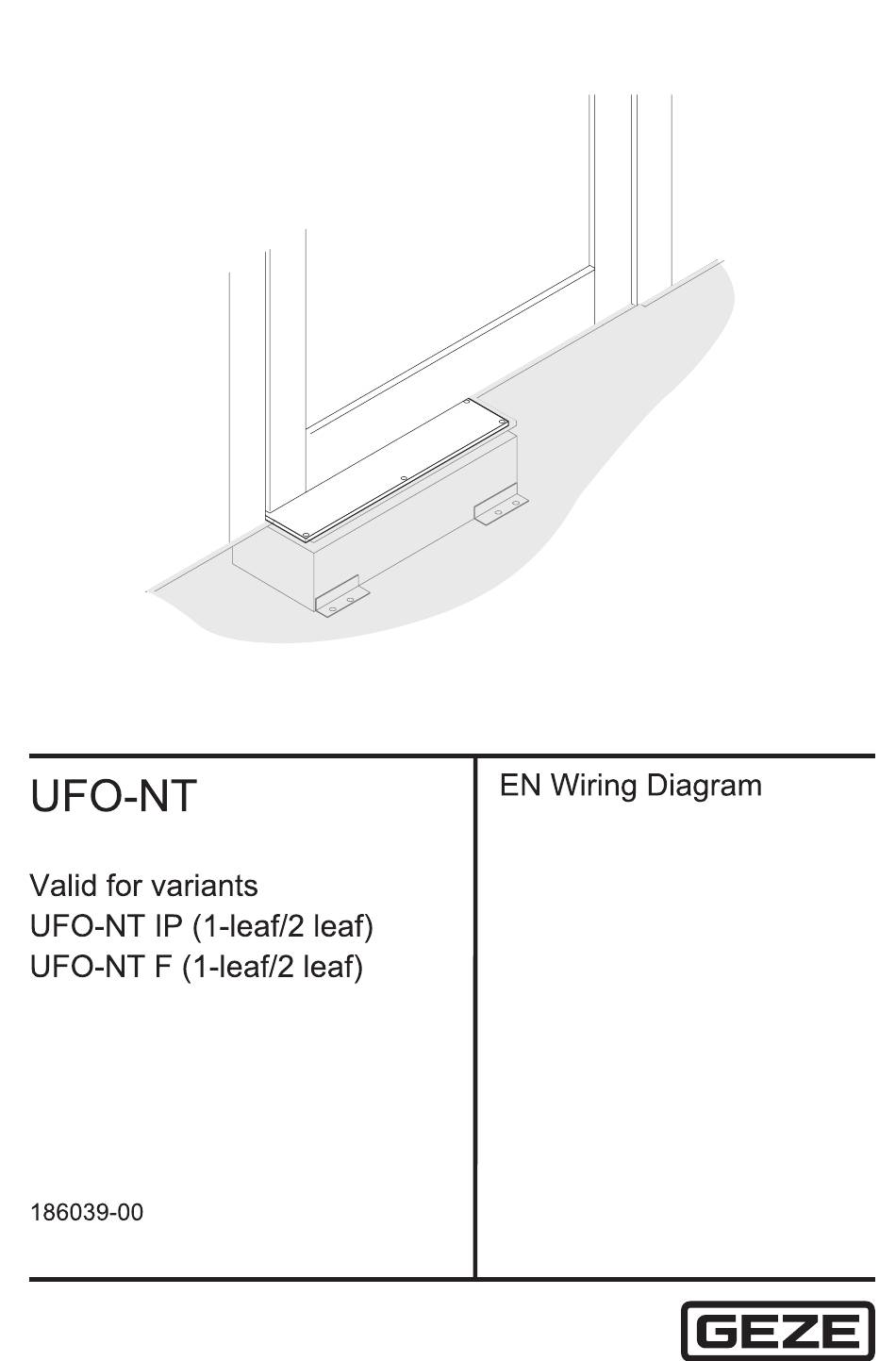

    UFO-NT Table of contents Symbols and illustrations ..............................4 Validity .....................................4 Product liability ..................................4 Notes ....................................5 Important safety instructions ..................................5 Installation information ....................................5 Safe operation ........................................5 Inspection of installed system ..................................5 Disposal of the door system ..................................6 Abbreviations ................................6 Electrical data ................................6 Supply terminals ..............................7 "Open"...
  • Page 3 UFO-NT Configurable outputs ............................27 12.1 Configurable output PA1 .................................... 27 12.2 Configurable output PA2 .....................................31 Electric strike ................................33 13.1 24V DC electric strike supplied on drive side ............................34 13.2 Customer-supplied 12 V AC electric strike ............................34 13.3 Bolt message ........................................

  • Page 4: Symbols And Illustrations

    UFO-NT Symbols and illustrations Warning notices Warning notices are used in these instructions to warn you of property damage and personal injury. Always read and observe these warning notices. Observe all measures marked with the warning symbol and warning word. Warning Warning word Meaning symbol...

  • Page 5: Notes

    à Unauthorised modifications to the system release GEZE from liability for any resulting damages. à GEZE makes no guarantee for combinations with third-party products. In addition, only original GEZE parts may be used for repair and maintenance work. à Connection to the mains voltage must be carried out by a qualified electrician. The mains connection and equipment ground conductor test must be performed in accordance with VDE 0100 Part 610.

  • Page 6: Disposal Of The Door System

    Abbreviations UFO-NT Disposal of the door system à The door system is made up of materials that should be sent for recycling. The individual components have to be sorted in accordance with their material type. à Aluminium (profiles, cover, return pulleys, sliding blocks, ...) à...

  • Page 7: Supply Terminals

    UFO-NT Supply terminals Supply terminals DCU800 RS485 passive leaf FREE...
  • Page 8 Supply terminals UFO-NT DCU802 N.N. 20 3 21 4 1 10 4 1 11 10 4 1 13 36 35 1 33 32 31 2 1 41 42 2 1 8 7 6 53 52 51 57 56 55 2 98 97 96 95 DPS-RS485 Optional:...

  • Page 9: "Open" And "Close" Safety Sensor

    UFO-NT "Open" and "close" safety sensor "Open" and "close" safety sensor In the case of 2-leaf systems, connect the safety sensors of the active leaf with the active leaf control and those of the passive leaf with the passive leaf control. Install the sensor for monitoring closing on the door leaf, opposite hinge side.
  • Page 10 "Open" and "close" safety sensor UFO-NT 5. 1 . 1 Monitoring closing and opening Standard operation Setting the "Contact type" parameter; à DPS: ("NC") (default set- ting). à ST220: Set the "Input signals", "SI1 – terminal SIS", "SI1 contact type" to "NC" and "SI3 –...
  • Page 11 UFO-NT "Open" and "close" safety sensor 5. 1 .2 Monitoring opening Standard operation Setting the "Contact type" parameter: à DPS: ("NC") (default setting). à ST220: Set the "Input signals", "SI3 – terminal SIO", "SI3 contact type" to "NC" (default setting). à...

  • Page 12: Safety Sensor Gc 342

    "Open" and "close" safety sensor UFO-NT 5. 1 .3 Monitoring closing Standard operation Setting the "Contact type" parameter: à DPS: ("NC") (default setting). à ST220: Set the "Input signals", "SI1 – terminal SIS", "SI1 contact type" to "NC" (default setting). à...
  • Page 13 Test GC 342 Door transmission cable GC 342 settings à See installation instructions GC 342. à GEZE recommends using the optional remote control to change the sensor parameters. DCU8 settings Setting the "Contact type" parameter: à DPS: ("NC") (default setting).

  • Page 14: Safety Sensor Gc 334

    "Open" and "close" safety sensor UFO-NT 5.2.3 Monitoring closing 60 mA 24VSENS Test GC 342 Door transmission cable DCU8 settings Setting the "Contact type" parameter: à DPS: ("NC") (default setting). à ST220: Set the "Input signals", "SI1 – terminal SIO", "SI1 contact type" to "NC” (default setting). Setting the Function parameter: à...
  • Page 15 UFO-NT "Open" and "close" safety sensor 5.3.2 Monitoring opening Setting the "Contact type" parameter: GC 334 Module à DPS: (NC) (default setting). à ST220: Set the "Input signals", "SI3 – terminal 13 SIO 60mA SIO1" and "SI3 contact type" to "NC" (default setting).

  • Page 16: Safety Sensor Gc 335

    "Open" and "close" safety sensor UFO-NT 5.3.4 GC 334 connection over interface GC 334 GC 334 Module GC 334 Module 60mA 24VSENS Interface GC 334 GC 334 Door transmission cable Safety sensor GC 335 à GC 335 master module, mat. no. 128074 GC 335 extension kit (slave module with accessories), mat. no. 128072 à...
  • Page 17 UFO-NT "Open" and "close" safety sensor 5.4. 1 Monitoring closing and opening Setting the "Contact type" parameter: à DPS: (NC) and (NC) (default setting). à ST220: Set the "Input signals", "SI1 – terminal SIS1", "SI1 contact type" to "NC" and "SI3 –...

  • Page 18: Mechanical Contact

    Mechanical contact UFO-NT 5.4.2 Monitoring opening Setting the "Contact type" parameter: GC 335 à DPS: (NC) (default setting). Slaves à ST220: Set the "Input signals", "SI3 – terminal 13 SIO SIO1" and "SI3 contact type" to "NC" 60mA (default setting). Setting the Function parameter: 24VSENS à...

  • Page 19: Contact Sensor Inside

    UFO-NT Contact sensor inside Contact sensor inside à The input KI is active in the operating modes AU and LS. à In the case of 2-leaf systems the contact sensor inside (KI) can be connected to the active leaf control or to the passive leaf control.

  • Page 20: Contact Sensor Outside

    Contact sensor outside UFO-NT Contact sensor outside à The KA input is only active in the AU mode of operation. à In the case of 2-leaf systems, the contact sensor outside can be connected to the active leaf control or to the passive leaf control.

  • Page 21: Radio Control

    Set the radio reception board WRB-5 (1) onto spacer (2) and connector strip (4). Move the aerial to the right position, see figure. Transmitting module WTM Transmitting module WTM, mat. no. 131212 See the GEZE Automatic Wireless Programme installation and service instructions...

  • Page 22: Push And Go

    Push And Go UFO-NT Push And Go WARNING Danger of injury due to crushing and shearing! During an activated Push And Go function door handles can form potential danger points. à The Push And Go function allows activation of the drive without contact sensors being used. à...

  • Page 23: 2-Leaf Opening And 1-Leaf Opening

    UFO-NT Configurable inputs 11.2 2-leaf opening and 1-leaf opening à The configurable inputs of the active leaf control can be used to change between 2-leaf opening or 1-leaf opening as required (depending on the parameter setting). For example, this may be advisable if the opening type is switched by a timer via the available programme switching inputs (NA, LS, AU, DO).

  • Page 24: Emergency Lock

    Configurable inputs UFO-NT 11.5 Emergency lock WARNING Danger of injury due to crushing and shearing! The safety sensors and the obstacle are not evaluated. The door closes with the set force. If the door closes suddenly, move out of the hazard zone. Not permissible in the case of rebated doors and escape routes.

  • Page 25: Control Reset

    UFO-NT Configurable inputs 11.7.3 Switch function hold-open time For 2-leaf drives, the settings on the active leaf control determine the hold-open time. for: 1 switch contact = open door / 2nd switch contact = close door If the SIO is triggered before the hold-open time or the 2nd switch contact is activated, the hold-open time runs out and is not cancelled by the 2nd switch contact.

  • Page 26: Stop

    Configurable inputs UFO-NT 11. 1 0 STOP Configurable inputs PE1, PE2 and PE3 can be used for connection of a stop push button or sensor strip. Inputs PE2 and PE3 can also be evaluated in the same way. à On activation, the door leaf stops (in case of 2-leaf systems both leaves) and remains in the stopped position as long as the input is active.

  • Page 27: Wc Control Unit

    UFO-NT Configurable outputs 11. 1 2 WC control unit Connection to the internal push button for the WC function, see also chapter 15. 11. 1 3 1 leaf open à The passive leaf must be switched on. à Upon activation, the output of the activation device is closed (24 V applied to the PE1 or PE2 input). à...
  • Page 28 Configurable outputs UFO-NT 12. 1 .2 Fault à The function is used for fault messages, e.g. to a customer building control centre. The contact closes or opens if the control determines a fault, see chapter 28 “Error messages”. à Set the parameters with: à...
  • Page 29 UFO-NT Configurable outputs Drive-side supplied electric strike Free swing diode 1N4007, mat. no. 115293 PA1A Wire jumper PA1B Customer-supplied electric strike ~ 12V AC ~ à Contact load output PA1 at 12 V AC: max. 1 A max. 1A PA1A PA1B Bolt message (RM) See chapter 13 "Electric strike", "Bolt message".
  • Page 30 Configurable outputs UFO-NT 12. 1 .7 Light control WARNING Risk of fatal injury due to electric shock! Danger of damage to the electrical control! Output PA1 of the control cannot switch the illumination directly. Do not connect mains voltage to the PA1 output of the control. à...

  • Page 31: Configurable Output Pa2

    UFO-NT Configurable outputs 12.2 Configurable output PA2 PA2 is a transistor output, switching voltage/current max. 24 V DC / 0.5 A. 12.2. 1 Gong The output is selected, if KA or SIS (for a "SIS and KA" setting) is activated. à Set the parameters with: à...
  • Page 32 Configurable outputs UFO-NT 12.2.5 Electric strike à The electric strike function is not permissible if the drive is used for the fire protection area (Powerturn F, F/R, F-IS with fire protection kit). à Only inductive DC electric strikes (without integrated electronics) may be connected to PA2. Electric strikes with integrated electronics must be connected to the configurable output PA1, see chapter 12.1.5, "Electric strike".

  • Page 33: Electric Strike

    à Motor lock with panic function GEZE IQ Lock EL for 1-leaf doors. The GEZE IQ Lock EL is a self-locking anti-panic motor lock with external control. See wiring diagram for motor lock IQ Lock EL. IQ Lock SecuLogic set (Motor lock PZ-bored, complete, incl.

  • Page 34: Dc Electric Strike Supplied On Drive Side

    10°, the electric strike signal is deactivated. 13. 1 24V DC electric strike supplied on drive side GEZE electric strike for standard applications, doors with access control GEZE electric strike Mat.

  • Page 35: Bolt Message

    UFO-NT Free cable connections 13.3 Bolt message When active, the DPS switches to night mode. An operating mode LED on the drive indicates the operating mode (e.g. green when in automatic operating mode). à Input RM blocks the activation of the drive when the door is locked. If Input RM becomes active while the door is open, the door reverses and remains open.

  • Page 36: Wc Control

    WC control UFO-NT WC control Only operates with fail-safe electric strike. For connection and configuration, see chapter 13 "Electric strike". oder PE1, PE2 PE1, PE2 oder oder PA1 PA2 PA1 PA2 PA1A PA1A PA1B PA1B Internal push button (switch unit with illuminated display) Illuminated OCCUPIED display External push button (switch unit with illuminated display) Signal horn SLH220 (optional)

  • Page 37: Mode Of Operation

    UFO-NT Mode of operation à ST220: à Set "PE1" or "PE2" to "WC control". à Set "PA1" or "PA2", "Function" to "Exit only". à Set "PA1" or "PA2", "Function" to "WC control alarm". à Set "Hold-open time, "1-leaf opening" to the desired time (0–60 s). Accessories: à...
  • Page 38 Mode of operation UFO-NT Mechanical programme switch (MPS-D) à MPS-D, AS500, mat. no. 118417 à MPS-D-ST, with key, AS500, mat. no. 118418 à Accessories: Surface-mounted cap, single, AS500, mat. no. 120503 à For 2-leaf systems, the MPS-D is connected to the active leaf.

  • Page 39: Setting The Mode Of Operation Using Push Buttons Or Switches

    UFO-NT Mode of operation Blocking or releasing DPS operation à Blocking operation by key switch Operation of the DPS can be blocked/released by connecting a key switch to prevent the mode of operation be- ing changed by unauthorised persons. Operation is possible using the key switch. à...

  • Page 40: 17 2-Leaf Drives

    2-leaf drives UFO-NT 2-leaf drives 17. 1 Two automated door leaves à For parameter settings, see chapter 20 "Commis- RS485 GF RS485 SF sioning and service". RS485_B RS485_B Establish RS485 connection between both drives RS485_A RS485_A via system cable mat. no. 120048 or mat. no. 120061, see chapter 17.2 "Connection via system cable RS485".

  • Page 41: Control

    UFO-NT Control Control Slot for F-board DCU801 LED solenoid valve Service buttons and service LEDs PROG LED 24V ext Slot for radio board WRB-5 Brake FREE Ventilator 24 V Encoder RS485 Motor Control box Temperature sensor Latching action switch...

  • Page 42: Commissioning And Service

    Commissioning and service UFO-NT Commissioning and service Commissioning and service can be performed using the DPS DPS, the service terminal ST220 or the internal service keys. 20. 1 Commissioning 20. 1 . 1 Requirements à Drive à attached à not taught à...

  • Page 43: Teaching A 1-Leaf System

    UFO-NT Commissioning and service 20.3 Teaching a 1-leaf system Step Actions ST220 display DPS display Service LED display (5  Select parameter “Start teaching” and press the Start teaching ENTER key. Select 1-leaf system. Start the respective teaching in DPS (NT) à...

  • Page 44: Teaching A 2-Leaf System

    Commissioning and service UFO-NT 20.4 Teaching a 2-leaf system Teaching a 2-leaf system with service keys is not possible. Step Actions ST220 display Service LED display  display (5 Select parameter “Start teaching” and press the ENTER Start teaching key. Select 2-leaf system.

  • Page 45: Forces And Speeds

    UFO-NT Disconnected mode 20.5 Forces and speeds 20.5. 1 Forces The forces set using "Opening force" (FO), "Opening retention force" (0F), "Closing retention force" (CF), "Force closed position" (FS) or "Closing force" (FC) always refer to N at the main closing edge. à...

  • Page 46: Free Swing Function

    Free swing function UFO-NT Free swing function à The parameter “free swing function” is used to determine how the drive reacts to external loading. à When the parameter “free swing function” is set, the drive will allow you to manually push the door to open or close it even in automatic operation.

  • Page 47: Low-Energy Mode

    UFO-NT Low-energy mode Compliance with low-energy function The table shows compliance with low-energy function depending on door width and max. door closing torque. Door width [m] Max. door closing torque [Nm] Low-energy mode à Doors set to low-energy mode generally do not require any additional protective devices, if no particularly vulnerable persons are expected to use the door.

  • Page 48: Servo Mode

    If the drive does not fulfil these requirements, it is in low-energy mode. The leaf movement must then be safe- guarded using protective devices. Servo mode The GEZE Powerturn drive can be operated as a servo drive. It provides torque-controlled support to users dur- ing manual passing. The servo drive is operated and set within the automatic operating mode.

  • Page 49: Servo Support With Fire Alarm With Additional Torque

    UFO-NT Servo mode 26.2 Servo support with fire alarm with additional torque 26.2. 1 Servo function with fire alarm à Building approval is required for each individual case when using the function on fire protection doors. à The drive must be supplied by a safety power supply provided by the customer, or an uninterruptible power supply (UPS).

  • Page 50: Service Menu

    Service menu UFO-NT à The DO mode is disabled in the event of a fire alarm. The door closes upon expiration of the set servo duration à The additional servo torque ( ) must be set for the low energy mode. à...

  • Page 51: Connecting Service Terminal St220

    UFO-NT Service menu Display immediately after connection G E Z E Service terminal Software version ST220 V2.1 XXXXXYWWJJZZZZZZV Serial number ST220 27. 1 .2 Service mode ST220 à The change to service mode occurs when the service terminal is connected to DCU8. à...

  • Page 52: Service Menu St220

    Service menu UFO-NT 27.3 Service menu ST220 See chapter 27.5 "Service menu DPS" for explanations of the individual parameters. 27.3. 1 Configuration of a 2-leaf drive Selection of active leaf/passive leaf configuration Start GF or SF? Selection of the parameter setting GF or SF Active leaf Para* Active leaf configuration setting Passive leaf Para...
  • Page 53 KB in the event of NA, as well as closing the door when switching from DO to AU, requires a few seconds, as the system first has to boot up. value GEZE bus address Value: For DCU103 value value...
  • Page 54 Service menu UFO-NT 27.3.5 Movement parameters Name 1 Sub-menu 2 Sub-menu Explanation Speeds Opening time Value: Opening time with automatic opening. Setting pursuant to the table in the Powerturn max. installation instructions. Closing time Value: Closing time as per automatic/ manual opening.
  • Page 55 UFO-NT Service menu Name 1 Sub-menu 2 Sub-menu Explanation 00 N Closed position force Value: Force activates in the closed 00 N position after the end of the 150 N latching action. Manual passing is more difficult during the set time.
  • Page 56 Service menu UFO-NT Name 1 Sub-menu 2 Sub-menu Explanation Servo duration Value: Adjustable duration of the force support in servo mode 20 s Additional servo Value: 0 Nm Adjustable torque for force- torque 0 Nm supported manual passing (time 50 Nm limited by “servo duration”).
  • Page 57 UFO-NT Service menu Name 1 Sub-menu 2 Sub-menu Explanation Manual intervention Value: 0 value Sets, within the automatic clos- min. 0 value ing, the option to manually in- max. 10 value tervene in the door movement from the SIO page. When active, the door can then be manually reopened.
  • Page 58 Service menu UFO-NT Name 1 Sub-menu 2 Sub-menu 3 Sub-menu Explanation SIO manual not active Safety sensor "open" (SIO) not active active during manual opening. Bolt contact current state Bolt contact type type Z-> not active K-> NO contact F-> Lock contact NO contact Lock contact Feedback e.g.
  • Page 59 UFO-NT Service menu Name 1 Sub-menu 2 Sub-menu 3 Sub-menu Explanation NA contact type not used NO contact current state Z-> not active K-> NO contact LS contact type not used NO contact current state Z-> not active K-> NO contact AU contact type not used NO contact current state...
  • Page 60 Service menu UFO-NT Name 1 Sub-menu 2 Sub-menu 3 Sub-menu Explanation Switch function On activation, the output of the push button is closed. With 2-leaf assemblies the push but- ton can be connected to the ac- tive leaf control or to the passive leaf control.
  • Page 61 UFO-NT Service menu Name 1 Sub-menu 2 Sub-menu 3 Sub-menu Explanation not used PE2 function MPS For connection of an MPS Switch over summer For the connection of a push button for the summer function. Switch over winter For the connection of a push button for the winter function Sabotage NC see PE1...
  • Page 62 Service menu UFO-NT Name 1 Sub-menu 2 Sub-menu 3 Sub-menu Explanation Fire alarm If active, the door opening torque function with fire alarm torque is set for the duration. 1-leaf opening In 2-leaf systems, when the signal is active on the active leaf only 1 leaf is opened.
  • Page 63 UFO-NT Service menu Name 1 Sub-menu 2 Sub-menu 3 Sub-menu Explanation 1-leaf opening In 2-leaf systems, when the signal is active on the active leaf only 1 leaf is opened. Display only for 2-leaf drives. Mode of opera- current state Mode of operation tion push button push button...
  • Page 64 Service menu UFO-NT Name 1 Sub-menu 2 Sub-menu 3 Sub-menu Explanation Holding magnet SF For setting the holding magnet (passive leaf). WC timeout To connect a lamp or a signal to signal when the 30-min. timer has expired for the WC function. current state Z->...
  • Page 65 UFO-NT Service menu 27.3.7 Diagnosis Name 1 Sub-menu 2 Sub-menu Explanation Current values Inputs 0.0 V 0.0 V Latching act Outputs closed TEST Internal values current position current motor power Mot DCU800 0.0 A Voltages Mains 24 V internal xy.z V 24 V external xy.z V Temperatures...
  • Page 66 Service menu UFO-NT Name 1 Sub-menu 2 Sub-menu Explanation Outputs TEST Fault memory Current faults Error 1 Cause 1 Cause 2 Error 2 Cause 1 Cause 2 Error 3 Cause 1 Cause 2 Error 4 Cause 1 Cause 2 Old faults Error 1 Cause 1 Cause 2...
  • Page 67 à If the password has been forgotten, a special flash file with which the password on the control can be reset to 00 has to be requested from GEZE. à The password cannot be deleted by installing a new software version...

  • Page 68: Dps (Dps)

    Service menu UFO-NT 27.3. 1 4 Language Name Setting values Explanation German Language English French Swedish 27.4 DPS (DPS) The DPS can be used for commissioning and servicing, mat. no. 151524: à for changing the drive parameters à for "teaching" the drive à...
  • Page 69 UFO-NT Service menu DPS Parameter Setting values Explanation Hold-open times 00 … 01 … 10 in s; O ® 1-leaf (winter) 12 … 20 with 2-leaf drive for winter operation. With activation KI, KA 25 … 50 SIS rev SIS function If the safety sensor "close" triggers, the door reverses. SIS and KI If the safety sensor "close"...
  • Page 70 Service menu UFO-NT 2 Menu DPS Parameter Setting values Explanation Push And Go hold- in s; open times 01 … 10 Hold-open time during passage with Push and Go. 12 … 20 25 … 50 Manual hold-open in s; times 01 … 10 Hold-open time for manual opening; 12 … 20 Values corresponding to the time.
  • Page 71 UFO-NT Service menu DPS Parameter Setting values Explanation Start teaching Start/terminate Teaching a 2-leaf system For the procedure, see chapter 20.2. ->2 leaf Teaching Current faults Displays the current errors in the fault memory. e® Delete with Delete old errors Displays the old errors in the fault memory.
  • Page 72 Service menu UFO-NT DPS Parameter Setting values Explanation SI3 Contact type Not used Parameter sets the use of the safety sensor "open" contact type. Frequency KB contact type Not used The input KB is active in the AU, LS and NA modes of operation. NO contact With 2-leaf assemblies the mechanical contact can be connect- ed to the active leaf control or to the passive leaf control.
  • Page 73 UFO-NT Service menu DPS Parameter Setting values Explanation Switch function OHZ NO On activation, the output of the push button is closed. With 2-leaf assemblies the push button can be connected to the ac- tive leaf control or to the passive leaf control. If the push button is connected to the passive leaf control, both door leaves open and close on activation of the switch function, even if the pas- sive leaf control is switched off (bed opening).
  • Page 74 Service menu UFO-NT DPS Parameter Setting values Explanation Stop 12 kOhm NO For the connection of a stop push button with 12 kOhm termi- nating resistor Reset switch NO For restarting the drive. Function as reset. Double push button NO Open 1× press = 1 leaf open Open 2×...
  • Page 75 UFO-NT Service menu DPS Parameter Setting values Explanation Closing force 01 … 15 … 25 ×10 N; Close static force at the main closing edge. Obstacle 01 … 03 … 20 ×0.1 s; Time for which the drive pushes against an obstacle with the set static force. 00 … 01 … 07 Opening retention x10 N;...

  • Page 76: Fault Messages St220 And Dps

    Fault messages ST220 and DPS UFO-NT Fault messages ST220 and DPS 28.5. 1 Fault display On the DPS à For troubleshooting and fault description see also list "Faults and actions - control DCU2" list. à Currently queued fault messages are displayed on the DPS in cycles (10 s). In addition, they are also entered in fault memories.
  • Page 77 UFO-NT Fault messages ST220 and DPS Fault no. Message Message on the ST220 Fault description on the DPS Mechanical fault SF A mechanical fault has occurred at the passive leaf; collective fault. Rotate angle A cam skip has been detected. Defective magnetic valve The solenoid valve of the energy store is defective.
  • Page 78 Fault messages ST220 and DPS UFO-NT Fault no. Message Message on the ST220 Fault description on the DPS EEPROM value – EEPROM comparison – Current measurement error Error in motor current measurement. EEPROM time-out – Quartz tolerance – RAM test –...
  • Page 79 UFO-NT...
