"Open" and "close" safety sensor

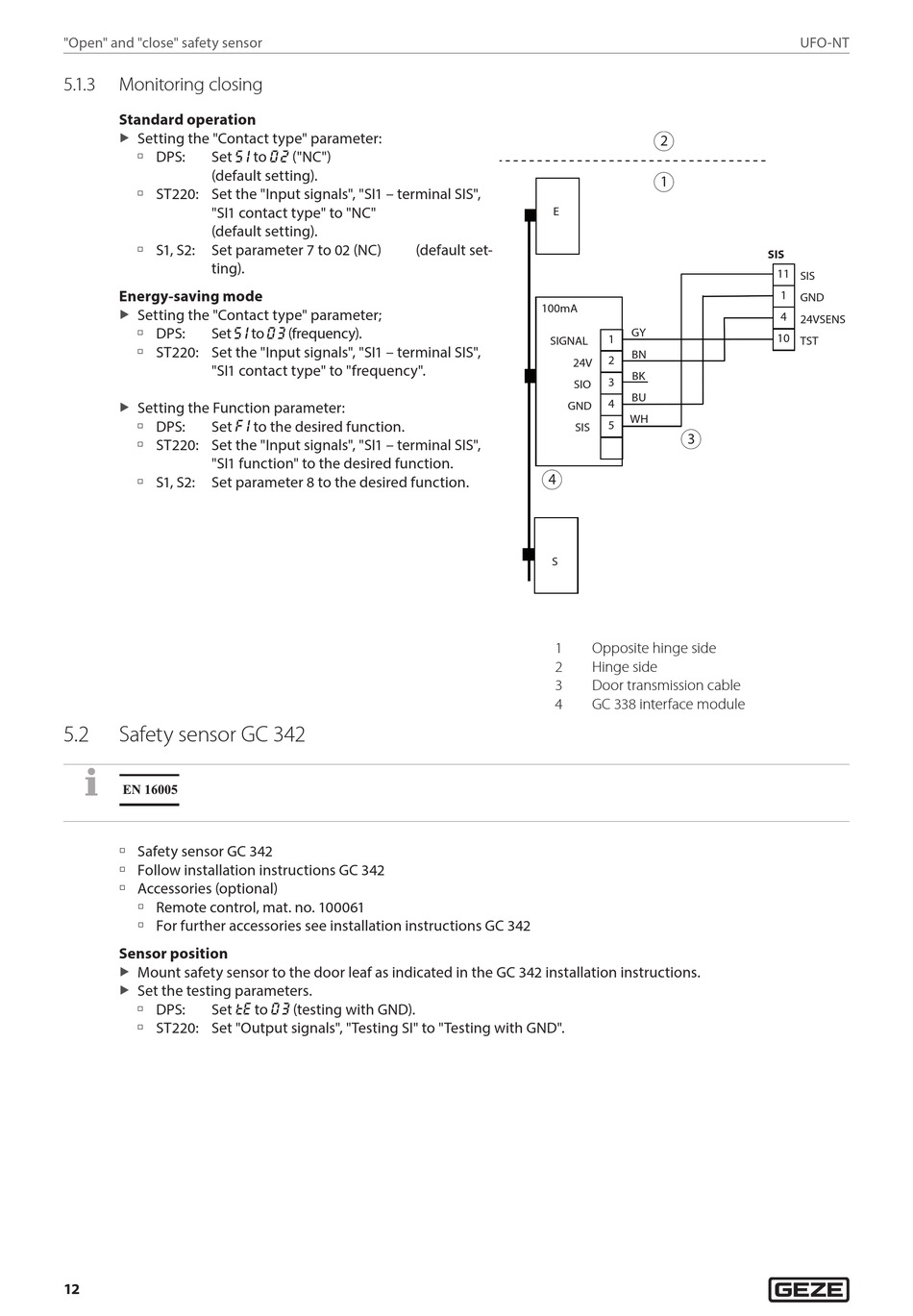

5. 1 .3 Monitoring closing
Standard operation
Setting the "Contact type" parameter:
X
à DPS: Set
s1
(default setting).
à ST220: Set the "Input signals", "SI1 – terminal SIS",
"SI1 contact type" to "NC"
(default setting).
à S1, S2: Set parameter 7 to 02 (NC)
ting).
Energy-saving mode
Setting the "Contact type" parameter;
X
à DPS: Set
s1
à ST220: Set the "Input signals", "SI1 – terminal SIS",
"SI1 contact type" to "frequency".
Setting the Function parameter:
X
à DPS: Set
f1
à ST220: Set the "Input signals", "SI1 – terminal SIS",
"SI1 function" to the desired function.
à S1, S2: Set parameter 8 to the desired function.
5.2 Safety sensor GC 342
à Safety sensor GC 342
à Follow installation instructions GC 342
à Accessories (optional)
à Remote control, mat. no. 100061
à For further accessories see installation instructions GC 342
Sensor position
Mount safety sensor to the door leaf as indicated in the GC 342 installation instructions.
X
Set the testing parameters.
X
à DPS: Set
Te
à ST220: Set "Output signals", "Testing SI" to "Testing with GND".
12
to ("NC")
0 2
(default set-
to (frequency).
0 3
to the desired function.
to (testing with GND).
0 3
2
1
E
100mA
GY
1
SIGNAL
BN
2
24V
BK
3
SIO
BU
4
GND
WH
5
SIS
3
4
S
1 Opposite hinge side
2 Hinge side
3 Door transmission cable
4 GC 338 interface module
UFO-NT
SIS
11
SIS
1
GND
4
24VSENS
10
TST
