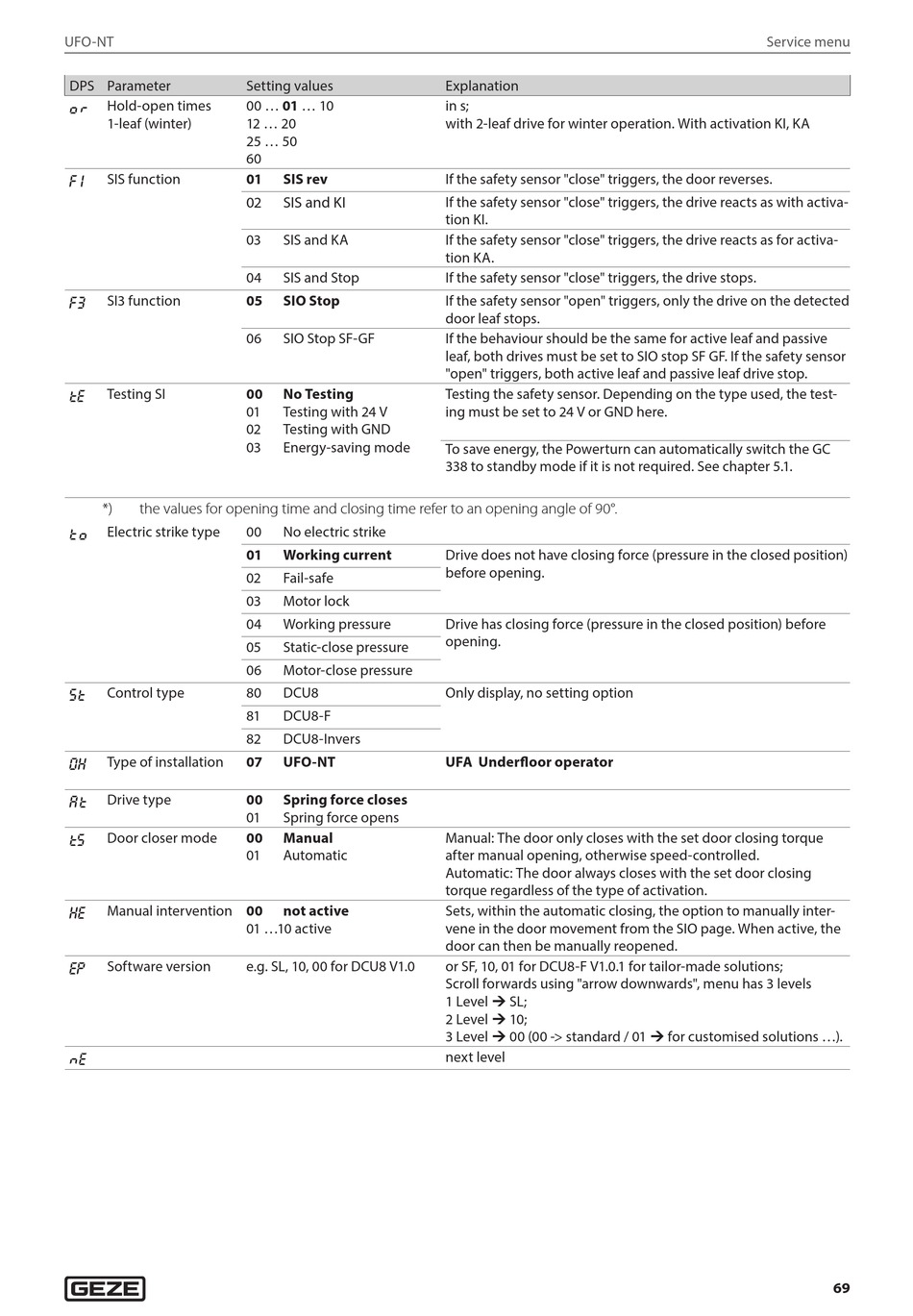

GEZE UFO-NT IP Wiring Diargam page 69

UFO-NT
DPS Parameter
Hold-open times
O ®
1-leaf (winter)
SIS function
f1
SI3 function
f3
Testing SI
Te
*) the values for opening time and closing time refer to an opening angle of 90°.
Electric strike type
TO
Control type
sT
Type of installation
oh
Drive type
a T
Door closer mode
Ts
Manual intervention 00
he
Software version
ep
N e
Setting values
00 ... 01 ... 10
12 ... 20
25 ... 50
60
01 SIS rev
02 SIS and KI
03 SIS and KA
04 SIS and Stop
05 SIO Stop
06 SIO Stop SF-GF
00 No Testing
01 Testing with 24 V
02 Testing with GND
03 Energy-saving mode
00 No electric strike
01 Working current
02 Fail-safe
03 Motor lock
04 Working pressure
05 Static-close pressure
06 Motor-close pressure
80 DCU8
81 DCU8-F
82 DCU8-Invers
07 UFO-NT
00 Spring force closes
01 Spring force opens
00 Manual
01 Automatic
not active
01 ...10 active
e.g. SL, 10, 00 for DCU8 V1.0
Explanation
in s;
with 2-leaf drive for winter operation. With activation KI, KA
If the safety sensor "close" triggers, the door reverses.
If the safety sensor "close" triggers, the drive reacts as with activa-
tion KI.
If the safety sensor "close" triggers, the drive reacts as for activa-
tion KA.
If the safety sensor "close" triggers, the drive stops.
If the safety sensor "open" triggers, only the drive on the detected
door leaf stops.
If the behaviour should be the same for active leaf and passive
leaf, both drives must be set to SIO stop SF GF. If the safety sensor
"open" triggers, both active leaf and passive leaf drive stop.
Testing the safety sensor. Depending on the type used, the test-
ing must be set to 24 V or GND here.
To save energy, the Powerturn can automatically switch the GC
338 to standby mode if it is not required. See chapter 5.1.
Drive does not have closing force (pressure in the closed position)
before opening.
Drive has closing force (pressure in the closed position) before
opening.
Only display, no setting option
UFA Underfloor operator
Manual: The door only closes with the set door closing torque
after manual opening, otherwise speed-controlled.
Automatic: The door always closes with the set door closing
torque regardless of the type of activation.
Sets, within the automatic closing, the option to manually inter-
vene in the door movement from the SIO page. When active, the
door can then be manually reopened.
or SF, 10, 01 for DCU8-F V1.0.1 for tailor-made solutions;
Scroll forwards using "arrow downwards", menu has 3 levels
1 Level  SL;
2 Level  10;
3 Level  00 (00 -> standard / 01  for customised solutions ...).
next level
Service menu
