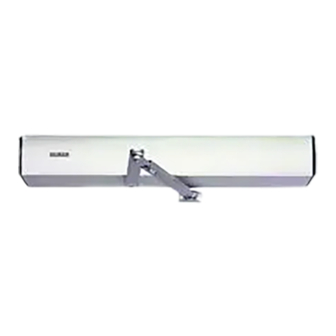

GEZE TSA 160 NT Manual
Hide thumbs
Also See for TSA 160 NT:
- Installation and service instructions manual (40 pages) ,
- Mounting and service instructions (32 pages)
Related Manuals for GEZE TSA 160 NT
Summary of Contents for GEZE TSA 160 NT
- Page 1 EN User manual TSA 160 NT F TSA 160 NT Z TSA 160 NT Invers TSA 160 NT Z-Invers TSA 160 NT-IS TSA 160 NT F-IS TSA 160 NT Z-IS TSA 160 NT-IS / TS TSA 160 NT Z-IS / -TS 135254-04...
-
Page 2: Table Of Contents
TSA 160 NT Contents Introduction................................3 Symbols and illustrations ....................................3 Product liability .........................................3 Special cases ........................................3 More detailed information ....................................3 Terms .............................................4 Fundamental safety precautions ........................6 For the user .........................................6 For the service technician .....................................6 Intended use........................................6 Description .................................7 Types of installation and versions ................................7 Set-up ............................................7... -
Page 3: Introduction
à special function settings (parameters) à special software Please contact the service technician responsible for further information. More detailed information Information about commissioning and service can be found in the following documents: à wiring diagram TSA 160 NT à installation instructions TSA 160 NT... -
Page 4: Terms
In the event of a power failure for 2-leaf door systems, the closing sequence is controlled mechanically with TSA 160 NT-F-IS. The door leaves are closed by means of the power stor- age of the drives, with the active leaf being kept open by the integrated mechanical closing sequence control unit at approximately 30°... - Page 5 TSA 160 NT Introduction Term Explanation Electric strike Fail-secure electric strike Available as AC or DC electric strike version. When the door drive is activated, the electric strike is switched on by the control unit of the door drive provided the door is in the closing position.
-
Page 6: Fundamental Safety Precautions
à Use a customer-accessible 16-A overload cut-out that disconnects the system from the power supply as the line-side disconnecting device. Intended use The TSA 160 NT swing door drives are designed for the automatic opening and closing of single action swing doors. The above mentioned door drive is suitable à solely for use in dry rooms à... -
Page 7: Description
à The door drive can be fitted in transom installation on the lintel on the hinge side or opposite hinge side. à The door drive is available as 1-leaf or 2-leaf version. à The TSA 160 NT F-IS and TSA 160 NT IS/TS systems can only be fitted in transom installation. Set-up The door system shown is only a schematic diagram. -
Page 8: Overview Of The Modes Of Operation
à Position II Automatic à Position 0 Night/Off à Position I Hold open. Special cases (e.g. special circuiting) may occur during the operation of the GEZE door drives. Behaviour may differ. If this is the case, please ask the service technician responsible. - Page 9 TSA 160 NT Description 3.4.2 Keypad programme switch TPS (optional) à Can be connected additionally to the internal programme switch (19). à Setting of the mode of operation with the keypad programme switch is only possible when the internal pro- gramme switch is set to the 0 position.
-
Page 10: Door In Normal Operation
Description TSA 160 NT 3.4.4 Display program switch (optional) à Can be connected additionally to the internal programme switch (19). If a dot appears in the bottom right-hand part of the display, maintenance is due. If a dot appears in the middle of the display, the door has not yet been fully initialised after the mains voltage has been switched on. -
Page 11: Operation
TSA 160 NT Operation Which switch/push button? What does the switch/push button do? Switch function The automated door can be activated using the switch function. Normal switch function: à Switch contact opens the door and the door remains in the open position. - Page 12 Operation TSA 160 NT 4. 1 .2 Selecting the mode of operation using the keypad programme switch Select the mode of operation required using the push buttons The LED of the current mode of operation lights up. Selecting mode of operation with additional key switch Activate the key switch briefly.
-
Page 13: Troubleshooting
Select “Automatic” mode of operation Door locked mechanically Unlock the door Electric strike does not release Notify a service technician Fire alarm active (TSA 160 NT F only) Activate reset push button Drive defective Notify a service technician Door does not close... -
Page 14: Cleaning And Maintenance
Maintenance must be carried out at least once a year or according to the maintenance display on the display programme switch. Installation, maintenance and repair work must be performed by experts authorised by GEZE. If a dot appears in the bottom right-hand part of the display, maintenance is due. -
Page 15: Inspection By An Expert
GEZE offers the following services: Inspection and operational checks of all safety and control equipment in compliance with the requirements in the test log for power-operated windows, doors and gates;... - Page 16 E-Mail: danmark.se@geze.com Tel. +49 (0) 7152 203 594 www.geze.at www.geze.hu www.geze.dk E-Mail: leonberg.de@geze.com Baltic States Iberia Singapore GEZE GmbH Baltic States office GEZE Iberia S.R.L. GEZE (Asia Pacific) Pte, Ltd. GEZE GmbH E-Mail: office-latvia@geze.com E-Mail: info@geze.es E-Mail: gezesea@geze.com.sg Niederlassung Süd-Ost www.geze.com www.geze.es...
