Altronix SAV Series Installation Manual page 8

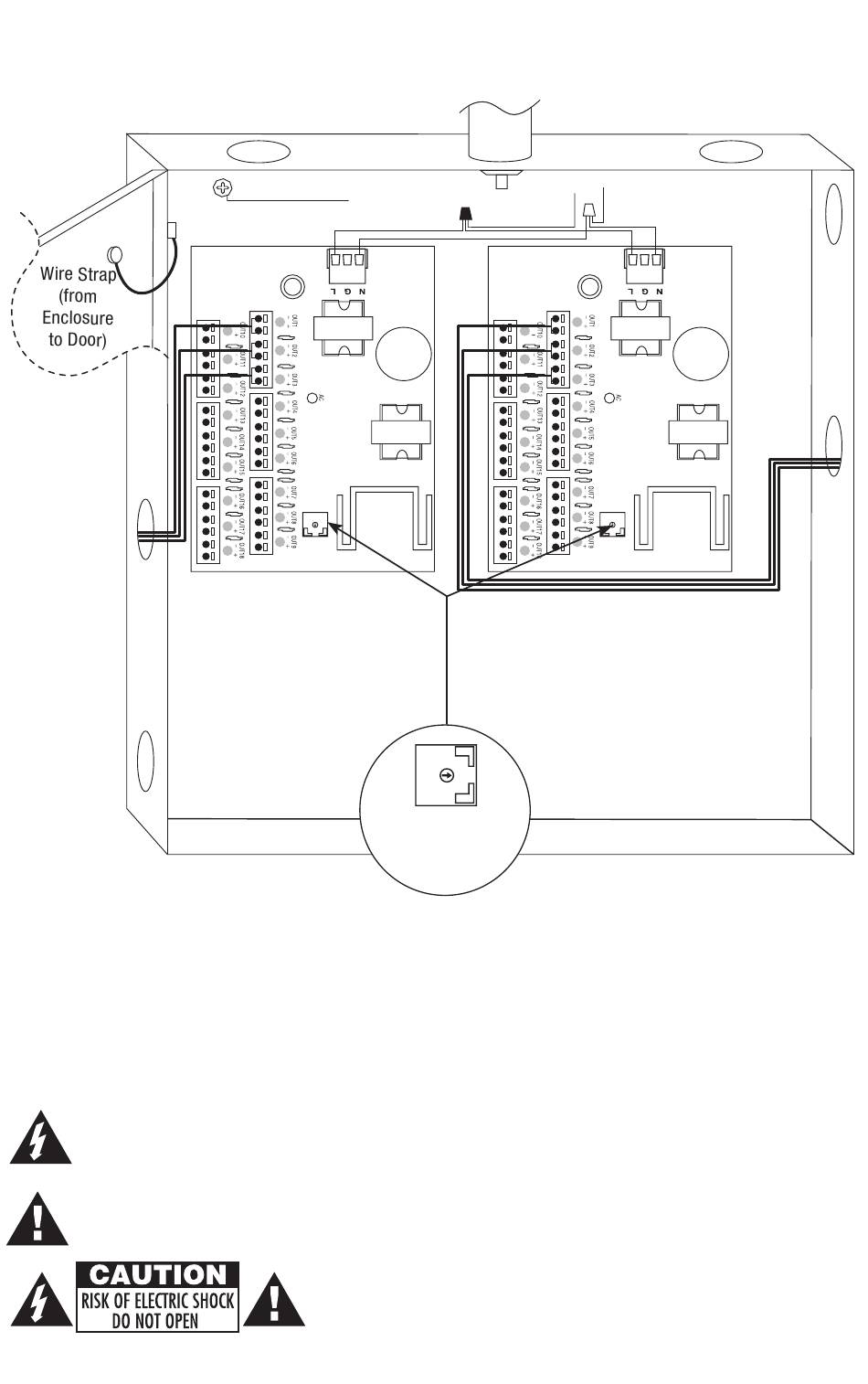

Fig. 6 - Sav36D
Door
Keep power-limited wiring separate from non power-limited.
Use minimum 0.25" spacing.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user
to the presence of an insulated DANGEROUS VOLTAGE within the product's enclosure that may be of
sufficient magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of impor-
tant operating and maintenance (servicing) instructions in the literature accompanying the appliance.
- 8 -
power mains non power-limited Class 1
Green Lead
12VDC power outputs
(For wiring utilize knockouts on
the left hand side of enclosure)
Class 2 not wet, Class 3 wet,
wiring to be used.
Fig. 6a
CAUTION: To reduce the risk of electric shock do not open enclosure.
There are no user serviceable parts inside.
Refer servicing to qualified service personnel.
115VAC, 60Hz / 230VAC, 50Hz
Black Lead
12VDC power outputs
(For wiring utilize knockouts on
the right hand side of enclosure)
Class 2 not wet, Class 3 wet,
wiring to be used.
Voltage
Adjustment
White Lead
Sav4/9/18/182/36D Installation Guide
