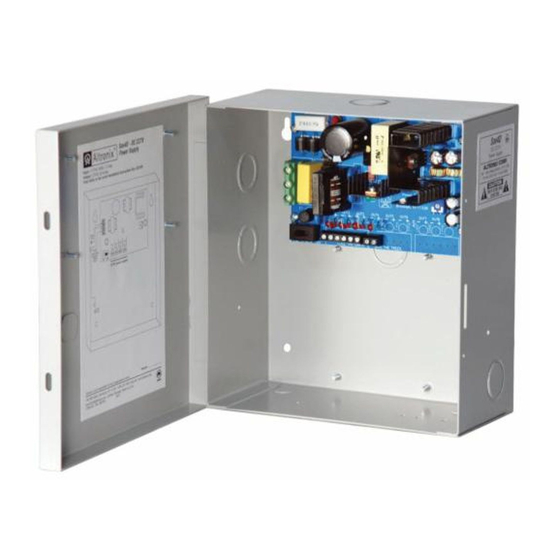

Sav Series
DC CCTV Power Supplies
Models Include:
Sav4D
- 12VDC @ 5A
- Four (4) Class 2 Rated PTC Protected
Power-Limited Outputs.
Sav9D
- 12VDC @ 5A
- Nine (9) Class 2 Rated PTC Protected
Power-Limited Outputs.
Sav18D
- 12VDC @ 5A
- Eighteen (18) Class 2 Rated PTC Protected
Power-Limited Outputs.
Installation Guide
Rev. 070709
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
™
Sav182D
- 12VDC @ 11A
- Eighteen (18) Class 2 Rated PTC Protected
Power-Limited Outputs.
Sav36D
- 12VDC @ 11A
- Thirty-Six (36) Class 2 Rated PTC Protected
Power-Limited Outputs
More than just power.
TM
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Altronix SAV Series
Summary of Contents for Altronix SAV Series
- Page 1 ™ Sav Series DC CCTV Power Supplies Models Include: Sav4D Sav182D - 12VDC @ 5A - 12VDC @ 11A - Four (4) Class 2 Rated PTC Protected - Eighteen (18) Class 2 Rated PTC Protected Power-Limited Outputs. Power-Limited Outputs. Sav9D...
-
Page 2: Specifications
Overview: Altronix Sav Power Supplies provide 12VDC distributed via four (4), nine (9), eighteen (18), thirty-six (36) Class 2 Rated PTC protected power-limited auto-resettable outputs for powering surveillance cameras and other 12VDC devices. Sav Reference Chart: Agency UL Listings and... -
Page 3: Maintenance
Sav182D and Sav36D: Connect unswitched AC power 115VAC, 60Hz or 230VAC, 50Hz to black and white flying leads, which are factory installed. Connect main incoming ground to the provided green grounding conductor lead. To install 3-wire line cord with integral strain relief (supplied) refer to pages 9 and 10. 3. - Page 4 Fig. 2 - Sav4D 115VAC, 60Hz/ 230VAC, 50Hz power mains non power- limited Class 1 Green Lead Fig. 2a Voltage Adjustment 12VDC power outputs (For wiring utilize knockouts on the right hand side of enclosure) Class 2 not wet, Class 3 wet, wiring to be used.
- Page 5 Fig. 3 - Sav9D 115VAC, 60Hz/ 230VAC, 50Hz power mains non power- limited Class 1 Green Lead Fig. 3a Voltage Adjustment 12VDC power outputs (For wiring utilize knockouts on the right hand side of enclosure) Class 2 not wet, Class 3 wet, wiring to be used.
- Page 6 Fig. 4 - Sav18D 115VAC, 60Hz/ 230VAC, 50Hz power mains non power- limited Class 1 Green Lead Fig. 4a Voltage Adjustment 12VDC power outputs (For wiring utilize knockouts on the right hand side of enclosure) Class 2 not wet, Class 3 wet, wiring to be used.
- Page 7 Fig. 5 - Sav182D 115VAC, 60Hz / 230VAC, 50Hz power mains non power-limited Class 1 Green Lead Black Lead White Lead Door 12VDC power outputs 12VDC power outputs (For wiring utilize knockouts on (For wiring utilize knockouts on the left hand side of enclosure) the right hand side of enclosure) Class 2 not wet, Class 3 wet, Class 2 not wet, Class 3 wet,...
- Page 8 Fig. 6 - Sav36D 115VAC, 60Hz / 230VAC, 50Hz power mains non power-limited Class 1 Green Lead Black Lead White Lead Door 12VDC power outputs 12VDC power outputs (For wiring utilize knockouts on (For wiring utilize knockouts on the left hand side of enclosure) the right hand side of enclosure) Class 2 not wet, Class 3 wet, Class 2 not wet, Class 3 wet,...
- Page 9 Installation Instructions for 3-wire Line Cord: Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, and with all local codes and authorities having jurisdiction. Product is intended for indoor use only. The line cord option should be used when the equipment needs to be removed for maintenance or servic- ing.
- Page 10 Wiring AC Line Cord for Models SAV4D, SAV9D, and SAV18D: 1. Connect black lead to terminal marked [L]. Connect green lead to terminal marked [G]. Connect white lead to terminal marked [N] (Fig. 11). Fig. 11 White Lead Green Lead Black Lead Wiring AC Line Cord for Models SAV182D and SAV36D: 1.
- Page 11 Enclosure Dimensions for Sav4D, Sav9D, and Sav18D: 8.5” x 7.5” x 3.5” (215.9mm x 190.5mm x 88.9mm) 7.25” (184.2mm) 3.625” (92mm) 1.25” (31.8mm) 1.25” 0.6” (15.2mm) 0.6” (15.2mm) (31.75mm) 6.05” (153.7mm) 1.125” 1.125” (28.6mm) (28.6mm) 1” 1” (25.4mm) (25.4mm) 6.05” (153.7mm) 1.25”...
- Page 12 (25.4mm) (25.4mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. IISAV4D/SAV9D/SAV18D/SAV182D/SAV36D H16U MEMBER - 12 -...
