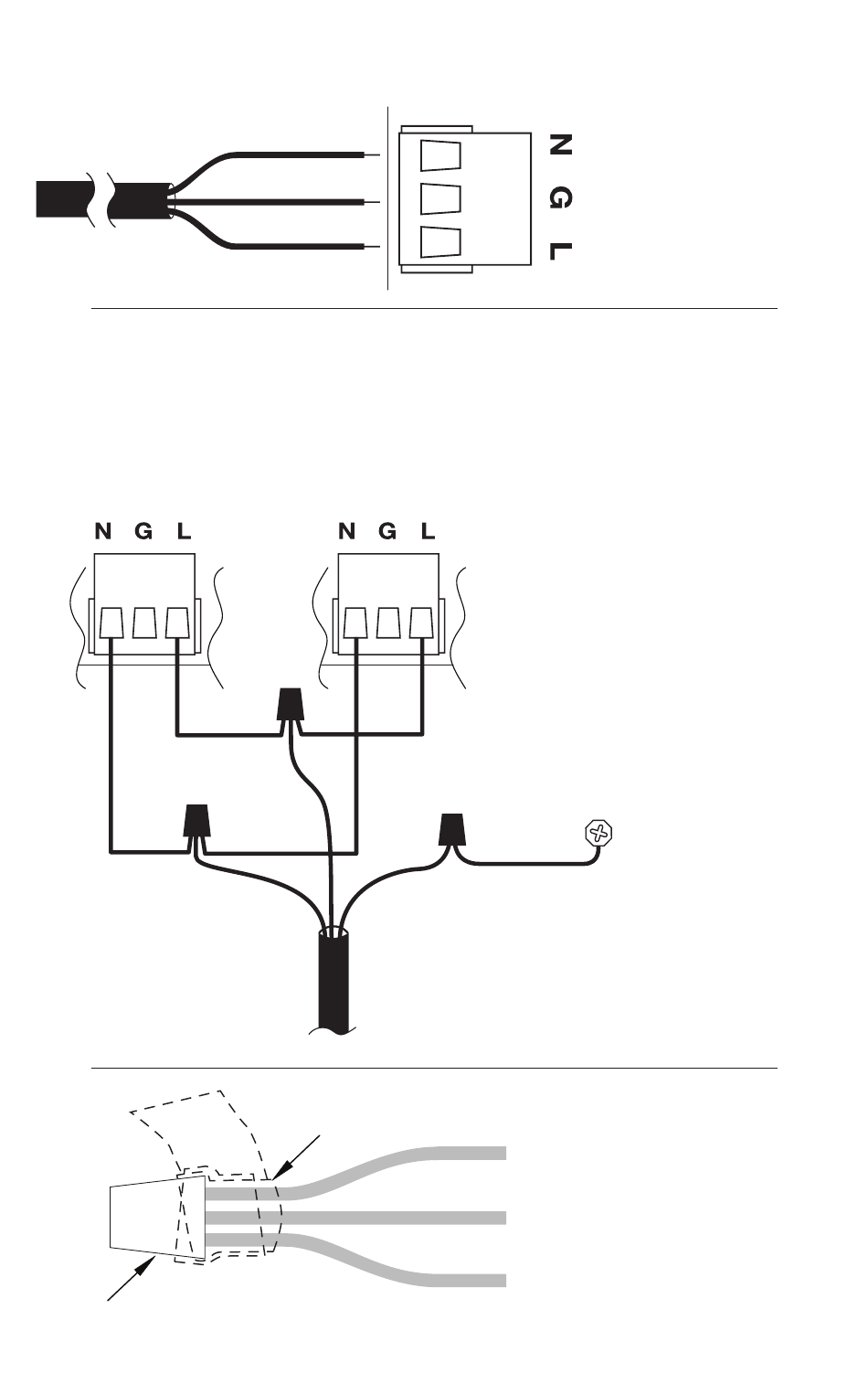

Wiring AC Line Cord for Models SAV4D, SAV9D, and SAV18D:
1. Connect black lead to terminal marked [L]. Connect green lead to terminal marked [G].
Connect white lead to terminal marked [N] (Fig. 11).
Fig. 11
Wiring AC Line Cord for Models SAV182D and SAV36D:
1. Splice black lead from line cord to black leads from each power supply board utilizing wire nut (Fig. 12).
Splice green lead from line cord to green flying lead in the enclosure utilizing wire nut (Fig. 12).
Splice white lead from line cord to white leads from each power supply board utilizing wire nut (Fig. 12).
Note: To prevent loosening of splices secure each wire nut separately with a few wraps of electrical tape
(Fig. 13).
Fig. 12
White
Lead
Fig. 13
Wire
Nut
- 10 -
White Lead
Green Lead
Black Lead
Black
Lead
Electrical
Tape
To AC
Line cord
Green Lead
