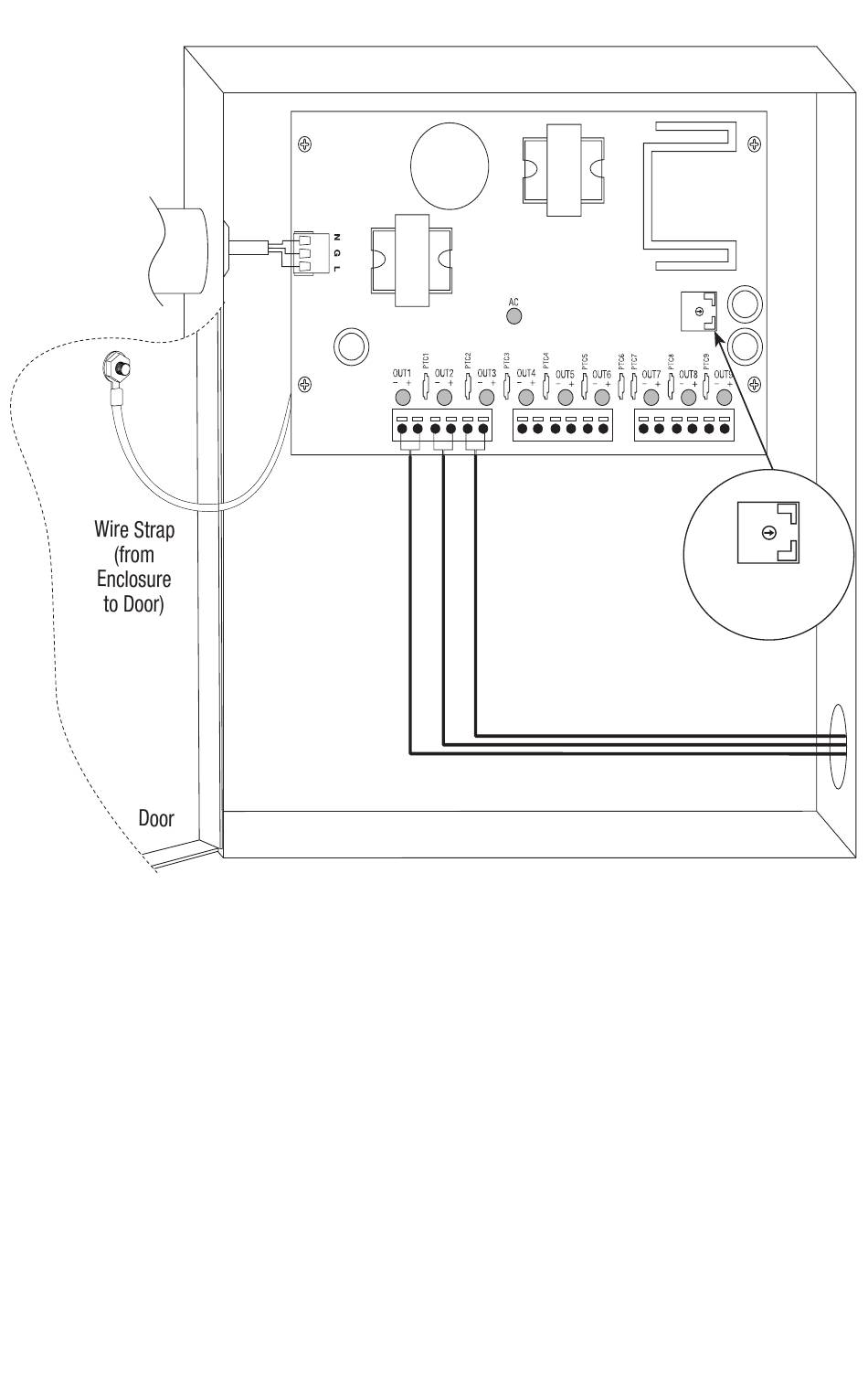

Fig. 3 - Sav9D
115VAC, 60Hz/
230VAC, 50Hz
power mains
non power-
limited
Class 1
Sav4/9/18/182/36D Installation Guide
Green
Lead
Keep power-limited wiring separate from non power-limited.
Use minimum 0.25" spacing.
Fig. 3a
12VDC power outputs
(For wiring utilize knockouts on the
right hand side of enclosure)
Class 2 not wet, Class 3 wet,
wiring to be used.
Voltage
Adjustment
- 5 -
