- Page 1 Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com Excellent Integrated System Limited Excellent Integrated System Limited Stocking Distributor Stocking Distributor Click to view price, real time Inventory, Delivery & Lifecycle Information: Click to view price, real time Inventory, Delivery &...

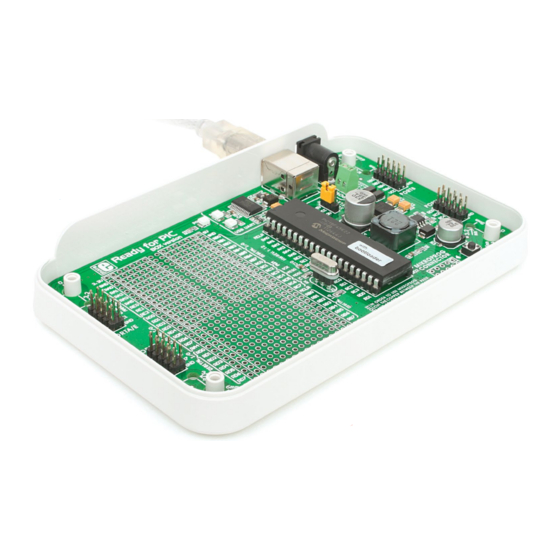

- Page 2 Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com Ready with for PIC ® ™ DIP40 socket Best solution for fast and simple development of applications using 40-pin PIC MCUs.
- Page 3 Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com TO OUR VALUED CUSTOMERS I want to express my thanks to you for being interested in our products and for having confidence in MikroElektronika.
-
Page 4: Table Of Contents
Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com Table of contents Introduction step 5 – Uploading .HEX file Package contains step 6 – Progress bar Key features step 7 – Finishing upload 1. -
Page 5: Introduction
Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com Introduction Ready for PIC Board is the best solution ® for fast and simple development of various microcontroller applications. The board... -
Page 6: Package Contains
Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com Package contains Damage resistant protective box Ready for PIC board ® User’s guide and schematics USB cable, one 2x5 header... -
Page 7: Key Features
Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com Key features System specification Power LED indicator power supply UART communication LEDs (RX.TX) Via AC/DC connector 7-23V AC FTDI chip... - Page 8 Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com Page 7...
-
Page 9: Power Supply
Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com 1. Power supply Figure 1-1: Figure 1-2: Figure 1-3: USB power supply AC/DC adapter power supply screw terminals power supply... - Page 10 Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com VCC- 5V VCC- USB REG1 VCC- 5V VCC- 3.3V Vout VCC- 5V MC33269DT3.3 10uF MBRS140T3 10uF POWER FERRI TE 3.3V VOLTAGE REGULATOR...
-
Page 11: Programming With Mikrobootloader
You can program the microcontroller with the bootloader that is preprogrammed into the device by default. To transfer .hex note file from a PC to the MCU you need the bootloader software Before starting mikroBootloader, connect Ready for PIC to a ® (mikroBootloader) which can be downloaded from: PC using the USB cable provided with the package http://www.mikroe.com/eng/downloads/get/1808/... -
Page 12: Identifying Device Com Port
Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com Identifying device COM port step 1 – Choosing COM port Figure 2-2: Identifying COM port Figure 2-3: Choosing COM port... -
Page 13: Step 2 - Establishing Connection
2 - Establishing connection step 3 - Browsing for .HEX file Figure 2-4: Connecting with mikroBootloader Figure 2-5: Browse for HEX Press the Reset button on the Ready for PIC Click the Browse for HEX button and from a board ®... -
Page 14: Step 4 - Selecting .Hex File
Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com step 4 - Selecting .HEX file step 5 - Uploading .HEX file Figure 2-6: Locating and selecting .hex file Figure 2-7: Begin uploading Select the .HEX file using the Open dialog win-... -
Page 15: Step 6 - Progress Bar
Figure 2-9: Restarting MCU You can monitor .HEX file uploading via progress bar Click OK after the uploading process is finished Press the Reset button on the Ready for PIC ® board and wait for 5 seconds. Your program will run... -
Page 16: Programming With Mikroprog ™ Programmer
Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com 3. Programming with mikroProg programmer ™ The board is equipped with mikroProg connector pads, ™ which allow you to program the microcontroller using external mikroProg programmer. - Page 17 Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com Figure 3-2: cutting copper Figure 3-3: placing 2x5 Figure 3-4: soldering 2x5 Figure 3-5: Connecting between pads male header male header on the pads...
- Page 18 Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com DIP 40 VCC- MCU VCC- MCU MCLR-MCU RB7-MCU RB6-MCU VCC- MCU 22pF OSC1 8 MHz RB6-MCU OSC2 RB7-MCU 22pF MCLR-MCU...
-
Page 19: Usb-Uart
Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com 4. USB-UART Fast on-board FTDI chip allows Ready for PIC to communicate ® ® with a PC or other UART devices using a USB-UART connection. USB-B connector (CN1) is used for connecting the USB cable. -
Page 20: Prototyping Area
Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com 5. Prototyping area DATA BUS Figure 5-2: GREEN YELLOW schematic of three LEDs connected to microcontroller pins as shown in Figure 5-1... -
Page 21: Pin Headers And Connection Pads
Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com 6. Pin headers and connection pads Each microcontroller pin is available for further connections through four on-board 2x5 connection headers and two 1x28 connection pads. - Page 22 Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com VCC- 5V VCC- 3.3 DIP 40 VCC- MCU VCC- MCU MCLR CN36 CN38 RC3-SCK RC4-SDI RC5-SDO RC6-TX RC7-RX CN37 CN39...
-
Page 23: Reset Button
Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com 7. Reset button VCC- 5V DIP 40 VCC- MCU VCC- MCU MCLR VCC- MCU VCC- MCU 100nF 100nF MCLR OSC1... -
Page 24: Integrating With The Casing
Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com 8. Integrating with the casing Figure 8-1: Figure 8-2: Figure 8-3: Place the board into the bottom part of Wind screws into inner screw holes Place cover casing plastic and wind the casing. -
Page 25: Dimensions
Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com 9. Dimensions (510 mils) (1236.4 mils) 12.95 mm 31.41 mm (100 mils) (360 mils) (701.5 mils) 2.54 mm 9.14 mm 17.81 mm... - Page 26 Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com Notes: Page 25...
- Page 27 Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com Notes: Page 26...
- Page 28 No part of this manual, including product and software described herein, may be reproduced, stored in a retrieval system, translated or transmitted in any form or by any means, without the prior written permission of MikroElektronika. The manual PDF edition can be printed for private or local use, but not for distribution.
- Page 29 Distributor of MikroElektronika: Excellent Integrated System Limited Datasheet of MIKROE-766 - BOARD DEVELOPMENT READY PIC Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com If you want to learn more about our products, please visit our website at www.mikroe.com If you are experiencing some problems with any of our products or just need additional information, please place your ticket at www.mikroe.com/support...
