4.5

Registers Tab

The Registers tab allows for user interaction with the HDC2022 device onboard the EVM at the register,
bit, and bitfield level.
The Auto read drop-down box configures the rate of polling the register contents. When Auto-Read is off,
it is necessary to click Read Register to fetch the contents of the current register. Read All Registers can
be used to fetch the contents of all registers at once.
The Write Register buttons are disabled when the drop-down next to these buttons is set to immediate
mode. Immediate mode will trigger a write operation each time a register is modified. When deferred mode
is selected, the write register button is enabled, and write operations will be performed only when the write
register button is clicked. These settings give the user control over I2C bus activity, and enable individual
transactions which can be easily observed via oscilloscope, logic analyzer, or bus-sniffing device.
SNIU039 – December 2019
Submit Documentation Feedback

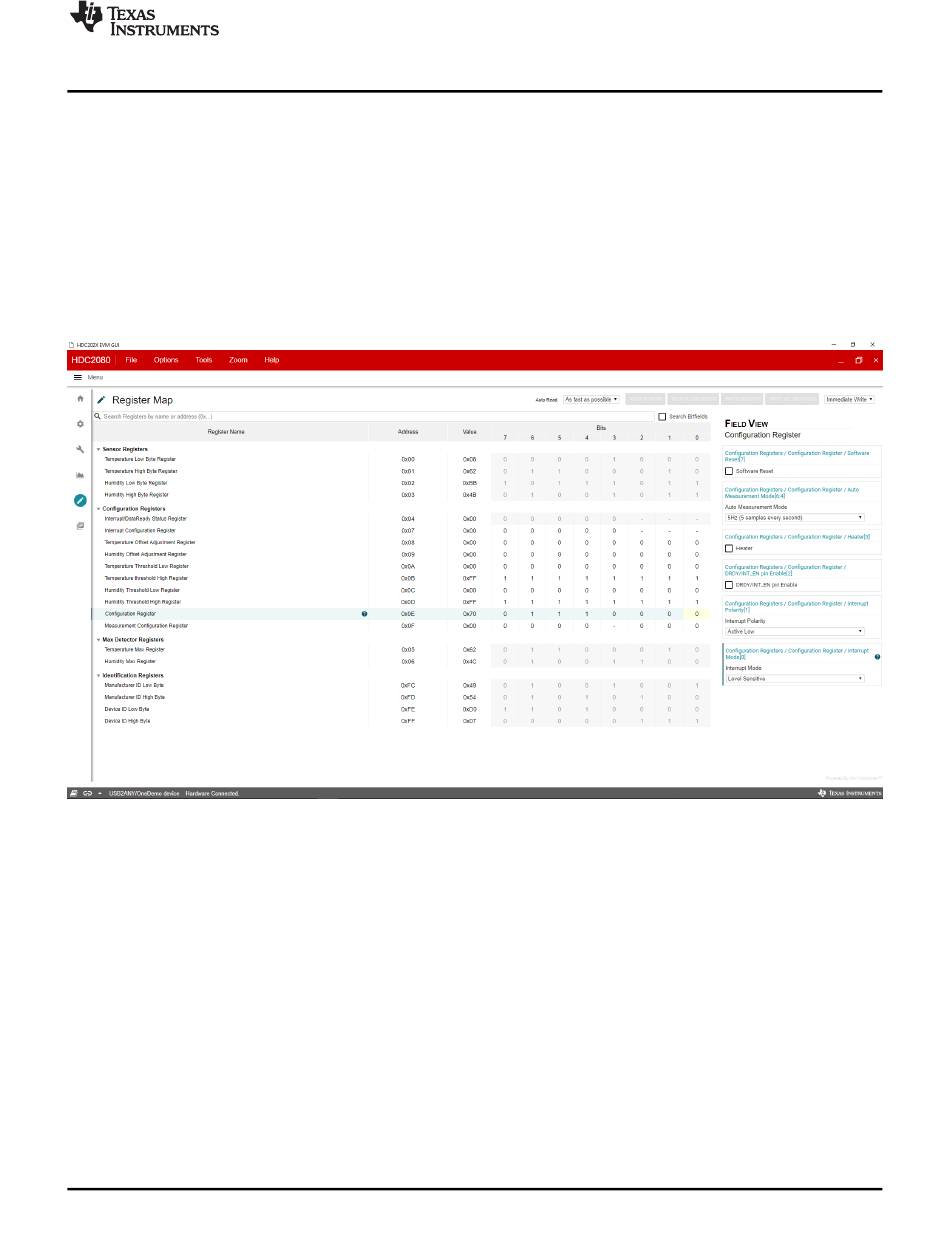

Figure 8. Register Tab of HDC2022EVM GUI
