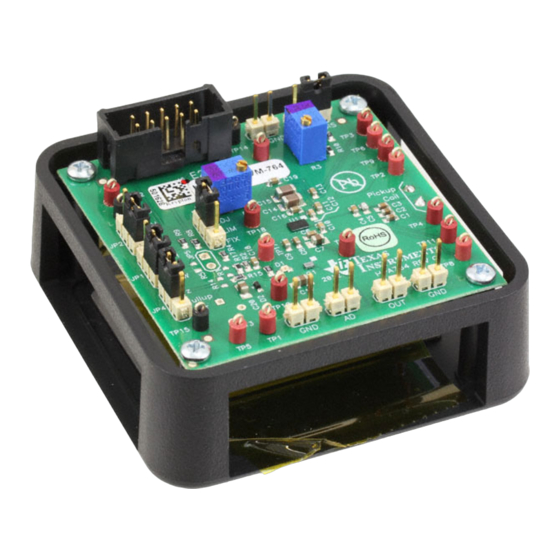

bq51013xEVM-764 Evaluation Module (WCSP Package)
The bq51013xEVM (HPA764-001 and HPA764-003) wireless power receiver evaluation kit from TI is a
high-performance, easy-to-use development kit for the design of wireless power solutions. It helps
designers to evaluate the operation and performance of the bq51013A and bq51013B, 5-V power supply
for wireless power transfer. The bq51013A and bq51013B devices provide the AC/DC power conversion
and regulation while integrating the digital control required to comply with the Qi communication protocol.
The kit speeds up the development of end-use applications.
