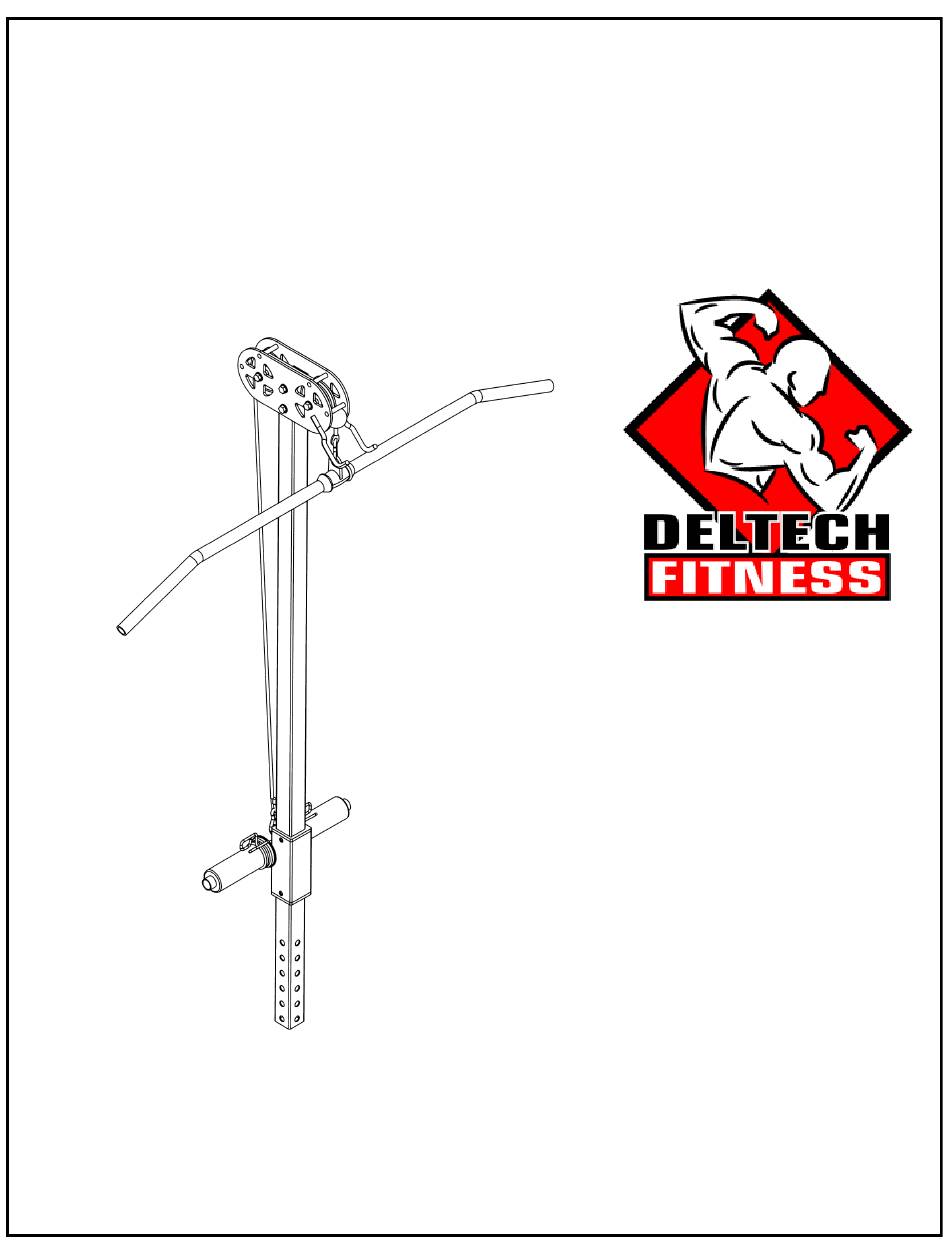

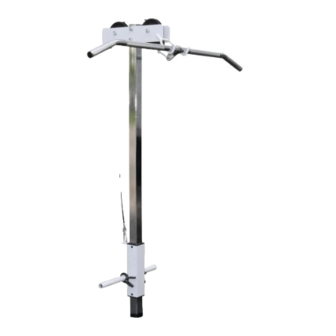

- Page 1 DF1200 LAT ATTACHMENT Assembly Manual (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 2 PULLEY SNAP HOOK QTY 4 QTY 8 QTY 4 QTY 2 QTY 2 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 3 CABLE INSTALLATION FRONT COVER REMOVED FOR CLARITY LAY CABLE (E) INSIDE PULLEY FRAME, MAKING SURE THAT THE BALL-STOP END IS FACING TOWARDS THE FRONT WHERE THE BAR HOOKS ARE LOCATED. PULLEY INSTALLATION INSTALL PULLEYS (I) FROM THE BOTTOM USING M10x75MM BOLTS (K), M10 WASHERS (L), AND M10 LOCK NUTS (M).
- Page 4 WEIGHT CARRIAGE INSTALLATION AT THIS POINT IT IS EASIER TO COMPLETE ASSEMBLY IF YOU INSTALL THE FRAME TUBE (B) INTO THE BENCH YOU ARE USING IT ON. INSTALL THE WEIGHT CARRIAGE (C) ONTO THE FRAME TUBE (B) AND LET IT SLIDE ALL THE WAY DOWN.
- Page 5 PULLEY ASSEMBLY INSTALLATION INSTALL THE PULLEY ASSEMBLY (A) ONTO THE FRAME TUBE (B) USING M10x75MM BOLTS (K), M10 WASHERS (L), AND M10 LOCK NUTS (M).
- Page 6 PULLEY ASSEMBLY INSTALLATION CONNECT THE CABLE TO THE WEIGHT CARRIAGE AND LAT BAR (D) USING SNAP HOOKS (J).
- Page 7 OLYMPIC ADAPTERS WHEN USING WITH OLYMPIC PLATES, INSTALL OLYMPIC ADAPTERS (F) AND SECURE IN PLACE WITH HEX WRENCH. USE OLYMPIC SPRING COLLARS (G) TO HOLD PLATES IN PLACE. MAKE SURE ALL THE BOLTS ARE TIGHT BEFORE USE. REMEMBER TO CHECK THEM PERIODICALLY TO MAKE SURE THEY ALWAYS STAY TIGHT.
- Page 8 ADJUSTMENT RAISE AND LOWER THE BENCH BY TURNING THE PULL PIN AND PULLING IT OUT TO ADJUST UP OR DOWN. WHEN ADJUSTED MAKE SURE THE PULL PIN IS SECURE IN ADJUSTMENT HOLE THEN TURN TO TIGHTEN. (NOTE: YOU MUST LOOSEN THE PULL PIN OR THE BENCH WILL NOT ADJUST) SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT.
