AKCP sensorProbe2 User Manual page 5

SP2/SP4/SP8/SP8-X20 Manual
SP4 & SP8 LED's
The LED's on the sensorProbe4 and sensorProbe8 will display a solid green when a sensor is
connected and in a normal state. The red LED's will blink slowly when a sensor goes into a
warning state and will blink rapidly when the senor enters a critical state. The red LED's will
remain solid if the sensor is disconnected, or the sensor is in an error state.

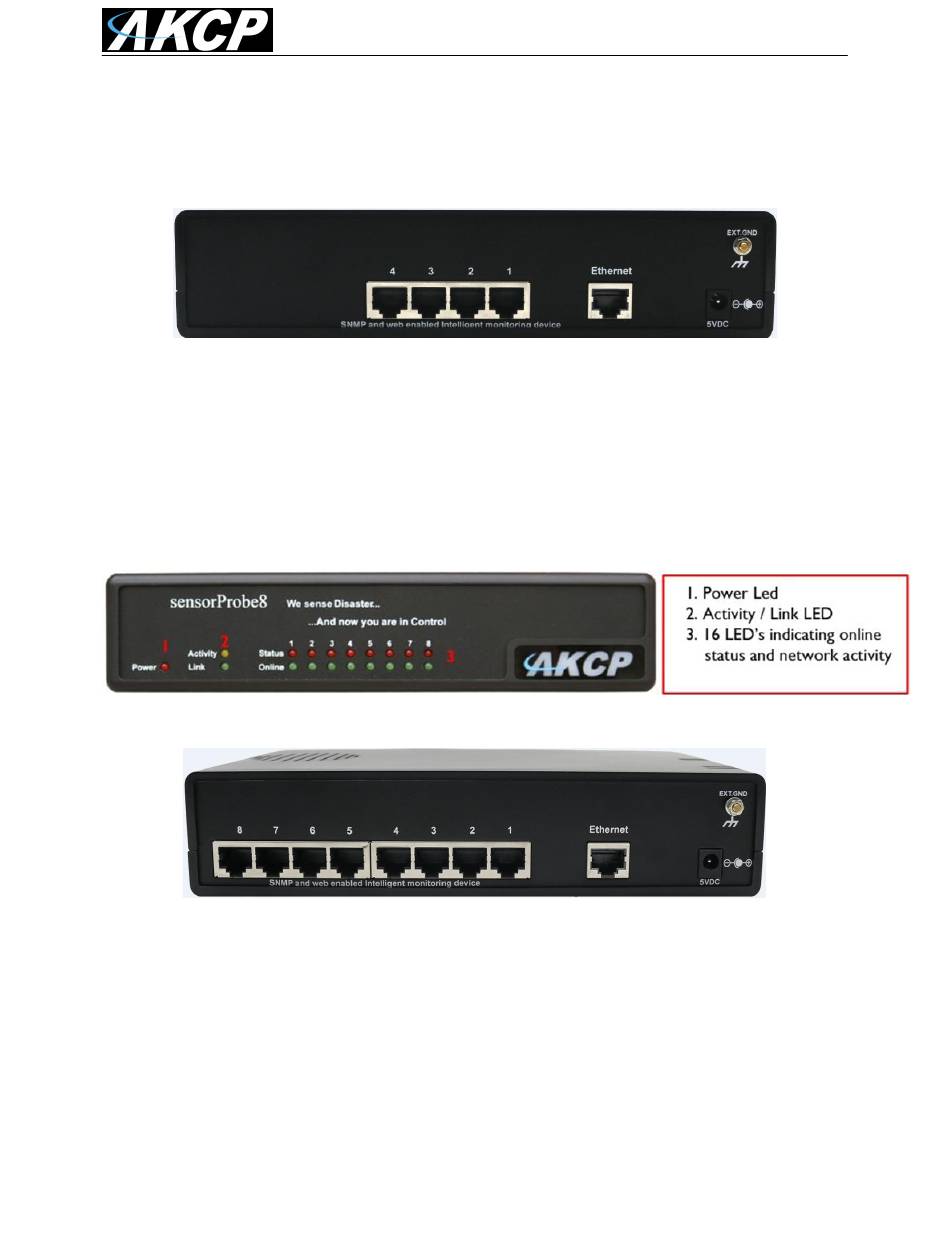

sensorProbe4 Back View
The SP4 back view shows the intelligent sensor ports 1 through 4. Standard 10/100MB Ethernet
Port. 5VDC AC power adapter input and External Grounding Stud.
Grounding the Units: AKCP highly recommends you properly ground the units using the GND
stud to a proper grounded location on your server cabinet or other grounded position.
The purpose of the grounding is to protect the units from having problems when operating in a
very electrically noisy environment. Strong "Electromagnetic Interference's" or EMI can disturb
the units proper functionality and also can damage the units.
sensorProbe8 Front View
sensorProbe8 Rear View
The SP4 back view above shows the intelligent sensor ports 1 through 8. Standard 10/100MB
Ethernet Port. 5VDC AC power adapter input and External Grounding Stud.
SP2, SP4 and SP8 Memory & System Information
The sensorProbe2, sensorProbe4 and sensorProbe8 contain the following memory devices:
Microcontroller 8KB static ram – volatile – user and system information.
Microcontroller 4KB EEPROM – nonvolatile – user and system information.
Microcontroller 256KB Flash – nonvolatile – system information.
32KB static ram – volatile – user and system information.
1MB Flash - nonvolatile - system information.
Updated until firmware 476 - 5 -
