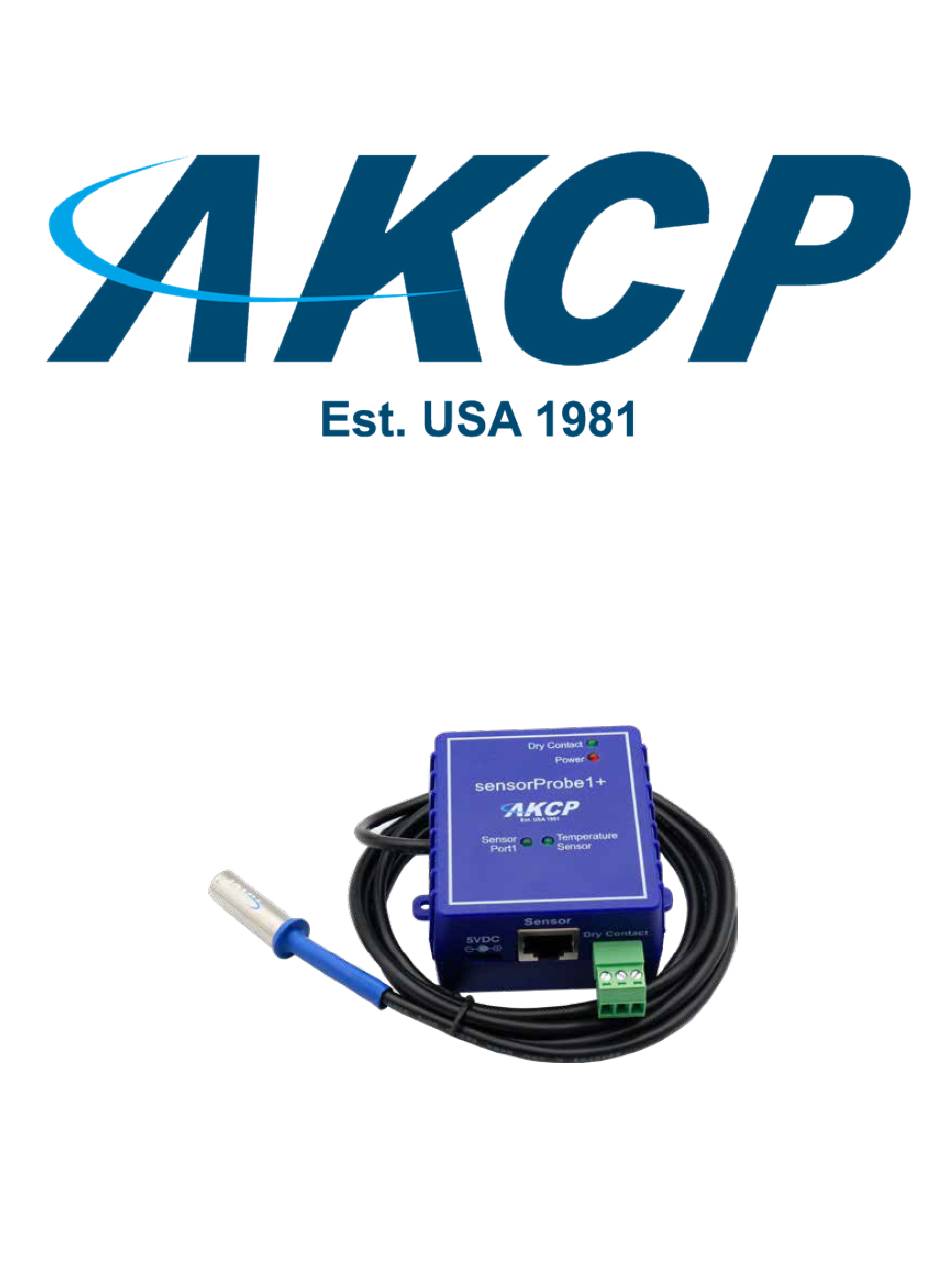

- Page 1 SP1+ QuickStart Manual Copyright © 2022, AKCP...

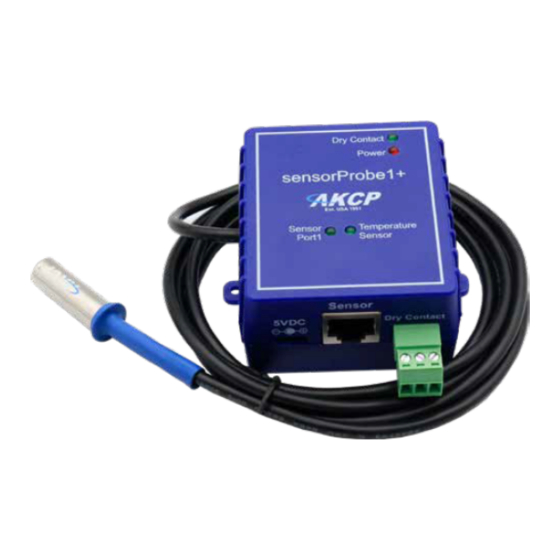

- Page 2 What is the SP1+? The SP1+ is a compact monitoring device. It has a hard wired temperature sensor and a dry contact. There is an RJ45 sensor port that supports connecting AKCP sensors. Note that SP1+ doesn’t support a modem option.
- Page 3 Dual Power Inputs SP1+ can be powered with dual inputs. PoE comes as standard, and an additional AC or DC source can provide primary power with PoE providing backup power. Or, in the absence of PoE dual inputs are available through our external DC-DC conversion box.
- Page 4 LED information for SP1+ units 1st LED (near power LED): status of Dry Contact 2nd LED: status of Embedded Temperature Sensor 3rd LED: status of the RJ45 sensor plugged in The Power/Ethernet LED will become red if there’s no network connection, and blinking green (according to LAN activity) when the connection is normal.
- Page 5 - 7 .. 12 seconds: Reset password Dry Contact LED fast blinking, Sensor Port 1 and Temperature Sensor LEDs blinking slow. - 12 .. 17 seconds: Reset database Dry Contact LED fast blinking, Sensor Port 1 and Temperature Sensor LEDs blinking much slower, then after releasing Reset button: Sensor Port 1 and Temperature Sensor LEDs alternately blinking.
- Page 6 Reset button functions for SP1+ units There are specific commands you can send to the unit by holding the Reset button for a specified amount of time. You’ll have to use something sharp, such as a straightened paperclip to be able to press Reset.
- Page 7 Setting up the unit’s IP address Very Important Note: The unit’s shipped with DHCP enabled. If there are no DHCP server on the network, the unit will revert to the default IP address of 192.168.0.100 Note: In some cases your computer might not be able to connect to this default IP address.
- Page 8 Cloud connection SP1+ units will automatically attempt to contact AKCP cloud services, if there is a working internet connection. This includes, but not limited to: ● Automatic unlock and device activation ● Automatic license code download (for licensed features) ● Automatic connection to Cloud APS (optional feature) Important notes: if there is no internet access: 1) The device cannot automatically unlock itself.
- Page 9 Technical specifications...
- Page 10 Please contact support@akcp.com if you have any further technical questions or problems Thanks for Choosing AKCP!
