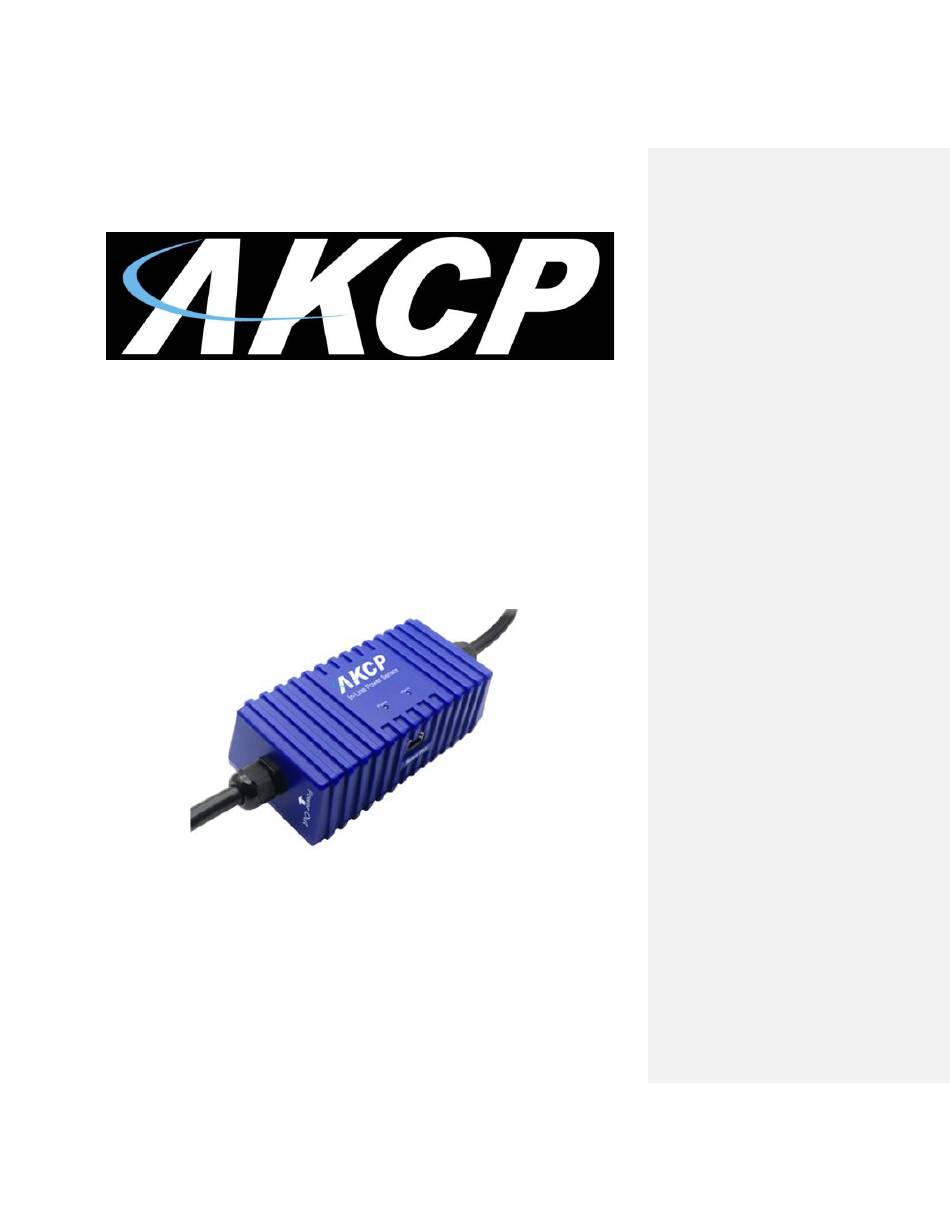

- Page 1 Inline Power Meter AC Manual Copyright © 2018, AKCP...
- Page 2 ILPM-AC Manual Table of Contents What is the ILPM (Inline Power Meter) & Essential Benefits & Safety ..... 3 Connecting the ILPM ....................5 Example of ILPM Installation ............... 6 Connecting the ILPM to Power Strips ..........7 What can the ILPM Monitor ..............8 Setting up the ILPM in the SP+ Web UI ..............

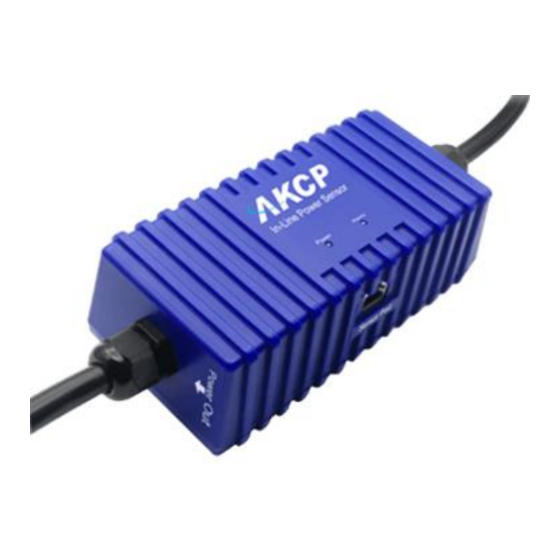

- Page 3 Monitor up to 16 Inline Power Meters from a single sensorProbe+ or SEC+ The AC ILPM comes in either a 16A or 32Amp version. AC Voltage rating = 110AC to 220VAC. Please refer to the product datasheet for specific part numbers and connector types.
- Page 4 Do not install the ILPM in an environment where there is very high humidity, flammables or anywhere near or in contact with strong magnetic fields. • customer’s user’s Do not install or use the ILPM if the meter is wet or if the hands are wet. •...
- Page 5 With the AC power disconnected, connect the AC power plug to the AC power source using the “Power In” line on the ILPM. Then connect the AC power plug to the “Power Out” line and then to the AC load or power strip. [[sentence is confusing, maybe just say cConnect the AC power plug of the “Power In”...
- Page 6 ILPM-AC Manual The above installation example shows how the ILPM is connected to the SP2+ unit and the AC equipment installed in this server cabinet. Connecting to existing power strips...
- Page 7 With the AC power disconnected, first connect the “Power In” connector to the power wires on ILPM power in port, then connect the “Power Out” connector first to the ILPM then the other end connector to the power strip as shown in the image below.
- Page 8 ILPM-AC Manual What can the Inline Power Meter monitor? The Inline Power Meter can monitor and record the following from the sensorProbe+ base units. Current = AC Current to the load. Voltage = AC Voltage of the load. Active Power =...
- Page 9 ILPM-AC Manual ILPM Sensor Web UI Setup After connecting the ILPM to the base unit and connecting the power, log into the SP+ or SEC+ base unit as administrator and navigate to the sensors page as shown above. As shown in the screen shot below, then you would click on the sensor port that the...
- Page 10 ILPM-AC Manual Inline Current Now you can set your current thresholds as shown in the screen shot below.
- Page 11 ILPM-AC Manual By clicking on the Advancedd tab you can then setup the Rearm, Data Collection type. Enable the Calendar, Graph or Filter Status. Note: Advanced Settings Continuous Time Settings are exactly the same for each InlinePower Meter reading readingsensor.
- Page 12 ILPM-AC Manual Note: Continuous Time Settings are exactly the same for each InlinePower Meter reading readingsensor. Inline Voltage Now you can set your Voltage thresholds as shown in the screen shot below. Inline Active Power Now you can set your Active Power thresholds as shown in the screen shot below.
- Page 13 ILPM-AC Manual Inline Power Factor Now you can see the Power Factor as shown in the screen shot below. Inline Total Active Energy Now you can see the Active Energy as shown in the screen shot below.
- Page 14 ILPM-AC Manual Inline Leakage Current Now you can set your Current Leakage thresholds as shown in the screen shot below. Optional Bi-Stable Latched Relay...
- Page 15 ILPM-AC Manual A latched relay is basically a relay that will maintain its position after the power is removed. The relay LED is located on the right of the power LED and shows the status of the relay. Relay Advanced Settings...
- Page 16 ILPM-AC Manual Please contact support@akcp.com if you have any further technical questions or problems setting up your modem or your alerts. Thanks for Choosing AKCP!
