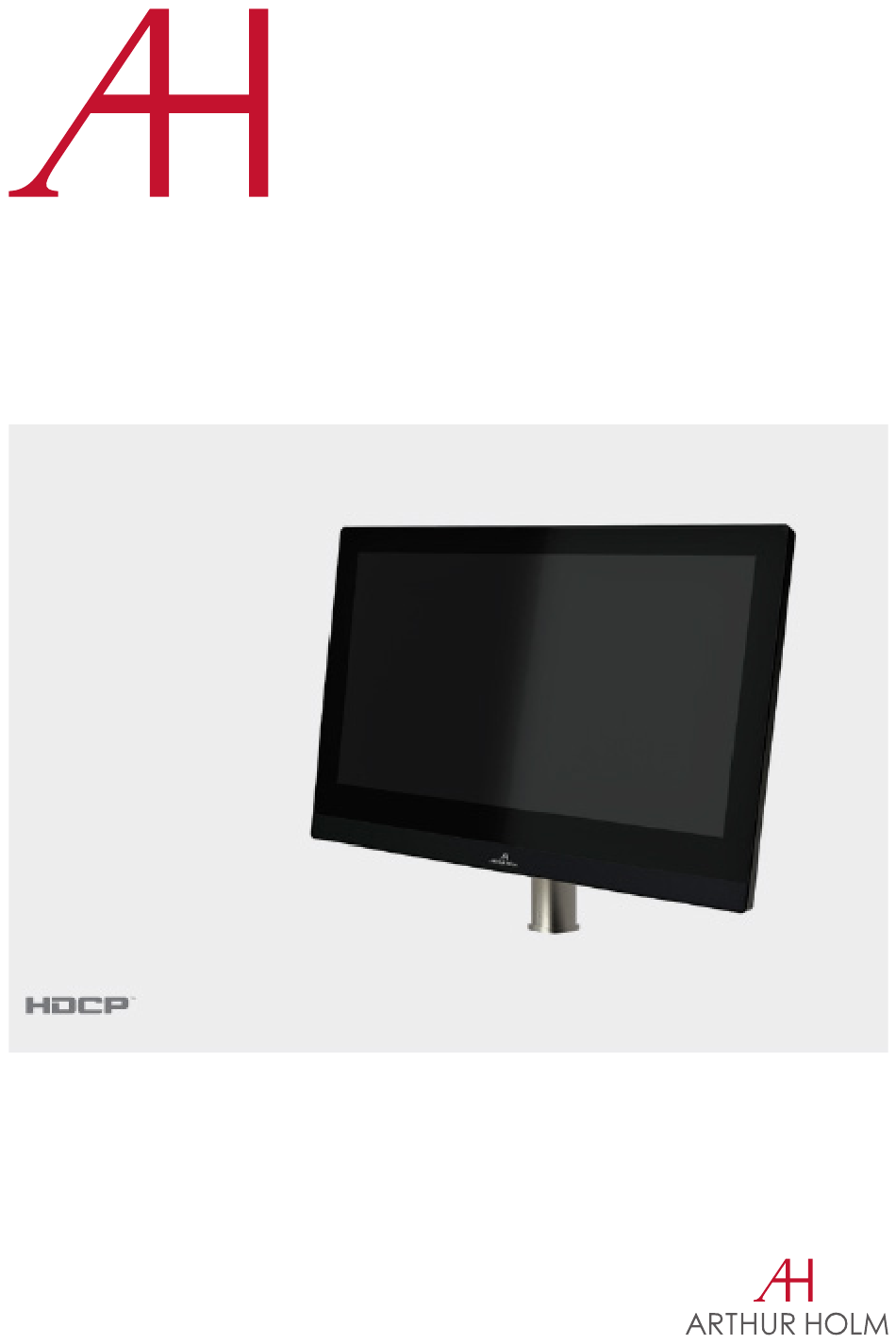

- Page 1 User manual AH17 NTTHD AH19 NTT16 AH22 NTT16 Desktop monitors...
-
Page 2: Table Of Contents
Table of contents EC REGULATIONS & SECURITY SAFETY INSTRUCTIONS FEATURES BOX CONTENTS CONTROLS OSD MENU INPUT SIGNALS PRODUCT WARRANTY... - Page 3 Welcome Thank you for purchasing an ARTHUR HOLM product. Our product range has been designed to create the perfect meeting room, where the screens are a part of the interior design as well as essential communication tools. Please, read this installation and operating instructions carefully and keep them in a safe place for a future consultation.
-
Page 4: Ec Regulations & Security
EC Regulations and Security ATTENTION: Do not disassemble or modify the device in any way. This symbol warns of the presence of dangerous un-insulated voltages inside some of the components, of sufficient magnitude to expose people to risk of electronic shock. This symbol draws attention to important use and maintenance instructions in the manual that accompanies the unit. -
Page 5: Safety Instructions
Safety instructions POWER AND EXTENSIONS CORDS – Use the appropriate power cord with the correct plug type – Do not overload wall outlets or power cords – Make sure the total ampere passed through a extension cord does not exceed the maximum allowed by the cable used –... -
Page 6: Features
System Description FEATURES - Signal input: DVI-I - Regulable desktop monitor Use high quality DVI cables with 2m maximum length BOX CONTENTS Before the installation of your monitor, please check the contents of the shipping box, it must contain the following items: - Monitor - Power cord - AC/DC adapter... -
Page 7: Controls
Controls OSD MONITOR CONTROL The OSD buttons, to control or configure the monitor, are located on the lower body housing of the system POWER SOURCE RIGHT LEFT DOWN SELECT MENU POWER Monitor power on/off Indicates operation status SOURCE Signal input selection RIGHT Cursor control right on OSD menu LEFT... -
Page 8: Osd Menu
OSD menu ACCESSING THE MENU SYSTEM – With the OSD off, push the MENU button to activate the main OSD menu – Press the UP and DOWN button to move from one function to another. As you move from one icon to another, the function name changes to reflect the function or group of functions represented by that icon. - Page 9 OSD menu SCREEN Input Input signal selection DVI-A DVI 1 DVI 2 Aspect image on screen Full The image is showed on full screen 16:9 Shows the image on screen with 16:9 aspect Aspect Shows the image on full screen but keeps the original aspect ratio of the input image Shows the image on screen with 4:3 aspect Shows the image on screen with the...
- Page 10 OSD menu SETUP Language OSD language selection PC Control Adjust the image on screen. Only on ARGB (analogue) input H-Pos Adjust the image on screen horizontally V-Pos Adjust the image on screen vertically Phase Adjust the phase Clock Adjust the clock Auto Adjust Auto adjust the image on screen Reset...
-
Page 11: Input Signals
Input Signals AH17 NTTHD RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type 800x600@60Hz 37.879 60.317 Progressive 800x600@72Hz 48.077 72.188 Progressive 800x600@75Hz 46.875 75.000 Progressive 1024x768@60Hz 48.363 60.005 Progressive 1024x768@70Hz 56.476 70.070 Progressive 1024x768@75Hz 60.023 75.030 Progressive 1280x720@60Hz 44.772 59.855... - Page 12 Input Signals AH22 NTT16 RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type 800x600@60Hz 37.879 60.317 Progressive 800x600@72Hz 48.077 72.188 Progressive 800x600@75Hz 46.875 75.000 Progressive 1024x768@60Hz 48.363 60.005 Progressive 1024x768@70Hz 56.476 70.070 Progressive 1024x768@75Hz 60.023 75.030 Progressive 1280x720@60Hz 44.772 59.855 Progressive 1360x768@60Hz 47.72...
- Page 14 Information on disposal for users of waste electrical & electronic equipment This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis.
-
Page 15: Product Warranty
Product Warranty Albiral Display Solutions S.L WARRANTY - Valid from January 2016 This warranty covers the original product purchase for a period of 24 months from the date of purchase. GENERAL WARRANTY TERMS A) Parts. During the above mentioned warranty period, the replacement of any electronic and mechanical parts against any defects in manufacturing. - Page 16 Patents ES 1051718UU ES 1061088UU EP 1574150A1 ES 1068395 U WO 2009141744 Fàtima 25, Sant Hipòlit de Voltregà MU 170180 ES00 08512 Barcelona – Spain EP 2289367 A1 tel: +34 93 850 23 76 / 23 83 MU 17301 ES00 fax: +34 93 850 25 50 / 23 72 MU 17322 ES00 web: www.arthurholm.com...
