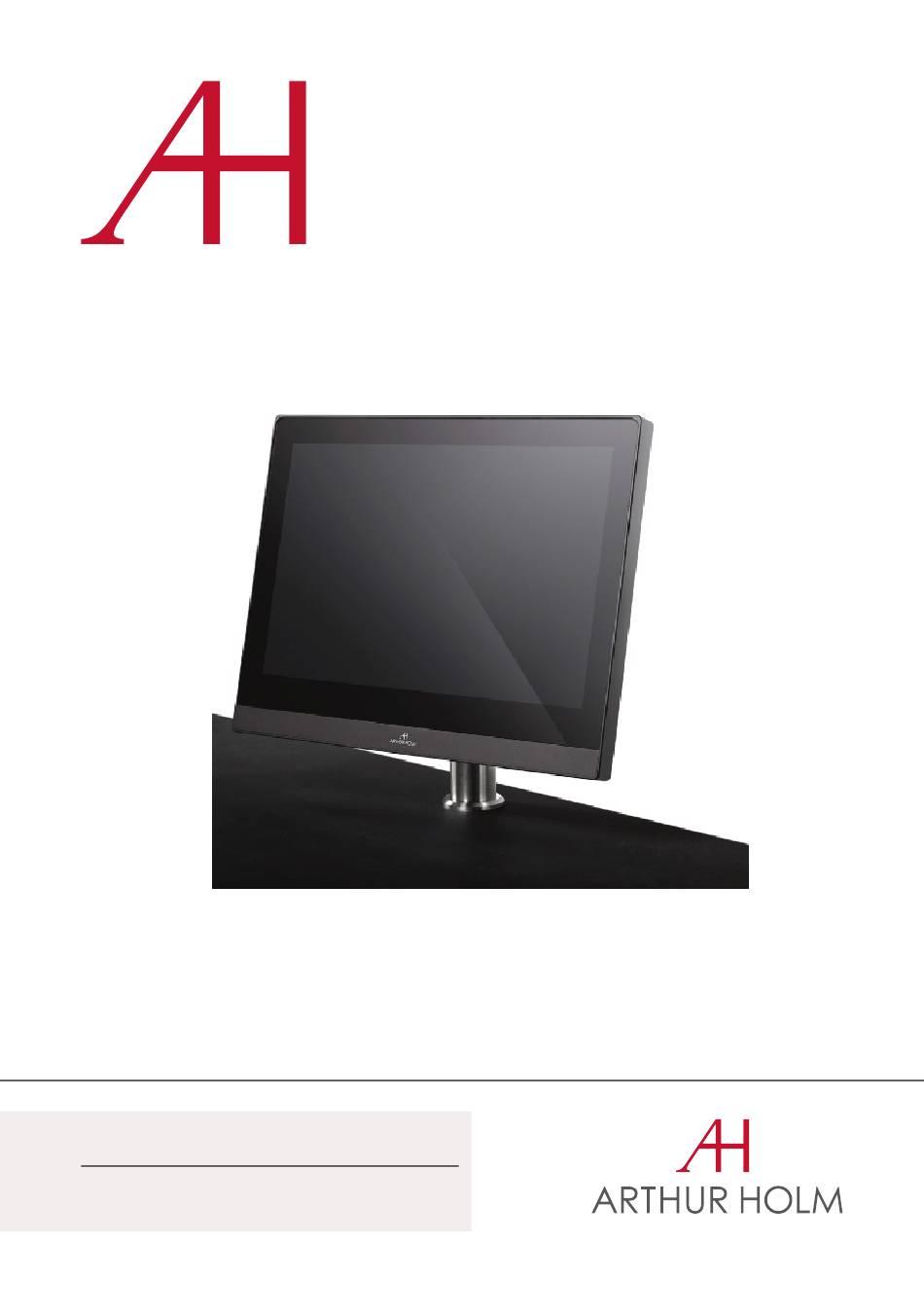

- Page 1 User Guide Gooseneck HDCP compliant aluminium monitor for desk integration Technology Serving Design Danish craftmanship Mediterranean soul...
-
Page 2: Table Of Contents
TABLE OF CONTENTS WELCOME ABOUT US REGULATIONS AND SECURITY SAFETY INSTRUCTIONS SYSTEM DESCRIPTION INSTALLATION INSTRUCTIONS CONTROLS OSD MENU INPUT CONNECTORS VIDEO SIGNALS INFORMATION ON DISPOSAL WARRANTY TERMS AND CONDITIONS... -
Page 3: Welcome
WELCOME Thank you very much for purchasing an Arthur Holm product. Please, read these installation and operating instructions carefully and keep them in a safe place for future consultations. We remain at your entire disposal if you have any suggestions. -
Page 4: About Us
ABOUT US The Company Arthur Holm has its origins in the Danish furniture designer Jorgen Alex Jensen, who was active during the sixties and the seventies. His design inspiration and his concept of ergonomics have been continued by his family, who is the design force behind Arthur Holm product range. The... -
Page 5: Regulations And Security
REGULATIONS AND SECURITY ATTENTION: Do not disassemble or modify the device in any way. This symbol warns of the presence of dangerous un-insulated voltages inside some of the components, of sufficient magnitude to expose people to risk of electronic shock. This symbol draws attention to important use and maintenance instructions in the manual that accompanies the unit. - Page 6 SAFETY INSTRUCTIONS Wiring connected to hazardous voltage requires installation by qualified personnel or the use of ready-made flexible cables. For your security, your equipment must be connected to an electrical outlet with grounding connection protection. Since the plug is used to disconnect the device, the operating electrical outlet must be in an easily accessible place.
-
Page 7: System Description
SYSTEM DESCRIPTION General Gooseneck monitors have been designed to be installed on counters or desks. These monitors have a brushed stainless steel support base assembled to the table. Very elegant screens designed for fixed installation on tables are made from milled aluminium with a stylish, protective glass panel. The cables are neatly concealed inside the support and under the table to reach the connection point. - Page 8 SYSTEM DESCRIPTION Available Models MODEL DESCRIPTION HDCP compliant 21,5" FULL HD aluminium monitor for fixed AH22NTT16 installation on desk. Arm made of stainless steel with adjustable viewing angle and 160˚ horizontal rotation. DVI-I input. Options AH22NTT16 CL (Min.5 units) Laser engraved logo TS2216G Projected capacitive multi-touch screen Privacy filter...
-
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS Mounting Instructions Mounting Instructions... -
Page 10: Controls
CONTROLS OSD monitor control The OSD buttons, to control or configure the monitor, are located at the lower body housing of the system. MENU Activates the OSD menu on screen. Exits the OSD menu when is active Selects the OSD menu function DOWN Moves the cursor down in the OSD menu Moves the cursor up in the OSD menu... -
Page 11: Osd Menu
OSD MENU Accessing the menu system • With the OSD off, push the MENU button to activate the main OSD menu. • Press the UP and DOWN buttons to move from one function to another. Please refer to the following sections below to view a complete list of all the functions available for the monitor. - Page 12 OSD MENU Noise Reduction: Adjusts the image noise filter ∙ Off ∙ Low ∙ Medium ∙ High ∙ Default Screen: (Only for analogue signals) ∙ Auto Adjust ∙ Horizontal Position ∙ Vertical Position ∙ Size ∙ Phase Backlight: Adjusts the backlight screen's level Colour Range: Adjusts the colour range ∙...
- Page 13 OSD MENU Option Language: OSD language selection Restore Factory Default: Adjusts the parameters to the initial factory parameters Blending: OSD window transparency ∙ Low ∙ Medium ∙ High ∙ Off OSD Duration: Adjusts the time that the OSD menu window remains on the screen Software Update (USB): Port to use for firmware's upgrade.
-
Page 14: Input Connectors
INPUT CONNECTORS Power connection: 1. Plug the power cable from the power supply into an AC socket of 100-240 Vac, 50-60Hz. 2. Plug the 12Vdc cable into the socket on the unit. Signal connection: 1. Use high quality DVI cable to signal connection Use high quality DVI cable with 2m maximum length... -
Page 15: Video Signals
VIDEO SIGNALS RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type 800x600@60Hz 37.879 60.317 Progressive 800x600@72Hz 48.077 72.188 Progressive 800x600@75Hz 46.875 75.000 Progressive 1024x768@60Hz 48.363 60.005 Progressive 1024x768@70Hz 56.476 70.070 Progressive 1024x768@75Hz 60.023 75.030 Progressive 1280x720@60Hz 44.772 59.855 Progressive 1360x768@60Hz 47.720 59.799 Progressive... -
Page 16: Information On Disposal
INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL & ELECTRONIC EQUIPMENT This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to the designated collection points, where they will be accepted on a free of charge basis. -
Page 17: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS Albiral Display Solutions warrants this product against manufacturing defects and workmanship for a period of two (2) years from the date of purchase, subject to the conditions below. LCD panel, inverter, controller, electrical, electronic boards, engine, mechanical parts, accessories and power supply are warranted against manufacturing defects and workmanship for a period of two (2) years from the date of purchase. - Page 18 If you have any doubts concerning the terms of this warranty, please contact: business@albiral.com +34 938 502 376 Copyright © Nov. 2020. All rights reserved Albiral Display Solutions SL. Registered trademarks: Albiral, Arthur Holm...
- Page 19 Patents P27178ITEP P27178RUPC MU17180ES00 P27178USPC MU17301ES00 P27284DEEP MU17322ES00 P27284EPPC MU17413ES00 P27284ESEP MU17445ES00 P27284GBEP MU17854ES00 P27284RUPC MU17868DEPC P27284USPC MU17868RUPC P27715ESEP P24821DEEP P28089DEEP P24821ESEP P28089ESEP P24821GBEP Fàtima 25, Sant Hipòlit de Voltregà P28089ITEP P24821USPC 08512 Barcelona – Spain P28089USPC P27178DEEP tel: +34 93 850 23 76 / 23 83 P28090EP00 P27178EPDV01 fax: +34 93 850 25 50 / 23 72...
