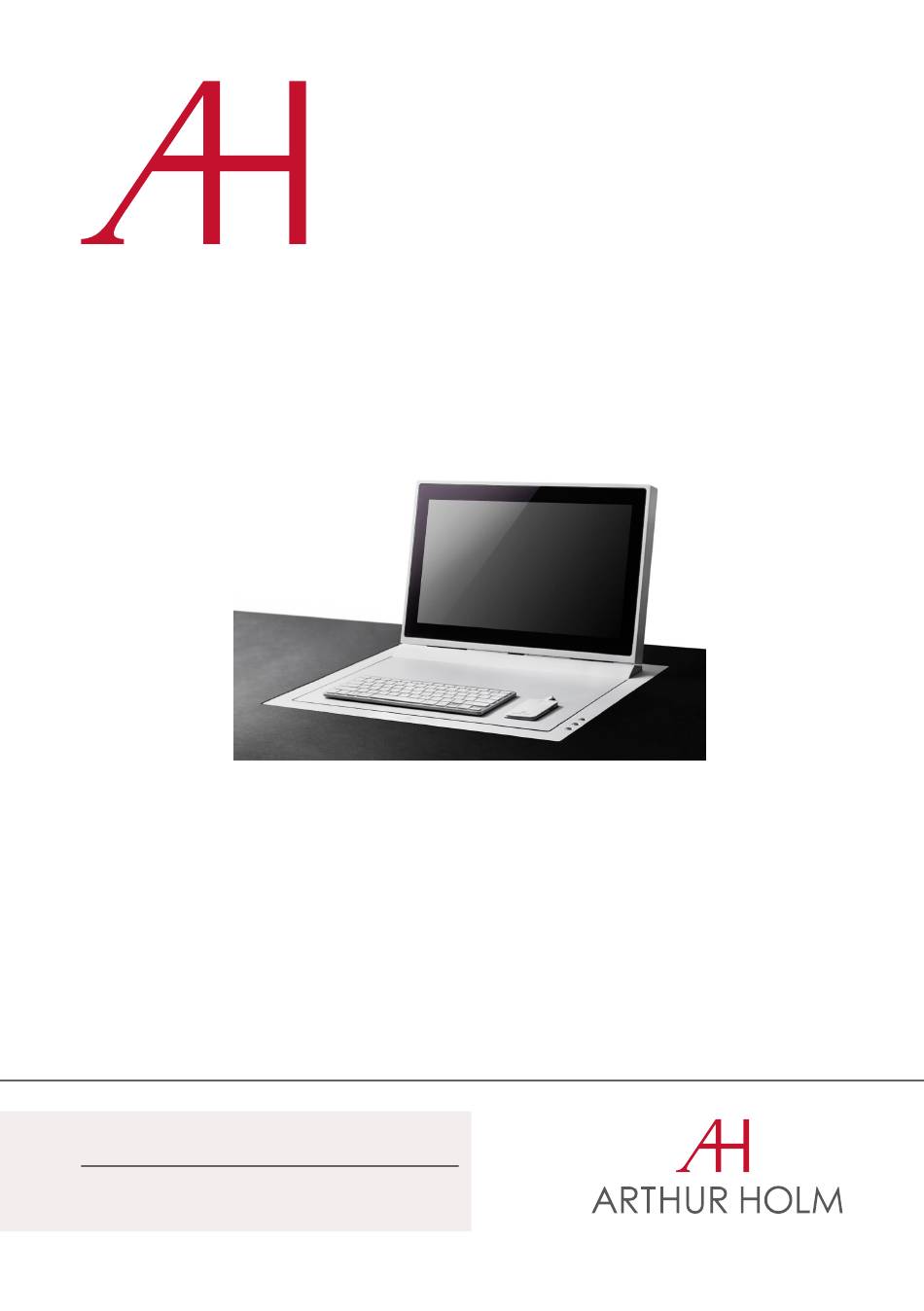

- Page 1 User Guide Dynamic3 HDCP compliant aluminium foldable monitors Technology Serving Design Danish craftmanship Mediterranean soul...
-
Page 3: Table Of Contents
TABLE OF CONTENTS REGULATIONS AND SECURITY SAFETY INSTRUCTIONS SYSTEM DESCRIPTION BEFORE INSTALLATION BEFORE SHIPPING INPUT CONNECTORS CONTROLS OSD MENU AHNET PROTOCOL INPUT SIGNALS AHLINK INFORMATION ON DISPOSAL WARRANTY TERMS AND CONDITIONS... - Page 4 WELCOME Thank you very much for purchasing an Arthur Holm product. Please, read these installation and operating instructions carefully and keep them in a safe place for future consultations. We remain at your entire disposal if you have any suggestions.
- Page 5 ABOUT US The Company Arthur Holm has its origins in the Danish furniture designer Jorgen Alex Jensen, who was active during the sixties and the seventies. His design inspiration and his concept of ergonomics have been continued by his family, who is the design force behind Arthur Holm product range. The...
-
Page 6: Regulations And Security
REGULATIONS AND SECURITY ATTENTION: Do not disassemble or modify the device in any way. This symbol warns of the presence of dangerous un-insulated voltages inside some of the components, of sufficient magnitude to expose people to risk of electronic shock. This symbol draws attention to important use and maintenance instructions in the manual that accompanies the unit. - Page 7 SAFETY INSTRUCTIONS Wiring connected to hazardous voltage requires installation by qualified personnel or the use of ready-made flexible cables. For your security, your equipment must be connected to an electrical outlet with grounding connection protection. Since the plug is used to disconnect the device, the operating electrical outlet must be in an easily accessible place.
-
Page 8: System Description
SYSTEM DESCRIPTION General Dynamic3 is a motorised product range which is available in 2 different versions, always keeping a low profile inside the desk and designed for a perfect horizontal integration in the furniture. The D3 range opens and folds, whereas the D3R range opens, folds and rotates 180°. - Page 9 SYSTEM DESCRIPTION Available Models MODEL DESCRIPTION HDCP compliant 15,6" Full HD foldable monitor with horizontal and vertical working positions. Can work in a horizontal position levelled with the desk surface or in a vertical position with 20˚ of variable inclination. The monitor can rotate 180˚ and can be folded with the screen facing down.
- Page 10 SYSTEM DESCRIPTION Available Models MODEL DESCRIPTION HDCP compliant 17,3" Full HD foldable monitor with vertical working position. Can work in a in a vertical position with 20˚ of variable inclination. The monitor can be folded with the screen facing down. Both the monitor housing and cover plate are made of anodised aluminium.
- Page 11 SYSTEM DESCRIPTION Available Models MODEL DESCRIPTION HDCP compliant 21,5" Full HD foldable monitor with horizontal and vertical working positions. Can work in a horizontal position levelled with the desk surface or in a vertical position with 20˚ of variable inclination. The monitor can rotate 180˚ and can be folded with the screen facing down.
- Page 12 SYSTEM DESCRIPTION Options AH15D3RHDGA AH17D3RHDGA AH19D3RHDGA AH22D3R16GA AH15D3HDGA AH17D3HDGA AH19D3HDGA AH22D316GA CL (Min.5 units) CL (Min.5 units) CL (Min.5 units) CL (Min.5 units) Laser engraved logo Laser engraved logo Laser engraved logo Laser engraved logo Underneath installation Underneath installation Underneath installation Underneath installation TS150HDG TS170HDG...
- Page 13 SYSTEM DESCRIPTION Box Contents Before the installation of your monitor, please check the contents of the shipping box, it must contain the following items: • Monitor • Power cord • Remote control • Power supply 100-2 40Vac, 50-60Hz. Output 12V •...
-
Page 14: Before Installation
BEFORE INSTALLATION Make sure to follow these steps before installing the device: Remove the 2 lateral transport plastic screws M8x30. Remove the 2 frontal transport plastic screws M8x30. Dynamic3 is ready to be installed. -
Page 15: Before Shipping
BEFORE SHIPPING Follow the next steps to pack the device for a safe shipment: For a safety shipment all screws must be of plastic. Otherwise Albiral Display Solutions S.L. is not responsible for damage caused during transport. Close the monitor carefully by hand to the position shown in the next figure: Hold the monitor with the hand between the frame and the monitor housing. -
Page 16: Input Connectors
INPUT CONNECTORS 12V D.C.: Power supply input connector. XLR-4 connector. - 1,2: Ground - 3,4: 12Vdc GPI: Monitor external contact close control. SubD9 female. 1 . GPI1 + 2. GPI1 – 3. GPI2 + 4. GPI2 – 5. GPI3 – 6. - Page 17 INPUT CONNECTORS DVI 1/ DVI A: DVI-I input signal. Connect a DVI (digital) input signal and select DVI 1 on the OSD monitor menu. Use a DVI to VGA adaptor to connect an ARGB (analogue) input signal and select DVI-A on the OSD monitor menu.
-
Page 18: Controls
CONTROLS Remote control POWER Switch ON/OFF the monitor MENU Activates the OSD menu on screen Control up on the OSD menu DOWN Control down on the OSD menu LEFT Control left on the OSD menu RIGHT Control right on the OSD menu Selects the function on the OSD menu. - Page 19 CONTROLS Monitor movement controls Three buttons are placed on the upper cover plate: 1. Open 2. Rotate 3. Close 1. Raising the monitor: To raise and tilt the monitor, press the open button (1) on the right hand side of the cover plate. To adjust the angle, press and hold this button (1) while the monitor is open;...
-
Page 20: Osd Menu
OSD MENU Accessing the menu system • With the OSD off, push the MENU button to activate the main OSD menu. • Press the UP and DOWN buttons to move from one function to another. Please refer to the following sections below to view a complete list of all the functions available for the monitor. - Page 21 OSD MENU Aspect Ratio: Adjusts the image aspect on screen ∙ 4:3 ∙ 16:9 ∙ Zoom1 ∙ Zoom2 ∙ Just scan Noise Reduction: Adjusts the image noise filter ∙ Off ∙ Low ∙ Medium ∙ High ∙ Default Screen: (Only for analogue signals) ∙...
- Page 22 OSD MENU Option Language: OSD language selection Restore Factory Default: Adjusts the parameters to the initial factory parameters Blending: OSD window transparency ∙ Low ∙ Medium ∙ High ∙ Off OSD Duration: Adjusts the time that the OSD menu window remains on the screen Software Update (USB): Port to use for firmware's upgrade.
-
Page 23: Ahnet Protocol
AHNET PROTOCOL Communications protocol COMMUNICATION RS422 CONNECTION RJ45 WIRING CAT-6 Speed and configuration BAUD RATE 38400 DATA BITS PARITY NONE STOP BITS Wiring Diagram 1. Data TX + 2. Data TX – 3. Data RX + 4. NC 5. NC 6 .Data RX –... - Page 24 AHNET PROTOCOL AHnet protocol Uses 5 bytes communication: BYTE 0 START BYTE BYTE 1 ADDRESS BYTE BYTE 2 COMMAND BYTE BYTE 3 VALUE 1 BYTE 4 VALUE 2 Commands COMMAND DESCRIPTION RESPONSE FA XX 01 01 00 OPEN FB XX 01 01 00 FA XX 01 00 00 CLOSE SCREEN DOWNWARDS FB XX 01 00 00...
- Page 25 AHNET PROTOCOL BITE CLOSED OPENED CLOSED SCREEN FACE UP MONITOR 90˚ POSITION SCREEN ON SCREEN OFF DVI-A DVI 1 DVI 2 PROTECTION STOP MONITOR OK BITE BUTTON LOCK BUTTON UNLOCK...
- Page 26 AHNET PROTOCOL Picture Commands COMMAND DESCRIPTION RESPONSE FA XX 15 00 00 ASK FOR BACKLIGHT LEVEL FB XX 15 00 ZZ FA XX 16 00 00 ASK FOR CONTRAST LEVEL FB XX 16 00 ZZ FA XX 17 00 00 ASK FOR BRIGHTNESS LEVEL FB XX 17 00 ZZ Number of the monitor address.
-
Page 27: Input Signals
INPUT SIGNALS AH15D3 HDGA / AH17D3 HDGA / AH19D3 HDGA / AH22D3 16GA / AH15D3 RHDGA / AH17D3 RHDGA/ AH19D3 RHDGA / AH22D3 R16GA RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type 800x600@60Hz 37.879 60.317 Progressive 800x600@72Hz 48.077 72.188 Progressive 800x600@75Hz 46.875... -
Page 28: Ahlink
AHLINK AHlink is used to control and set-up the unit. By default, the AHLink wireless signal is deactivated. To activate it, please press and hold simulatenously the Open (1) and Close (3) buttons on the cover plate for 5 seconds. You can also activate the AHLink wireless signal by using the Interactive Setup Display (ISD) located below the monitor. - Page 29 AHLINK If your AH device does not appear screen, AHLink signal might no longer be active. The AHLink name always begins with characters “AH” followed by the four last MAC AHLink address. You must select the AH device. After selecting the AH device, the first page will upload on your screen.
- Page 30 AHLINK SERIAL Serial number Firmware version Open and Close screen movement’s control DISP: Turns the display ON or OFF DVIA, DVI1, DVI2: Input selection BACKL: Backlight adjustments CONTR: Contrast adjustments BRIGHT: Brightness adjustments SAVE VALUES: Memorises the backlight, contrast and brightness values AHLINK OFF: Turns off the AHlink signal COMMAND: Information of the last AHnet command received from RS422 port...
- Page 31 AHLINK SERIAL Serial number Firmware version Open and Close screen movement’s control and close screen face up (rotation) DISP: Turns the display ON or OFF DVIA, DVI1, DVI2: Input selection BACKL: Backlight adjustments CONTR: Contrast adjustments BRIGHT: Brightness adjustment SAVE VALUES: Save settings for backlight, contrast and brightness AHLINK OFF: Turns off the AHlink signal COMMAND: Information about the last...
-
Page 32: Information On Disposal
INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL & ELECTRONIC EQUIPMENT This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to the designated collection points, where they will be accepted on a free of charge basis. -
Page 33: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS Albiral Display Solutions warrants this product against manufacturing defects and workmanship for a period of two (2) years from the date of purchase, subject to the conditions below. 1. LCD panel, inverler, controller, electrical, electronic boards, engine, mechanical parts, accessories and power supply are warranted against manufacturing defects and workmanship for a period of two (2) years from the date of purchase. - Page 34 If you have any doubts concerning the terms of this warranty, please contact: business@albiral.com +34 938 502 376 Copyright © Nov. 2020. All rights reserved Albiral Display Solutions SL. Registered trademarks: Albiral, Arthur Holm...
