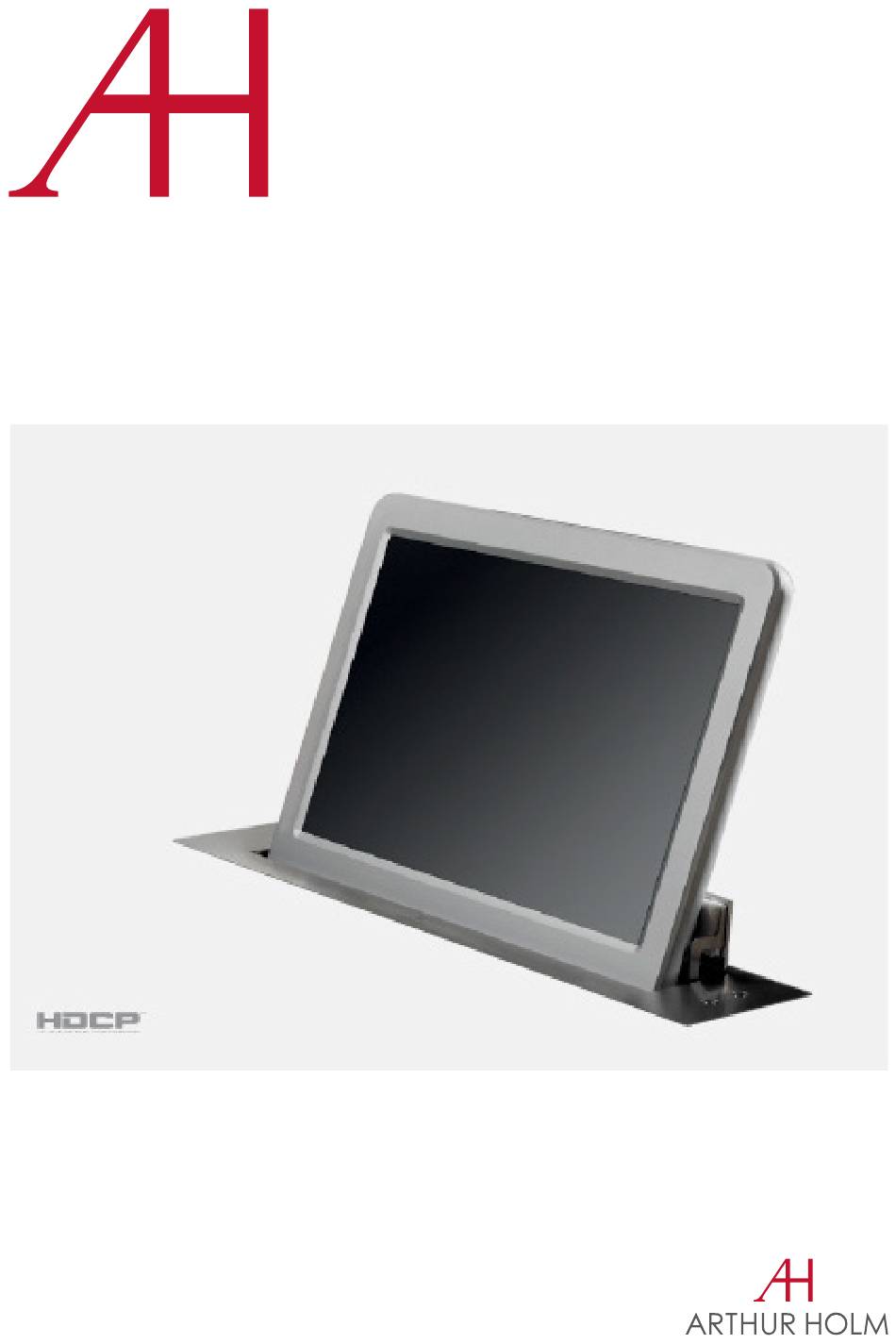

- Page 1 User manual AH15D X2HDA AH17D X2HDA AH19D X2HDA AH22D X216A Retractable monitors for furniture integration...
-
Page 3: Table Of Contents
Table of contents EC REGULATIONS & SECURITY SAFETY INSTRUCTIONS APPLICATIONS FEATURES BOX CONTENTS CONNECTIONS CONTROLS OSD MENU INPUT CONNECTORS WARNING AHnet PROTOCOL INPUT SIGNALS PRODUCT WARRANTY... - Page 5 Welcome Thank you for purchasing an ARTHUR HOLM product. Our product range has been designed to create the perfect meeting room, where the screens are a part of the interior design as well as essential communication tools. Please, read this installation and operating instructions carefully and keep them in a safe place for future reference.
-
Page 6: Ec Regulations & Security
EC Regulations and Security ATTENTION: Do not disassemble or modify the device in any way. This symbol warns of the presence of dangerous un-insulated voltages inside some of the components, of sufficient magnitude to expose people to risk of electronic shock. This symbol draws attention to important use and maintenance instructions in the manual that accompanies the unit. -
Page 7: Safety Instructions
Safety instructions PLUGS – Do not dismantle any part of the monitor power connector – Disconnect the power plug from the AC outlet when the monitor is not going to be used for an indefinite period of time POWER AND EXTENSIONS CORDS –... -
Page 8: Applications
Conference rooms Meeting rooms Board rooms Auditoriums Information desks Training rooms FEATURES – TFT Active Matrix display AH15D X2HDA FULL HD 15.6’’ AH17D X2HDA FULL HD 17.3’’ AH19D X2HDA FULL HD 18.5’’ AH22D X216A FULL HD 21.5’’ – Retractable monitor with electrical engine for furniture integration and tilting screen 20°... -
Page 9: Box Contents
System Description BOX CONTENTS Before the installation of your retractable monitor, please check the contents of the shipping box, it must contain the following items: - Monitor - Power cord - Power supply 100-240Vac, 50-60Hz. Output 12V - Remote control (1 per 5 monitors) - User Manual CONNECTIONS Before connecting the power... -
Page 10: Controls
Controls REMOTE CONTROL POWER Switch ON/OFF the monitor MENU Activates the OSD menu on screen Cursor control up on the OSD menu DOWN Cursor control down on the OSD menu LEFT Cursor control left on the OSD menu RIGHT Cursor control right on the OSD menu Selects the function on the OSD menu. - Page 11 Controls IR SENSOR The IR sensor is located on the lower right side of the screen MONITOR MOVEMENT CONTROLS On the upper cover plate, there are two buttons to control the monitor movements: 1. UP button control 2. DOWN button control 1.
-
Page 12: Osd Menu
OSD menu ACCESSING THE MENU SYSTEM – With the OSD off, push the MENU button to activate the main OSD menu – Press the UP and DOWN button to move from one function to another. Please refer to the following sections below to view a complete list of all the functions available for the monitor –... - Page 13 OSD menu PICTURE Noise Reduction Adjusts the image noise filter Middle High Default Screen (Only for analogue signals) Auto Adjust Horizontal Pos. Vertical Pos. Size Phase Backlight Adjust the backlight of the screen Colour Range 0 – 255 16 – 235...
- Page 14 OSD menu OPTION OSD Language Selects OSD language Restore Factory Default Adjusts the parameters as factory Blending OSD window transparency Middle High OSD Duration Adjusts the time that the OSD menu window remains on screen Software Update (USB) Used for firmware upgrade Mirror 0: Image with no flip 1: Vertical flip...
-
Page 15: Input Connectors
Input connectors DVI 1/ DVI A DVI-I input signal. Connect a DVI (digital) input signal and select DVI 1 on the OSD monitor menu. Use a DVI to VGA adapter to connect an ARGB (analogue) input signal and select DVI-A on the OSD monitor menu DVI 2 DVI-D input signal. -
Page 16: Warning
Warning Do not use the unit in horizontal position. It could damage the mechanical parts of the monitor. Do not use force to open or close the monitor. It could damage the mechanical parts of the monitor. Use this device only with the supplied accessories. The use of unapproved accessories, as a power supply unit, will invalid the warranty. -
Page 17: Ahnet Protocol
AHnet protocol COMMUNICATIONS PROTOCOL Communication RS422 Connection RJ45 Wiring CAT-5 SPEED & CONFIGURATION Baud Rate 38400 Data Bits Parity None Stop Bits WIRING DIAGRAM Data TX + Data TX – Data RX + Data RX – RJ-45 CONNECTION Pins 1 & 2 The units respond Pins 3 &... - Page 18 AHnet protocol AHnet PROTOCOL Using 5 bytes communication: BYTE 0 START BYTE BYTE 1 ADDRESS BYTE BYTE 2 COMMAND BYTE BYTE 3 VALUE 1 BYTE 4 VALUE2 COMMANDS COMMAND DESCRIPTION RESPONSE FA XX 01 01 00 GO UP FB XX 01 01 00 FA XX 01 00 00 GO DOWN FB XX 01 00 00...
- Page 19 AHnet protocol BITE CLOSED OPENED SCREEN ON SCREEN OFF DVI-A DVI 1-D DVI 2-D PROTECTION STOP MONITOR OK BITE BUTTON LOCK BUTTON UNLOCK...
- Page 20 AHnet protocol PICTURE COMMANDS COMMAND DESCRIPTION RESPONSE FA XX 15 00 00 ASK FOR BACKLIGHT LEVEL FB XX 15 00 ZZ FA XX 16 00 00 ASK FOR CONTRAST LEVEL FB XX 16 00 ZZ FA XX 17 00 00 ASK FOR BRIGHTNESS LEVEL FB XX 17 00 ZZ Number of the monitor address.
-
Page 21: Input Signals
Input Signals AH15D X2HDA / AH17D X2HDA / AH19D X2HDA / AH22D X216A RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type 800x600@60Hz 37.879 60.317 Progressive 800x600@72Hz 48.077 72.188 Progressive 800x600@75Hz 46.875 75.000 Progressive 1024x768@60Hz 48.363 60.005 Progressive 1024x768@70Hz 56.476 70.070... - Page 22 Information on Disposal for users of waste Electrical & Electronic equipment This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis.
-
Page 23: Product Warranty
LIMITED 2-YEAR WARRANTY LCD PANEL, LCD PANEL INVERTER, LCD CONTROLLER & POWER SUPPLY The electric parts of the Arthur Holm are warranted to be free from manufacturing defects for a period of two 2 years from the date of purchase. - Page 24 Our Product Patents P 24821 RUPC MU 1996 ES00 P 24821 USPC MU 16997 ES00 P 27178 EPPC MU 17180 ES00 P 27178 RUPC MU 17301 ES00 P 27178 USPC MU 17322 ES00 P 2784 EPPC MU 17376 ES00 P 2784 RUPC MU 1741 ES00 P 2784 USPC Fàtima 25, Sant Hipòlit de Voltregà...
