User manual
DROP
Monitors for in wall integration
AH10 DA/AH10 DI/AH10 DG
AH12 DA/AH12 DI/AH12 DG
AH12 DA WIDE/AH12 DI WIDE/AH12 DG WIDE
AH15 DA/AH15 DI/AH15 DG
AH15 DA WIDE FHD/AH15 DI WIDE FHD/AH15 DG WIDE FHD
AH17 DA/AH17 DI/AH17 DG
AH17 DA WIDE FHD/AH17 DI WIDE FHD/AH17 DG WIDE FHD
AH19 DA/AH19 DI/AH19 DG
AH19 DA WIDE FHD/AH19 DI WIDE FHD/AH19 DG WIDE FHD
AH22 DA/AH22 DI/AH22 DG
Advertisement
Table of Contents
Related Manuals for ARTHUR HOLM AH10 DA
Summary of Contents for ARTHUR HOLM AH10 DA

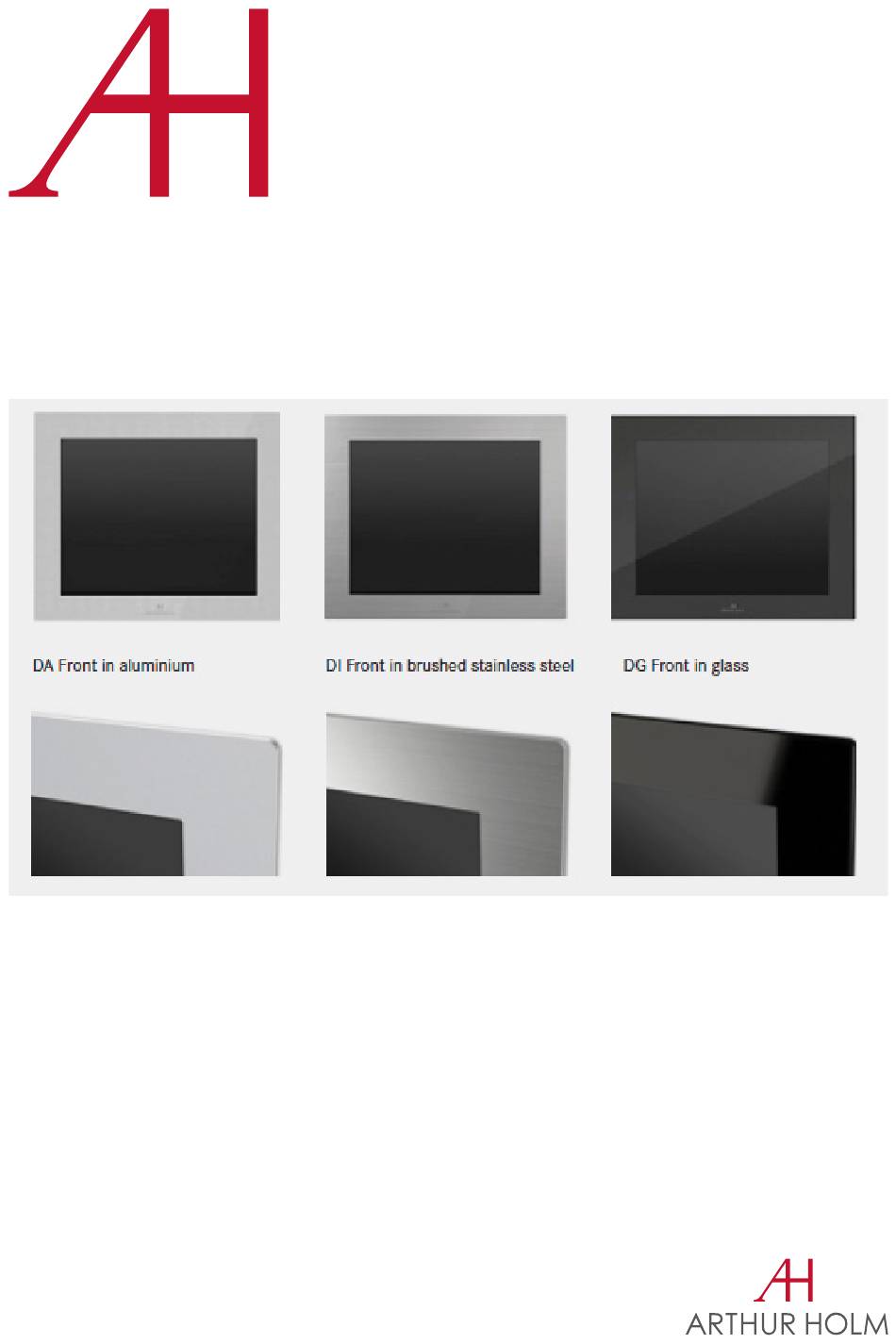

- Page 1 User manual DROP Monitors for in wall integration AH10 DA/AH10 DI/AH10 DG AH12 DA/AH12 DI/AH12 DG AH12 DA WIDE/AH12 DI WIDE/AH12 DG WIDE AH15 DA/AH15 DI/AH15 DG AH15 DA WIDE FHD/AH15 DI WIDE FHD/AH15 DG WIDE FHD AH17 DA/AH17 DI/AH17 DG...
-
Page 2: Table Of Contents
Table of contents EC REGULATIONS & SECURITY SAFETY INSTRUCTIONS BOX CONTENTS FEATURES CONTROLS OSD MENU INPUT CONNECTORS INPUT SIGNALS PRODUCT WARRANTY... - Page 3 Welcome Thank you for purchasing an ARTHUR HOLM product. Our product range has been designed to create the perfect meeting room, where the screens are a part of the interior design as well as essential communication tools. Please, read this installation and operating instructions carefully and keep them in a safe place for future reference.
-
Page 4: Ec Regulations & Security
EC Regulations and Security ATTENTION: Do not disassemble or modify the device in any way. This symbol warns of the presence of dangerous un-insulated voltages inside some of the components, of sufficient magnitude to expose people to risk of electronic shock. This symbol draws attention to important use and maintenance instructions in the manual that accompanies the unit. -
Page 5: Safety Instructions
Safety instructions POWER AND EXTENSIONS CORDS – Use the appropriate power cord with the correct plug type – Do not overload wall outlets or power cords – Make sure the total ampere passed through a extension cord does not exceed the maximum allowed by the cable used –... -
Page 6: Box Contents
– Mechanism with clip system to integrate the monitor into the wall – Finished front in aluminium (DA) – Finished front in brushed stainless steel (DI) – Finished front in glass (DG) AH10 DA/AH10 DI/AH10 DG 10" monitor AH12 DA/AH12 DI/AH12 DG 12" monitor AH12 DA Wide/AH12 DI Wide /AH12 DG Wide 12"... -
Page 7: Controls
Controls OSD MONITOR CONTROL The OSD buttons, to control or configure the monitor, are located on the upper body housing of the system POWER SOURCE RIGHT LEFT DOWN SELECT MENU POWER Monitor power on/off Indicates operation status SOURCE Signal input selection RIGHT Cursor control right on OSD menu LEFT... -
Page 8: Osd Menu
OSD menu ACCESSING THE MENU SYSTEM – With the OSD off, push the MENU button to activate the main OSD menu – Press the UP and DOWN button to move from one function to another. Please refer to the following sections below to view a complete list of all the functions available for the monitor –... - Page 9 OSD menu SCREEN Aspect Ratio Aspect image on screen 16:9 Just scan Noise Reduction Adjusts the image noise filter Middle High Default Screen (Only for analogue signals) Auto Adjust Horizontal Pos. Vertical Pos. Size Phase Backlight Adjust the backlight screen level Color Range 0 –...
- Page 10 OSD menu SETUP OSD Language Selects the OSD language Restore Factory Default Adjusts the parameters as factory Blending OSD window transparency Middle High OSD Duration Adjusts the time that the OSD menu window remains on screen Software Update (USB) Used for firmware upgrade Mirror 0: Image with no flip 1: Vertical flip...
-
Page 11: Input Connectors
Input connectors DVI 1/DVI A DVI-I input signal. Connect a DVI (digital) input signal and select DVI 1 on the OSD monitor menu. Use a DVI to VGA adapter to connect an ARGB (analogue) input signal and select DVI-A on the OSD monitor menu DVI 2 DVI-D input signal. -
Page 12: Input Signals
Input Signals AH10 DA/AH10 DI/AH10 DG RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type 800x600@60Hz 37.879 60.317 Progressive 800x600@72Hz 48.077 72.188 Progressive 800x600@75Hz 46.875 75.000 Progressive AH12 DA/AH12 DI/AH12 DG RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type 800x600@60Hz 37.879... - Page 13 Input Signals AH15 DA/AH15 DI/AH15 DG RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type 800x600@60Hz 37.879 60.317 Progressive 800x600@72Hz 48.077 72.188 Progressive 800x600@75Hz 46.875 75.000 Progressive 1024x768@60Hz 48.363 60.005 Progressive 1024x768@70Hz 56.476 70.070 Progressive 1024x768@75Hz 60.023 75.030 Progressive 1920x1080@60Hz 67.500 60.000 Progressive...
- Page 14 Input Signals AH17 DA/AH17 DI/AH17 DG RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type 800x600@60Hz 37.879 60.317 Progressive 800x600@72Hz 48.077 72.188 Progressive 800x600@75Hz 46.875 75.000 Progressive 1024x768@60Hz 48.363 60.005 Progressive 1024x768@70Hz 56.476 70.070 Progressive 1024x768@75Hz 60.023 75.030 Progressive 1280x720@60Hz 44.697 59.915 Progressive...
- Page 15 Input Signals AH19 DA/AH19 DI/AH19 DG RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type 800x600@60Hz 37.879 60.317 Progressive 800x600@72Hz 48.077 72.188 Progressive 800x600@75Hz 46.875 75.000 Progressive 1024x768@60Hz 48.363 60.005 Progressive 1024x768@70Hz 56.476 70.070 Progressive 1024x768@75Hz 60.023 75.030 Progressive 1280x720@60Hz 44.697 59.915 Progressive...
- Page 16 Input Signals AH AH22 DA/AH22 DI/AH22 DG RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type 800x600@60Hz 37.879 60.317 Progressive 800x600@72Hz 48.077 72.188 Progressive 800x600@75Hz 46.875 75.000 Progressive 1024x768@60Hz 48.363 60.005 Progressive 1024x768@70Hz 56.476 70.070 Progressive 1024x768@75Hz 60.023 75.030 Progressive 1280x720@60Hz 44.697 59.915...
- Page 18 Information on Disposal for users of waste of Electrical & Electronic equipment This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis.
-
Page 19: Product Warranty
Product Warranty Albiral Display Solutions S.L WARRANTY - Valid from January 2016 This warranty covers the original product purchase for a period of 24 months from the date of purchase. GENERAL WARRANTY TERMS A) Parts. During the above mentioned warranty period, the replacement of any electronic and mechanical parts against any defects in manufacturing. - Page 20 Patents ES 1051718UU ES 1061088UU EP 1574150A1 ES 1068395 U WO 2009141744 Fàtima 25, Sant Hipòlit de Voltregà MU 170180 ES00 08512 Barcelona – Spain EP 2289367 A1 tel: +34 93 850 23 76 / 23 83 MU 17301 ES00 fax: +34 93 850 25 50 / 23 72 MU 17322 ES00 web: www.arthurholm.com...
