ATTACHING THE BACKPLATE

TERMINAL SCREW M4 x 27 DIN7984
STEP 2
Thermal Pad F 1.0mm

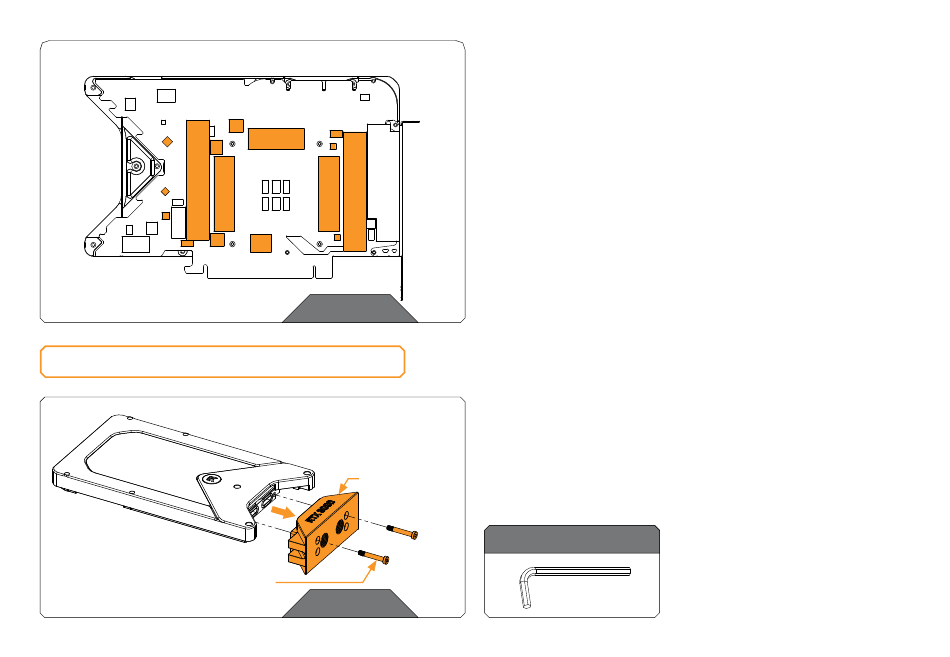

Once cut to size thermal pads should be applied to the PCB as
shown in the image.
STEP 2
STEP 1
For easier installation of the Active Backplate, the preinstalled
terminal and metal plate must be removed. Unscrew the two (2)
Terminal screws (as shown in the image) and remove the terminal.
Save the mention material for later use.
AB TERMINAL
For this Step, you will need:
STEP 1
- 9 -
Allen Key 2.5 mm
