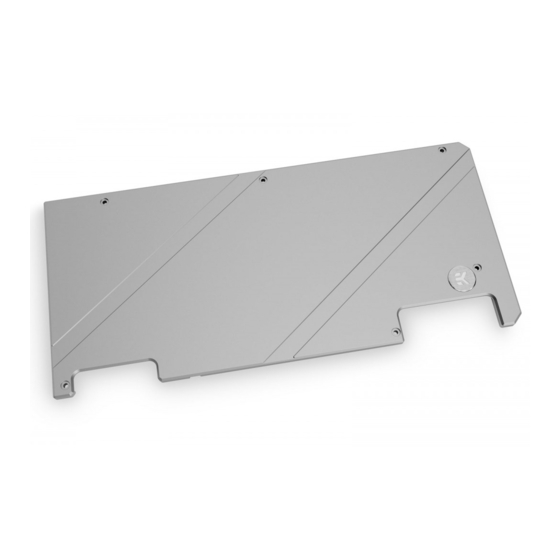

- Page 1 EK-Quantum Vector Strix RTX 3070/3080/3090 Backplate BACKPLATE USER GUIDE...
- Page 2 This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS BACKPLATE DIMENSIONS INSTALLING THE BACKPLATE PREPARING YOUR GRAPHIC CARD CUTTING AND PLACING THERMAL PADS ATTACHING THE BACKPLATE IMPORTANT DISCLOSURES IMPORTANT NOTICE WARRANTY REQUIRED TOOLS SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
BOX CONTENTS Mounting mechanism - You may not need all the screws, mounting mechanism is universal! M2,5x4 AX1 Screw (3 pcs) M2,5x6 AX1 Screw (7 pcs) EK-Quantum Vector Strix RTX 3070/3080/3090 Backplate M2,5x7 AX1 Screw (7 pcs) M2.5 Nut (5 pcs) PVC Washer M2.5 (10 pcs) -
Page 5: Backplate Dimensions
BACKPLATE DIMENSIONS 280,90 mm - 5 -... -
Page 6: Installing The Backplate
INSTALLING THE BACKPLATE STEP 1 PREPARING YOUR GRAPHIC CARD First complete the installation of your EK-Quantum Vector Strix RTX 3070/3080/3090 water block according to its installation manual. If water block is already installed, remove the six (6) AX1 screws and their PVC washers. Mentioned screws and washers are marked in the image. - Page 7 Once cut to size thermal pads should be applied to the backplate as EK-Quantum Vector Strix RTX 3080: shown in the image. Thermal Pad G 1.0 mm Thermal Pad Thermal Pad G 1.5 mm G 2.0 mm EK-Quantum Vector Strix RTX 3090: Thermal Pad G 1.0 mm...
-
Page 8: Attaching The Backplate
STEP 4 ATTACHING THE BACKPLATE M2.5x7 AX1 Screw Place the backplate on to the PCB aligning all of the holes. Position an M2.5x7 AX1 screw in each of the (6) mounting holed marked below and then tighten them evenly using a Phillips head screwdriver. -
Page 9: Warranty
WARRANTY Our products are warranted against defects in materials or workmanship for a period of 24 months beginning from the date of delivery to the final user. During this period, products will be repaired or have parts replaced at our discretion provided that: (I) the product is returned to the agent from whom it was purchased;... -
Page 10: Support And Service
SUPPORT AND SERVICE In case you need assistance, please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
