EK-Quantum Vector FE RTX 3090 Quick Start Manual page 10

M2.5 x 20
M3 x 25 DIN7991
M3 x 20
DIN7991
STEP 2
STEP 3
STEP 2

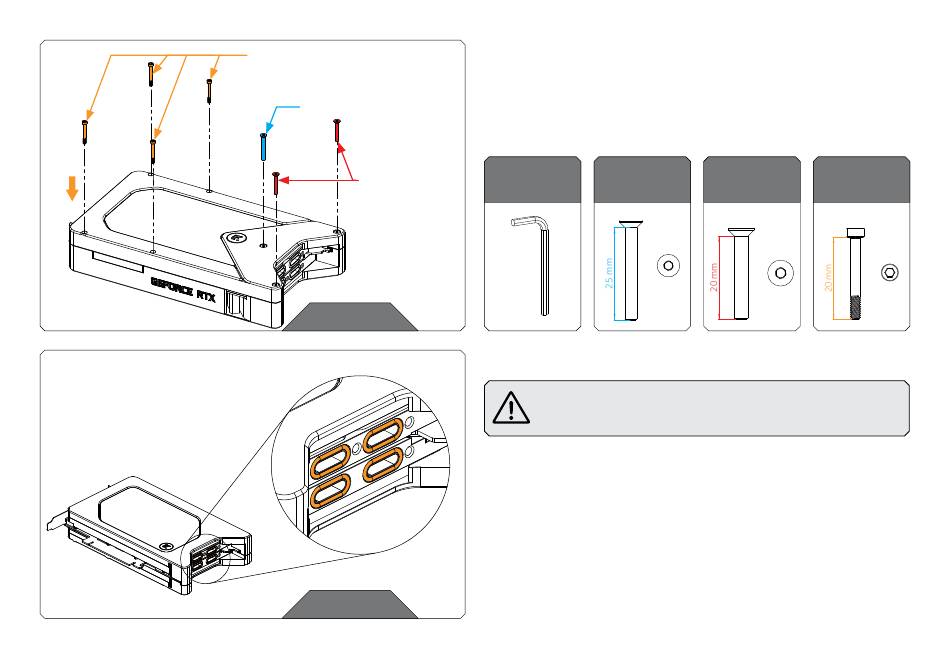

Place the active backplate on the PCB and make sure all holes are
aligned. Position the screws in each of the seven (7) mounting
holes (as shown in the image) and tighten them evenly with Allen
Key 2 mm.
For this Step, you will need:
Allen Key M3x25 DIN7991
2 mm Screw (1 pc)
STEP 3
Before attaching the terminal, make sure that four (4)
O-rings are IN terminal slots, as shown in the image.
- 10 -
M3x20 7991DIN M2.5x20
Screw (2 pcs) Screw (4 pcs)
