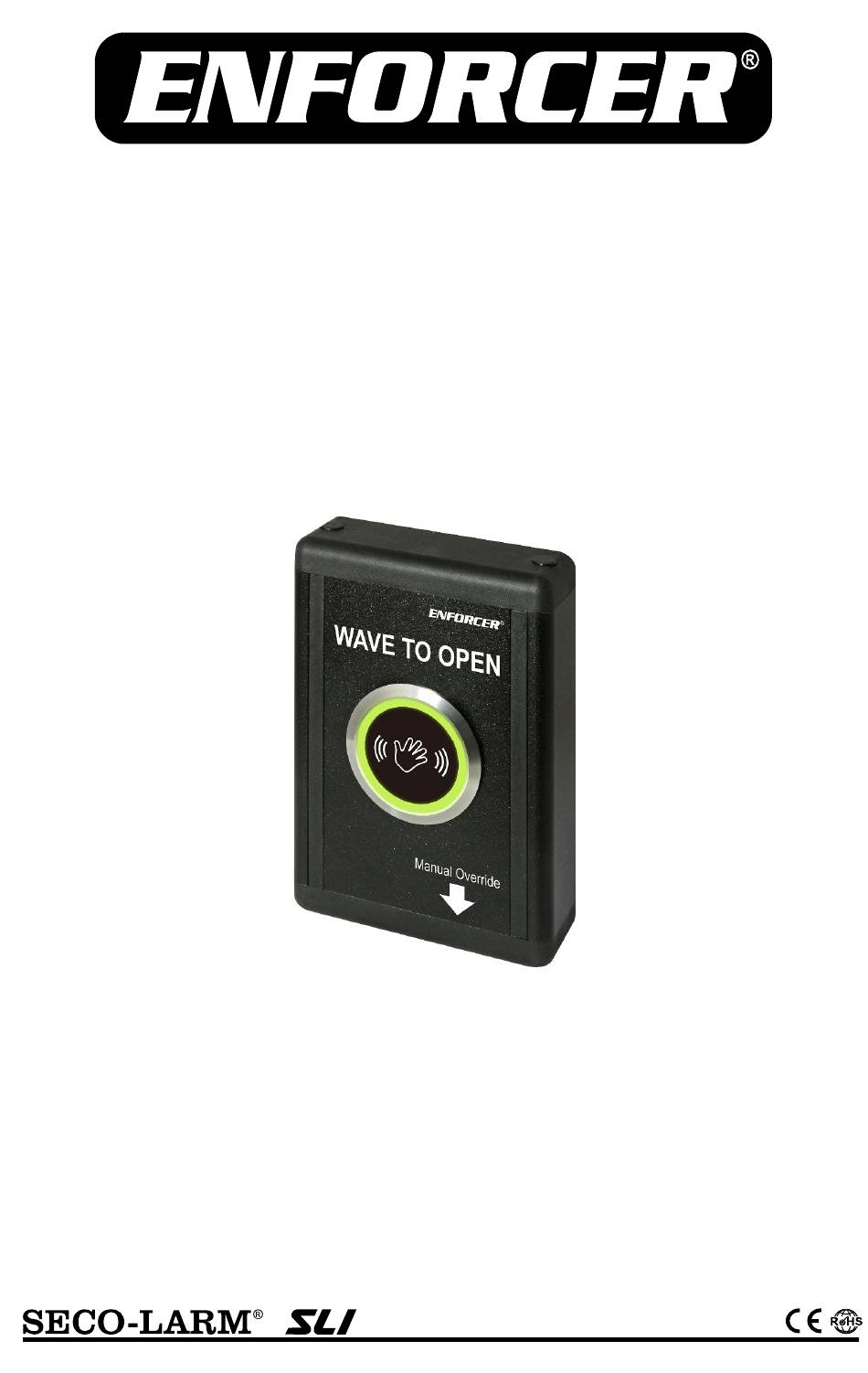

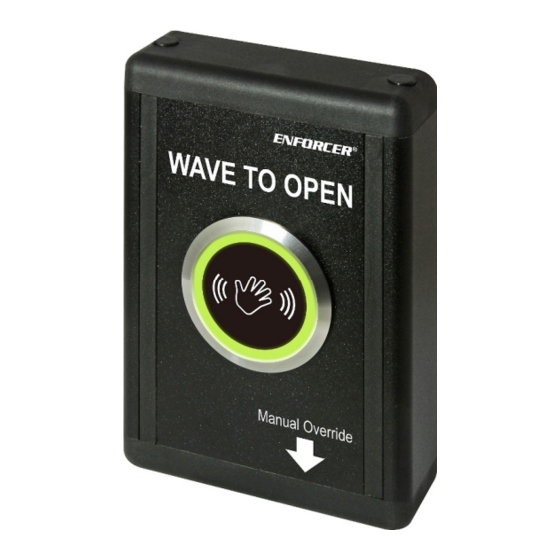

Surface-Mount Wave-to-Open Sensor

Features:

• Adjustable sensor range up to 6" (15cm)

• 1A relay, adjustable trigger duration 0.5~30

seconds or toggle

• LED illuminated sensor area for easy

identification

SD-9773-KNEVQ

with Manual Override Button

Manual

• Selectable LED colors (turns from red to

green or green to red) when sensor is

activated

• Aluminum alloy and ABS plastic housing

• IP54 Weather-resistant for outdoor use

™

Table of Contents

Do you have a question about the SECO-LARM SD-9773-KNEVQ and is the answer not in the manual?

Page 1 SD-9773-KNEVQ Surface-Mount Wave-to-Open Sensor with Manual Override Button Manual Features: • Adjustable sensor range up to 6" (15cm) • Selectable LED colors (turns from red to green or green to red) when sensor is • 1A relay, adjustable trigger duration 0.5~30 activated seconds or toggle •...
Page 2 ENFORCER Surface-Mount Wave-to-Open Sensor with Manual Override Button Introduction: The ENFORCER Surface-Mount Wave-to-Open Sensor with Manual Override Button is a full-featured exit plate which uses IR technology to allow egress from a protected area or activate a device with the simple wave of a hand.
Page 3 ENFORCER Surface-Mount Wave-to-Open Sensor with Manual Override Button Mounting and Wiring Diagram: 5-Pin Terminal Use disassembled enclosure Relay (N.O.) Sensor base as a template to mark the Relay (COM) plate locations of the 4 mounting holes Relay (N.C.) – GND and wiring hole for drilling.
