Outdoor Wave-to-Open Sensors
SD-9263-KSVQ
Language
Slimline
English
SD-9163-KSQ
Spanish
SD-9163-KS1Q
French
SD-9163-KS2Q
English
SD-9163-KSVQ
w/ mechanical
override button
Featuring:
• Built-in Timer (0.8~30 seconds or toggle)
• Programmable LED (Red to Green or Green to Red)
The ENFORCER Outdoor Wave-to-Open Sensor is a full-featured exit plate which uses IR
technology to allow egress from a protected area or activate a device with the simple wave of a
hand. Since no touch is required, this sensor is suitable for use in hospitals, clinics, labs,
cleanrooms (to reduce the risk of contamination), schools, factories, or offices.
*Spanish and French faceplates also available by special order
™

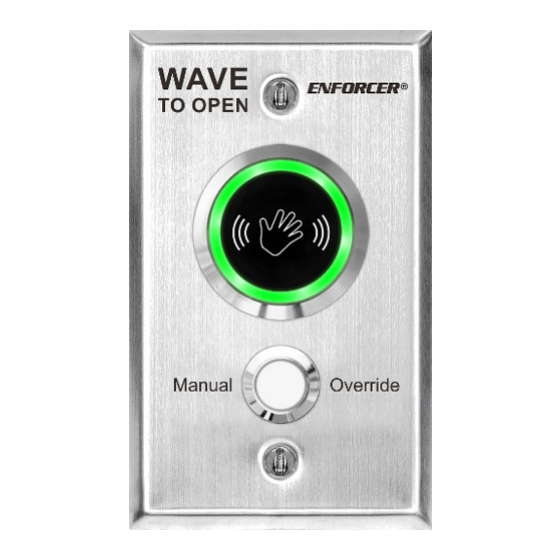

SD-9163-KSVQ
shown
Single-Gang
SD-9263-KSQ
SD-9263-KS1Q
SD-9263-KS2Q
SD-9263-KSVQ
Manual
shown
European Plate
SD-9363-KSQ
SD-9363-KS1Q
SD-9363-KS2Q
SD-9363-KSVQ*
SD-9463-KSVQ
shown
Double-Gang
SD-9463-KSVQ*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ENFORCER SLI SECO-LARM SD-9163-KSQ
Summary of Contents for ENFORCER SLI SECO-LARM SD-9163-KSQ
- Page 1 • Programmable LED (Red to Green or Green to Red) The ENFORCER Outdoor Wave-to-Open Sensor is a full-featured exit plate which uses IR technology to allow egress from a protected area or activate a device with the simple wave of a hand.
- Page 2 Wave-to-Open Sensor ® ENFORCER Features: • Adjustable sensor range up to 7" (18cm) • LED illuminated sensor area for easy identification • Weather resistant for outdoor use (except models with mechanical override button) • Selectable LED colors (turns from red to green or green to red) to show sensor •...
- Page 3 Wave-to-Open Sensor ® ENFORCER Wiring Diagram: Wiring for Wave-to-Open Sensor Wiring for Wave-to-Open Sensor with Form C Mechanical Override Button (SD-9263-KSQ shown) (SD-9263-KSVQ shown) Red Wire: +12~24VDC Red Wire: +12~24VDC Red Wire: +12~24 VDC Red Wire: +12~24 VDC Brown Wire: Ground (-)
- Page 4 Wave-to-Open Sensor ® ENFORCER Sample Installation: Typical installation with an electric lock: Override button is prewired in the factory No further wiring necessary Care and Cleaning for the SD-9x63 Series Sensor: The sensor requires special care to ensure reliability and a long operating life.
