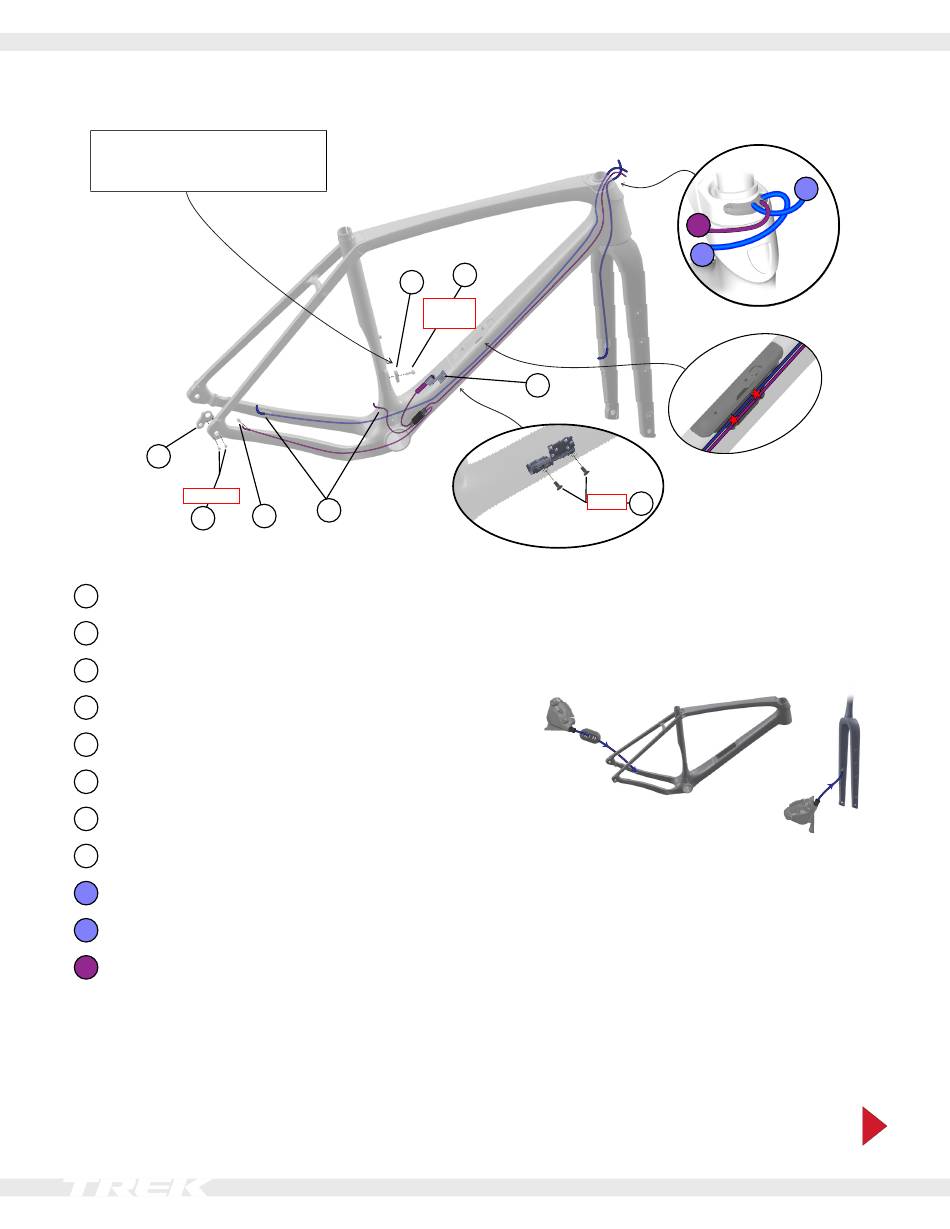

Brake/shift routing — Di2
NOTE: Tighten the front derailleur
bolt (6) to the manufacturer's
specifications.
1
2-3Nm
2
1 Rear derailleur hanger — W524188
2 Rear derailleur hanger bolts — W524884
Di2 exit grommet — 600208
3
4 Housing grommets — W330578
5 Front derailleur washer — W531901
6 Front derailleur bolt — W543903
7 Battery holder and cable guide — 588188
8 Screws (M4x9mm) — 588188
Front brake hose
9
Rear brake hose
10
Di2 wires
11
5
6.5Nm
max
4
3
6
7
3Nm
8
Route the brake hoses
1. Connect the calipers to the brake hoses.
2. Route the rear brake hose through the grommet (3).
Route both brake hoses as shown.
3. Attach the calipers to the chainstay and fork. Do not
fully torque the mounting bolts until the calipers are
aligned correctly.
2022 Checkpoint SL/SLR
9
11
10
6
