Trek 2022 CHECKPOINT SL Service Manual Supplement page 5

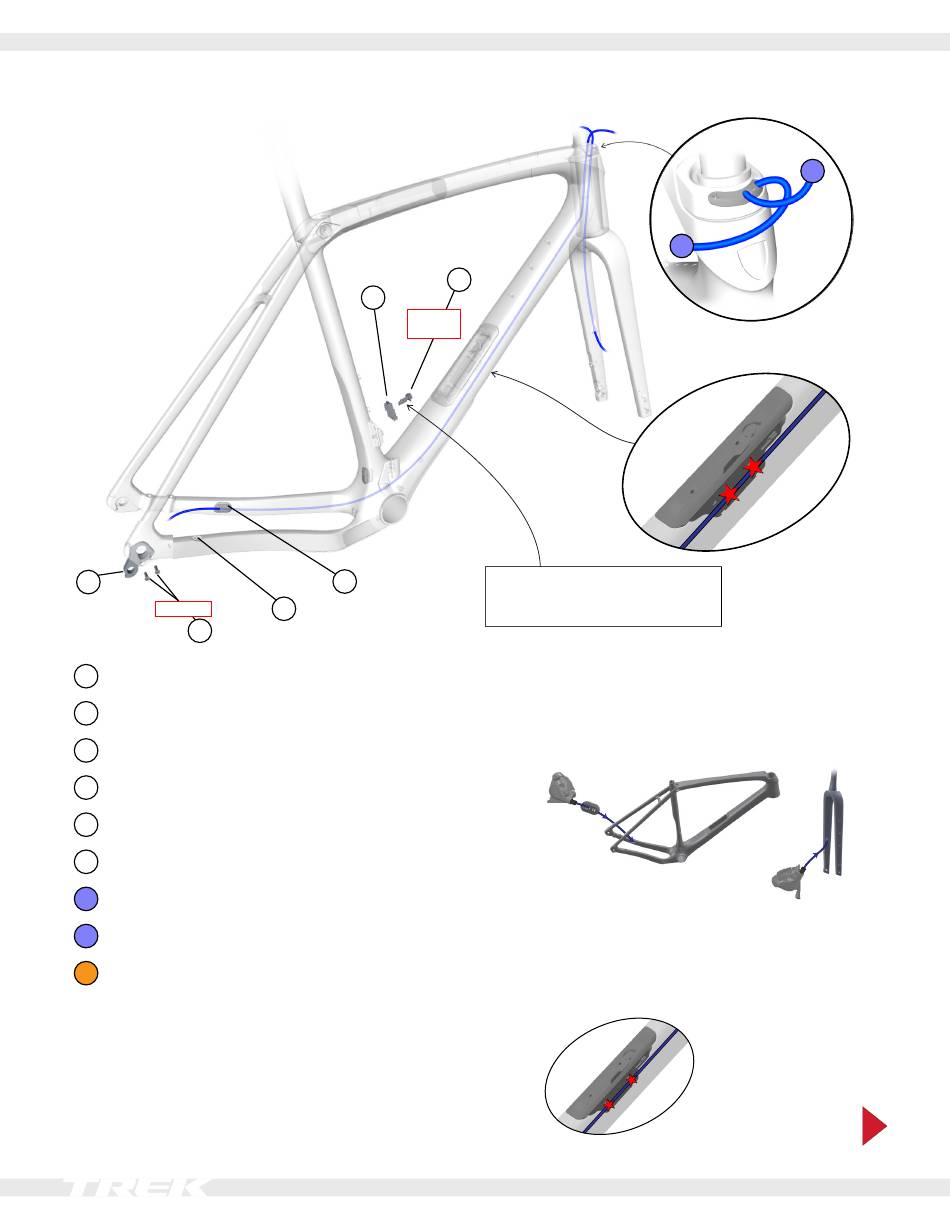

Brake routing — eTap
1
2-3Nm
2
1 Rear derailleur hanger — W524188
2 Rear derailleur hanger bolts — W524884
Plug — W330578
3
4 Housing grommet — W330578
5 Front derailleur washer — W531901
6 Front derailleur bolt — W543903
Front brake hose
7
Rear brake hose
8
Dropper post cable
9
6
5
6.5Nm
max
4
3
NOTE: Tighten the front derailleur
bolt (6) to the manufacturer's
specifications.
Route the brake hoses
1. Connect the calipers to the brake hoses.
2. Route the rear brake hose through the grommet (4).
Route both brake hoses as shown.
3. Attach the calipers to the chainstay and fork. Do not
fully torque the mounting bolts until the calipers are
aligned correctly.
4. Zip tie the rear brake hose to the outside of the
storage door frame.
2022 Checkpoint SL/SLR
7
8
4
