Trek 2022 CHECKPOINT SL Service Manual Supplement page 10

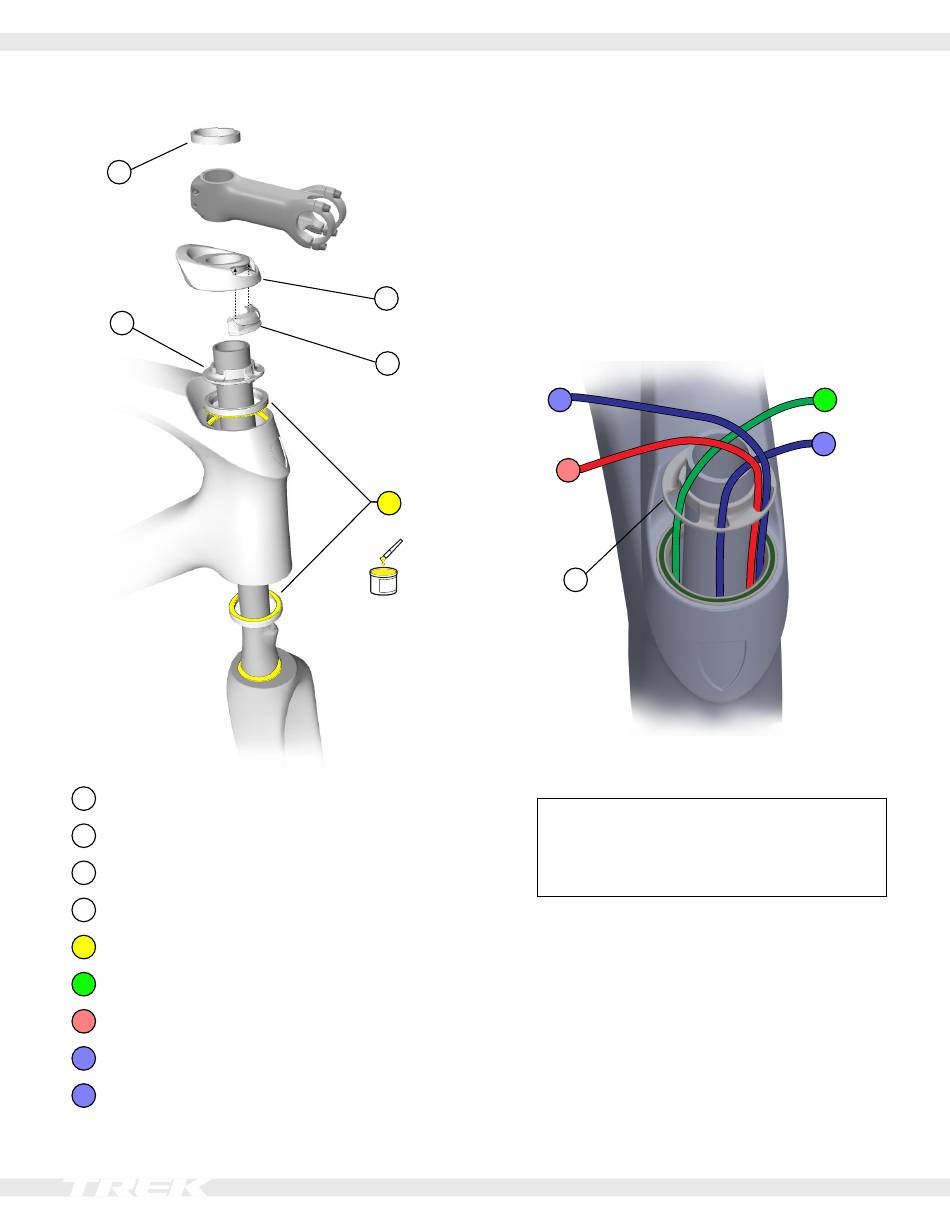

Headset and fork
1
4
1 Spacer (5mm) — 5253930
2 Frame routing cap — W5253579
3 Frame routing cap grommet — W5253580
4 Headset split ring — W5266050
5 Headset bearings — W540243
Front derailleur cable
6
Rear derailleur cable
7
8 Front brake hose
Rear brake hose
9
Install the headset
1. Clean the steerer tube using isopropyl alcohol.
2. Grease both bearings (5), the fork crown race, and
the inside of the head tube as shown to the left.
3. Insert the fork into the head tube.
TIP: Support the fork with a table during the
assembly.
2
4. Route the shift cables and brake hoses through
the split ring (4) as shown below (see pages 2-7 for
different routing examples).
3
9
5
5. Complete the headset assembly as shown to the left.
NOTE: If cutting the steerer tube, cut 2mm above
the stem. Make sure the stem is in its final position
with the required spacers underneath. The 2mm of
clearance is required to hold the 5mm spacer (1)
above the stem in place.
2022 Checkpoint SL/SLR
7
4
Mechanical routing example
6
8
9
