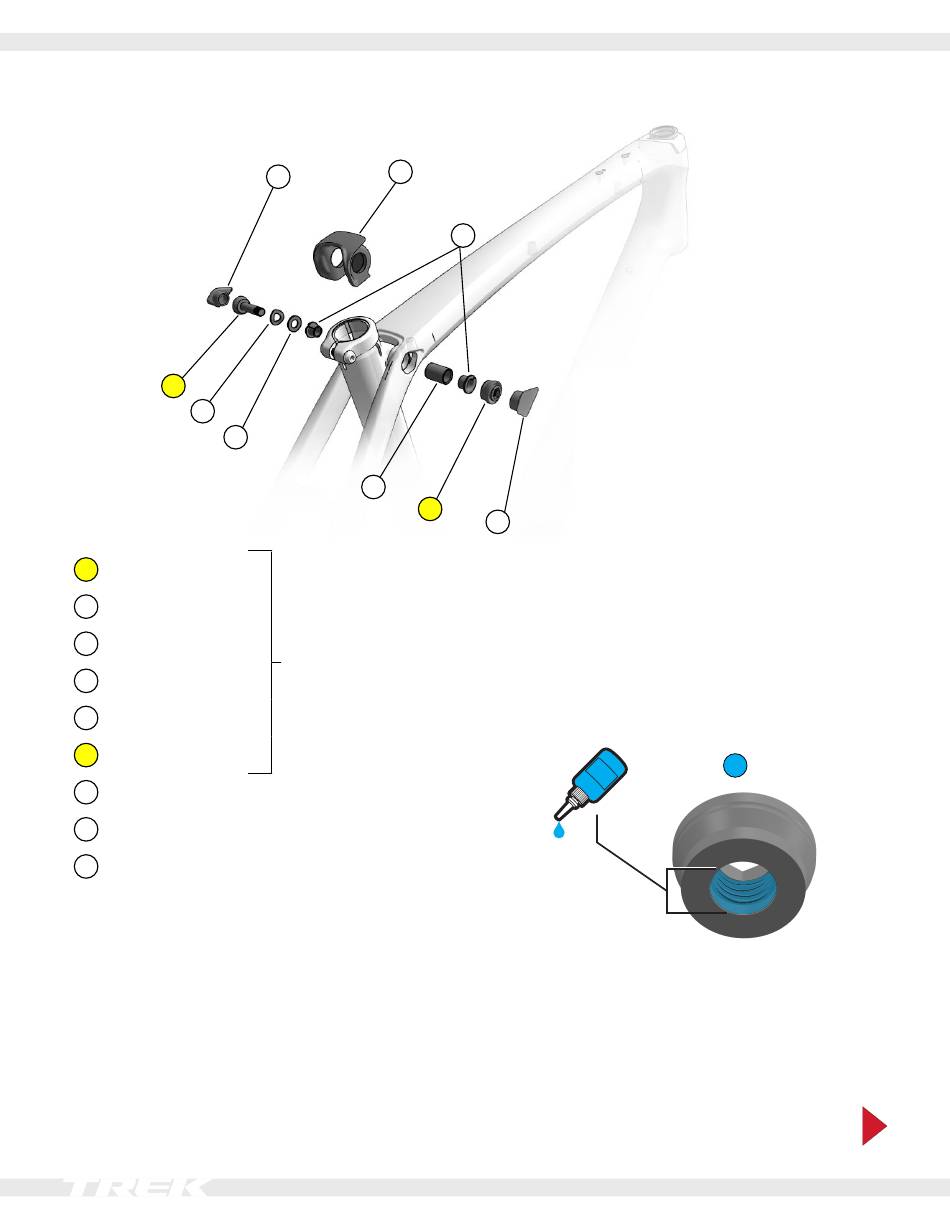

Trek 2022 CHECKPOINT SL Service Manual Supplement page 11

IsoSpeed — SL
1
2
3
1 Bolt
2 Wave washer
3 Washer
4 Flanged bushing
5 Cylindrical bushing
6 Nut
7 Cap, non-driveside (as shown) — 5253577
8 Cap, driveside (as shown) — 5253576
Grommet — W5253578
9
9
7
5
6
kit W569265
4
8
Install the IsoSpeed
1. Carefully remove the IsoSpeed covers (7, 8) with a
paint-safe plastic pry bar.
2. Remove the bolt (1), nut (6), and washers.
3. Use a 50/50 isopropyl alcohol/water mix to clean the
nut threads (6), bolt threads (1), and the inside of the
bushings (4, 5).
4. Apply threadlocker to the nut threads.
2022 Checkpoint SL/SLR
