Trek 2022 CHECKPOINT SL Service Manual Supplement page 3

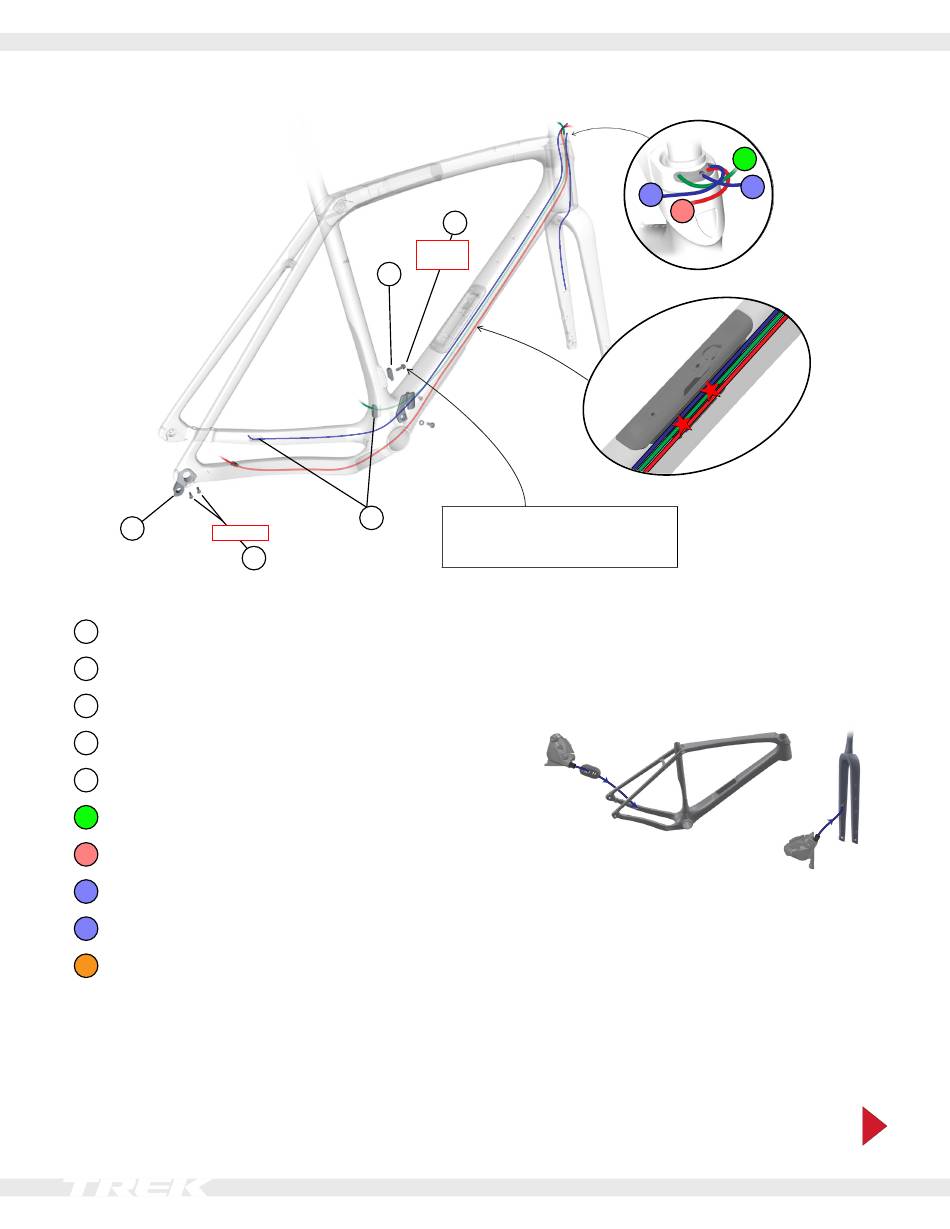

Brake/shift routing — mechanical
1
2-3Nm
1 Rear derailleur hanger — W524188
2 Rear derailleur hanger bolts — W524884
3 Housing grommets — W330578
4 Front derailleur washer — W531901
5 Front derailleur bolt — W543903
Front derailleur cable
6
7 Rear derailleur cable
Front brake hose
8
Rear brake hose
9
Dropper post cable
10
6.5Nm
4
3
2
5
max
NOTE: Tighten the front derailleur
bolt (5) to the manufacturer's
specifications.
Route the brake hoses
1. Connect the calipers to the brake hoses.
2. Route the rear brake hose through the grommet (3).
Route both brake hoses as shown.
3. Attach the calipers to the chainstay and fork. Do not
fully torque the mounting bolts until the calipers are
aligned correctly.
2022 Checkpoint SL/SLR
6
8
9
7
2
