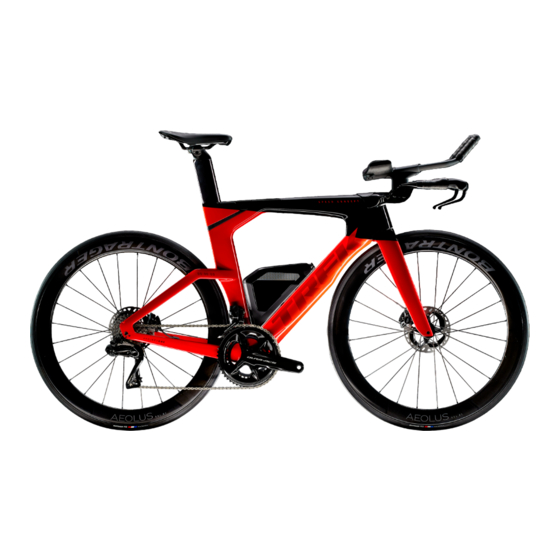

Trek SPEED CONCEPT SLR 2022 Service Manual Supplement
  1. Manuals
  2. Brands
  3. Trek Manuals
  4. Bicycle
  5. SPEED CONCEPT SLR 2022
  6. Service manual supplement

Trek SPEED CONCEPT SLR 2022 Service Manual Supplement

Hide thumbs

Advertisement

Quick Links

Download this manual
2021 SPEED CONCEPT
2022 SPEED CONCEPT
SERVICE MANUAL SUPPLIMENT
SERVICE MANUAL SUPPLEMENT

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPEED CONCEPT SLR 2022 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Trek SPEED CONCEPT SLR 2022

Summary of Contents for Trek SPEED CONCEPT SLR 2022

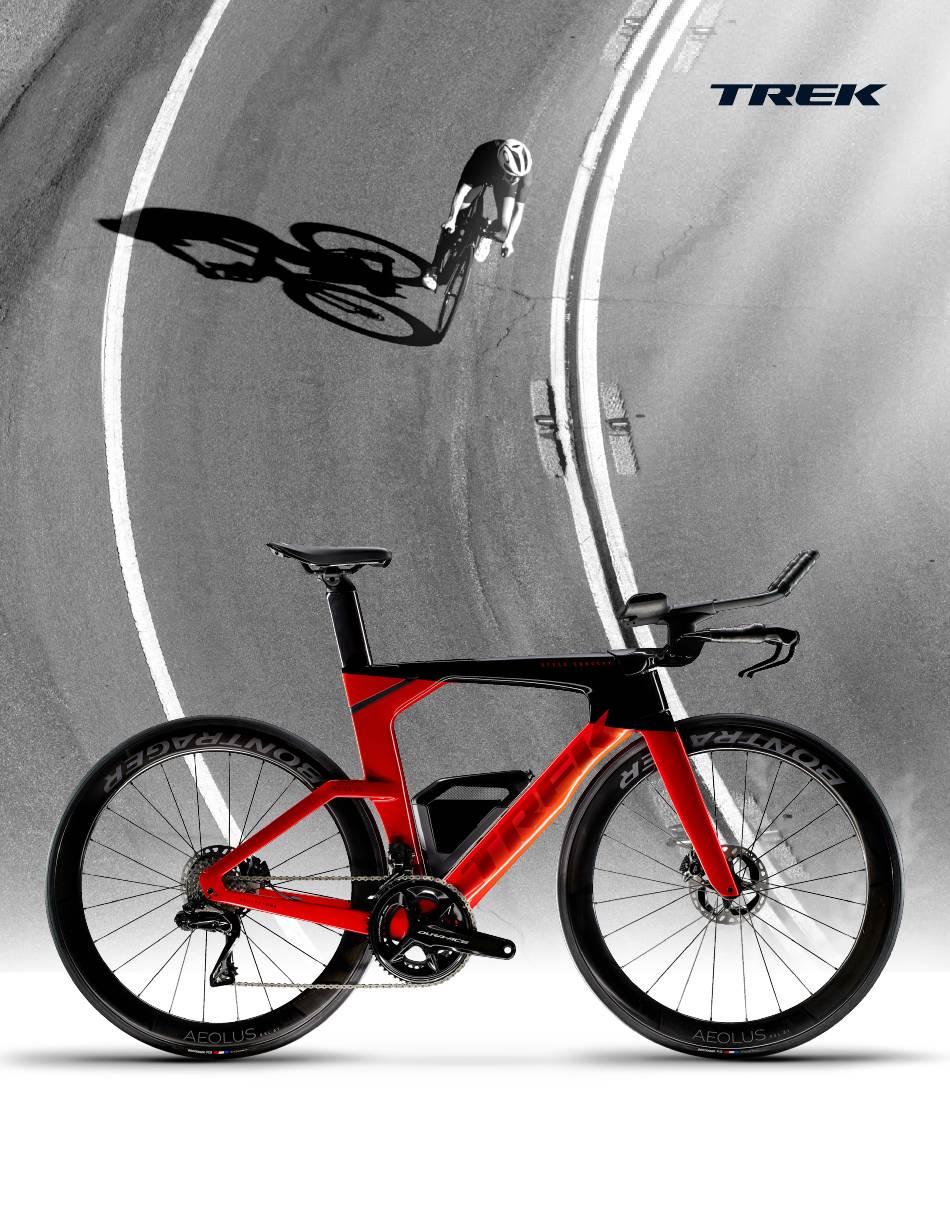

  • Page 1 2021 SPEED CONCEPT 2022 SPEED CONCEPT SERVICE MANUAL SUPPLIMENT SERVICE MANUAL SUPPLEMENT...
  • Page 2   Zip tie locker applied before re-assembly. If threadlocker is not applied, the fasteners may loosen which could damage the bicycle and result in injury to the rider. Copyright 2021 Trek Bicycle Corporation All Rights Reserved...
  • Page 3 Certain build portions may have been completed already—skip to the section you need. Scope of this manual This manual does not contain detailed instructions for components not produced by Trek, such as shift levers and brake calipers. Refer to the original manufacturer for more information.
  • Page 4 2022 Speed Concept SLR/TT Brake/shift routing — Di2 4-6Nm 5.2Nm 0.7Nm Route the brake hoses Rear derailleur hanger — W524188 Connect the calipers to the brake hoses. Rear derailleur hanger bolts — W524884 Route the rear brake hose through the grommet (3) and foam sleeve (8).
  • Page 5 2022 Speed Concept SLR/TT Brake/shift routing — Di2 (continued) Route the shift wires Di2 wiring overview Route and connect the three wires to the battery as shown below. TIP: Tape the wire sticking out of the head tube to the outside of the frame.
  • Page 6 2022 Speed Concept SLR/TT Brake routing — eTap 5.2Nm 0.7Nm Route the brake hoses Rear derailleur hanger — W524188 Connect the calipers to the brake hoses. Rear derailleur hanger bolts — W524884 Route the rear brake hose through the grommet Rear brake grommet —...
  • Page 7 2022 Speed Concept SLR/TT T47 bottom bracket Install the bottom bracket Spacers required Apply grease to the threads on both sides of the The table below contains bottom bracket/crank frame. combinations that require spacers. Your bicycle may have other combinations that do not require spacers. Spacers required Crank Bottom bracket...
  • Page 8 2022 Speed Concept SLR/TT Headset and basebar/stem Install the headset and basebar/stem Clean the steerer tube using 50/50 isopropyl alcohol/water mix. 5.2Nm 25mm Install the steer stop. 9-10Nm High 35mm Install the compression plug with the arrow facing Middle forward. 15mm 35mm 15mm...
  • Page 9 2022 Speed Concept SLR/TT Headset and basebar/stem (continued) Grease both bearings (9, 10), the fork crown race, Insert the fork into the head tube. Route the and both head tube bearing bores (upper and lower). split ring (8) down the brake hoses and wire (if Di2). Place the lower bearing (10) on the fork crown race and the upper bearing (9) in the top of the head tube.
  • Page 10 2022 Speed Concept SLR/TT Headset and basebar/stem (continued) Attach the faceplate (4) to the basebar/stem. Loosely Tighten the non-driveside stems bolts until the tighten the stem bolts. faceplate has a close fit with the steerer tube. NOTICE: Do not fully torque these bolts — this will prevent the top cap from obtaining the proper preload.
  • Page 11 2022 Speed Concept SLR/TT Cockpit — towers 25mm 35mm 40mm 5.2Nm 60mm 50mm Near Middle 6.8Nm 0° 0° 7° 14° 1.5Nm 14° 0mm — 5257680 25mm — 5257695 15mm — 5257681 Tower bolts 35mm — 5257696 30mm — 5257682 Tower 40mm —...
  • Page 12 2022 Speed Concept SLR/TT Cockpit — aerobars 5.2Nm 5.2Nm Arm pads — 5263385 Arm pad holders — 5263386 Arm pad bolts — 330683 Arm pad washers — W5263784 Drive side — W5263882 Bolt covers Non-drive side — W5263883 Extension bolts — 5261534 Dogbone washer —...
  • Page 13 2022 Speed Concept SLR/TT Cockpit — install the towers and aerobars Assemble the towers. Insert and torque the tower Route the shift wires through the aerobar assembly. topper bolts to 5.2Nm. NOTE: Your setup may have different parts depending on spacers and tower bases used. 5.2Nm Attach the aerobar assembly to the towers.
  • Page 14 2022 Speed Concept SLR/TT Cockpit — install the towers and aerobars (continued) Route the wires out the junction box cavity and seat Attach the arm pad holders (2) and arm pads (1). the aerobar assembly on the basebar/stem. Loosely OPTIONAL: For further adjustment, you can move tighten the bolts.
  • Page 15 2022 Speed Concept SLR/TT Cockpit — install the towers and aerobars (continued) Adjust the extension bars — to the rider’s fit — forward 11. Connect the wires to the junction(s) as shown below. or backward. Insert them into the basebar/stem and attach the junction cover.
  • Page 16 2022 Speed Concept SLR/TT Seatpost — SLR 9-11Nm 9-11Nm 10Nm 9-11Nm NOTICE: Do not apply grease to the back of the Short — 5257624 Seatpost kit (fixed) wedge (5) where it contacts the seatpost. Only Long — 5257625 apply grease to the parts as shown above. Short —...
  • Page 17 2022 Speed Concept SLR/TT Seatpost — TT 9-11Nm 9-11Nm 10Nm 9-11Nm NOTICE: Do not apply grease to the back of the Short — 5257624 Seatpost kit (fixed) wedge (5) where it contacts the seatpost. Only Long — 5257625 apply grease to the parts as shown above. Short —...
  • Page 18 2022 Speed Concept SLR/TT IsoSpeed — SLR NOTICE: Only authorized dealers should perform maintenance on the IsoSpeed. Improper handling, tools used, or torque applied to these parts may result in damage to the IsoSpeed parts or cause seatpost movement. 6.8Nm Tongue Servicing the IsoSpeed Pivot bolt...
  • Page 19 2022 Speed Concept SLR/TT IsoSpeed — SLR (continued) Apply grease to the parts shown below. Reassemble all parts. Torque the tongue bolt (6) and pivot bolt (1) to the values shown on page 17. Clean the inside of the tongue and seatmast grommet (10) with 50/50 isopropyl alcohol/water mix.
  • Page 20 2022 Speed Concept SLR/TT Chainkeeper Bolt (M4x22mm) Chainkeeper kit W566021 Flat washer (M5x10mm) Screw (M5x16mm) Adjust the chainkeeper Shift to the lowest gear (largest rear cassette cog) and inner chainring. Loosen the bolt (1) on the chainkeeper. Rotate the loose piece (shown in red below) so there is 1mm of horizontal clearance to the chain. Tighten the bolt (1) to 1Nm.
  • Page 21 2022 Speed Concept SLR/TT Accessories — SLR Downtube bottle Bento box NOTE: The removable storage box, dividers, and cover are dishwasher safe (top rack only). Water bottle — W5254706 Water bottle cage — W5254705 Bolts (M5x12mm) — 510973 Bento box kit — 5276409 Tool holder/flat kit Tool holder —...
  • Page 22 2022 Speed Concept SLR/TT Specifications Rear hub OLD 142mm 142mm Upper fork steerer tube OD 28.6mm 28.6mm 38.8mm 38.8mm Lower fork steerer tube OD Bottom bracket type/width T47/85.5mm T47/85.5mm Brake rotor diameter min/max 140/160mm 140/160mm 45mm 45mm (SRAM) (SRAM) Chainline (2x) 44.5 44.5 (Shimano)
