Summary of Contents for Trek DOMANE SL 2023

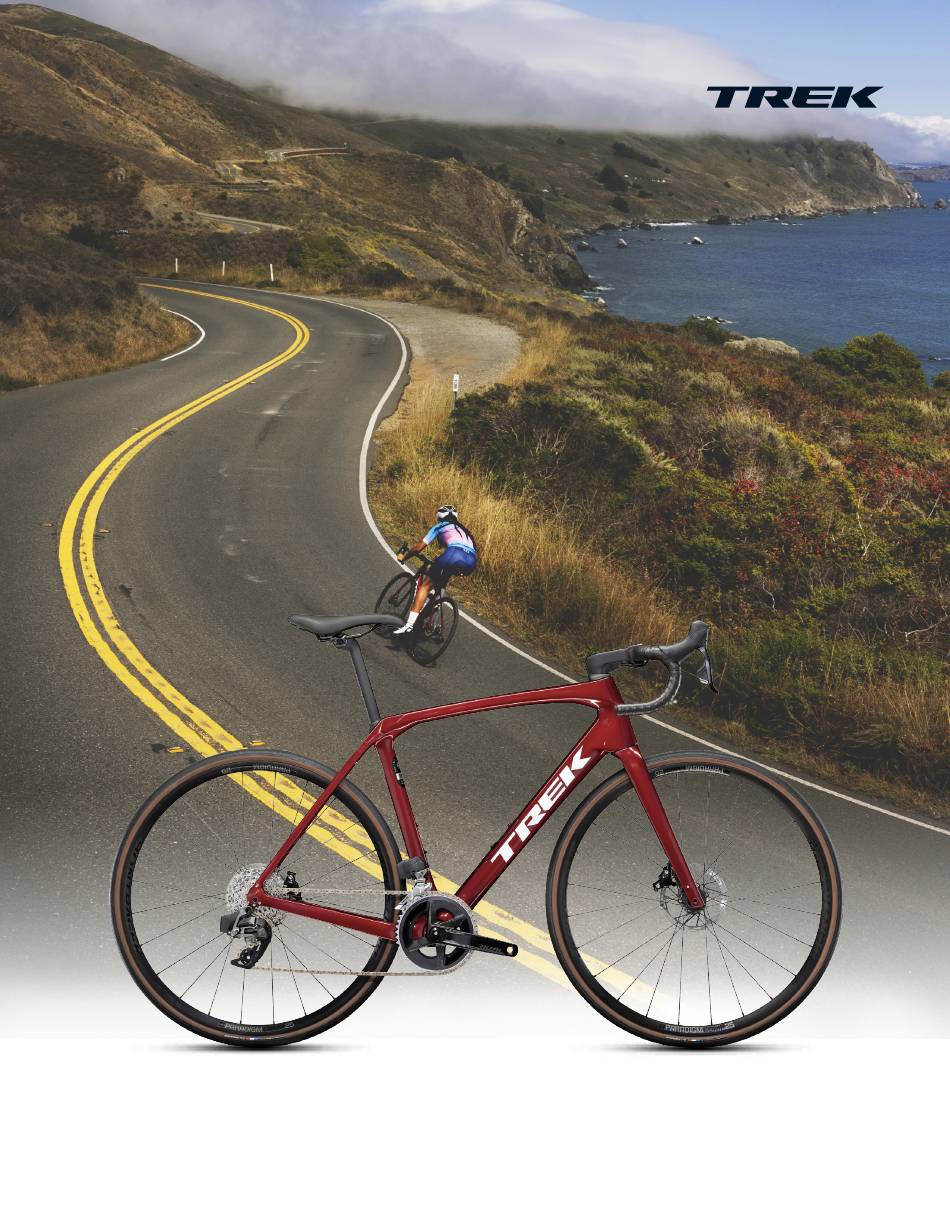

- Page 1 2023 DOMANE SL/SLR SERVICE MANUAL Rev 1 December 2022...
- Page 2 If threadlocker is not applied, the fasteners may loosen which could damage the bicycle and result in injury to the rider. Copyright 2022 Trek Bicycle Corporation All Rights Reserved...
- Page 3 2023 Domane SL/SLR Routing — mechanical 6.5Nm 0.7Nm Cable housing grommet — W329119 Front derailleur cable Housing grommets — W330578 Rear derailleur cable W531901 Front derailleur hanger — Rear brake hose Front derailleur hanger bolt (M5x16mm) — W543903 Front brake hose Cable guide bolts (M4x9mm) —...
- Page 4 2023 Domane SL/SLR Routing — mechanical: instructions Route the brake hoses. Insert the shift housings and rear brake hose into the cable guide. Route the shift housings.
- Page 5 2023 Domane SL/SLR Routing — Di2 6.5Nm 0.7Nm W330578 Housing grommets — Rear Di2 wire EW-SD300-I Front derailleur hanger — W531901 Front Di2 wire Front derailleur hanger bolt (M5x16mm) — W543903 Rear brake hose Cable guide bolts (M4x9mm) — W546731 Front brake hose Cable guide —...
- Page 6 2023 Domane SL/SLR Routing — Di2: instructions Route the brake hoses. Insert the rear brake hose into the cable guide Route the Di2 wires through the frame and connect them to the battery. Install the battery assembly.
- Page 7 2023 Domane SL/SLR Routing — eTap 6.5Nm 0.7Nm Front derailleur hanger — W531901 Rear brake hose W543903 Front derailleur hanger bolt (M5x16mm) — Front brake hose Cable guide bolts (M4x9mm) — W546731 Rear derailleur hanger — W524188 Cable guide — W588188 Rear derailleur hanger bolts (M3x12mm) —...
- Page 8 2023 Domane SL/SLR Routing — eTap: instructions Route the brake hoses. Insert the rear brake hose into the cable guide.
-
Page 9: Fork And Headset
2023 Domane SL/SLR Fork and headset Top cap bolt (M6x35mm) W547432 Compression plug W5274966 Top cap — 5.2Nm Stem bolts (M5x15mm) 5305331 Washers (M5) 1.5Nm Stem — 5274584 Routing cover — W5274600 Bolt (M4x25mm) — W5274963 Spacers (5mm) — 5296906 Spacers (15mm) —... - Page 10 2023 Domane SL/SLR Fork and headset: max spacers WARNING WARNING Below the stem Above the stem Do not exceed 40mm of headset spacers below the Do not exceed 40mm of headset spacers above the stem. If there are more than 40mm of spacers, the stem.
- Page 11 2023 Domane SL/SLR Install the fork Install the compression plug in the fork. Grease the fork crown race, both headset bearing bores, and both bearings (13). 9-10Nm Insert the fork into the head tube. TIP: Use a sprint stand to hold the fork in place.
- Page 12 2023 Domane SL/SLR Install the headset Route the headset parts down the housings. Loosely attach the stem (6). Install the top cap (3) and tighten the top cap bolt (1). eTap/Di2 Mechanical Tighten the stem bolts (4) — alternating between them —...
- Page 13 2023 Domane SL/SLR Fork and headset — standard stem Top cap bolt Top cap W547432 Compression plug 5.2Nm Spacers (5mm) — 5253930 Spacers (10mm) — 5253931 5.2Nm Stem bolts (M5x18.5mm) 5276082 D-nuts (M5) Bearing cover (standard stem) — W5274615 Split ring — W5274269 Headset bearings —...
- Page 14 2023 Domane SL/SLR Seatpost MINIMUM INSER T 8-10Nm If the seatpost is continually slipping, add carbon friction paste at the location shown above. Seatpost (280mmx5mm) — W5285077 Bolt insert Barrels 272628 Saddle clamp ears (7mmx7mm) — 421564 Bolt (M6x16mm)
-
Page 15: Iso Speed
2023 Domane SL/SLR IsoSpeed NOTICE: Do not perform routine maintenance on the IsoSpeed. Only service IsoSpeed hardware if you are replacing parts or torquing the pivot bolt (5). 10.5Nm 6.8Nm 5.2Nm DO NOT REMOVE: Do not remove this bolt (11) unless you are servicing the IsoSpeed or replacing parts. - Page 16 2023 Domane SL/SLR IsoSpeed: remove parts NOTICE: Do not perform routine maintenance on the IsoSpeed. Only service IsoSpeed hardware if you are replacing parts. Remove the assembly cover (9). Remove the pivot bolt (5), washers (2, 3), and the nut (6).
- Page 17 2023 Domane SL/SLR IsoSpeed: install parts NOTICE: Do not perform routine maintenance on the IsoSpeed. Only service IsoSpeed hardware if you are replacing parts. IMPORTANT: Clean all parts before reinstalling them using 50/50 isopropyl/water mix. Grease the wedge assembly as shown below. Place the wave washer (2) on the pivot bolt (5) and apply grease as shown below.
- Page 18 2023 Domane SL/SLR Chainkeeper Bolt (M4x22mm) Chainkeeper 5305773 Flat washer (M5x10mm) Bolt (M5x16mm) Adjust the chainkeeper Shift to the lowest gear (largest rear cassette cog) and inner chainring. Loosen the bolt (1) on the chainkeeper. Rotate the loose piece (shown in red below) so there is 1mm of horizontal clearance to the chain. Tighten the bolt (1) to 1Nm.
- Page 19 2023 Domane SL/SLR Storage door 1.2Nm 1.2Nm Mount screws — W547053 Storage door kit* W596821 Bolts (M5x16mm) — Door frame — W580769 *This is a color-matched part — search trekbikes.com find the right color for your bike.
-
Page 20: Specifications
2023 Domane SL/SLR Specifications Frame Brake hose lengths (caliper to lever) SL/SLR NOTE: The lengths below are based on a 100mm stem with 40mm of headset spacers below the stem. Rear hub OLD 142mm Front hub OLD 100mm Frame size Rear brake Front brake Upper fork steerer tube OD...
Need help?
Do you have a question about the DOMANE SL 2023 and is the answer not in the manual?
Questions and answers
Hello - how do you adjust the saddle tilt of the 2023 Domane SL6 Gen 4?
To adjust the saddle tilt on the Trek 2023 Domane SL6 Gen 4:
1. Loosen the saddle clamp bolts.
2. Tilt the saddle to the desired angle.
3. Re-tighten the saddle clamp bolts to the specified torque.
Exact bolt locations and torque specifications are not provided in the context.
This answer is automatically generated
I have a pro caliber and want to replace the isospeed bearings. I have the entire kit. One of the two bearings seems glued to the frame and I can remove it. Please advise
