Summary of Contents for Clarke CMFT220

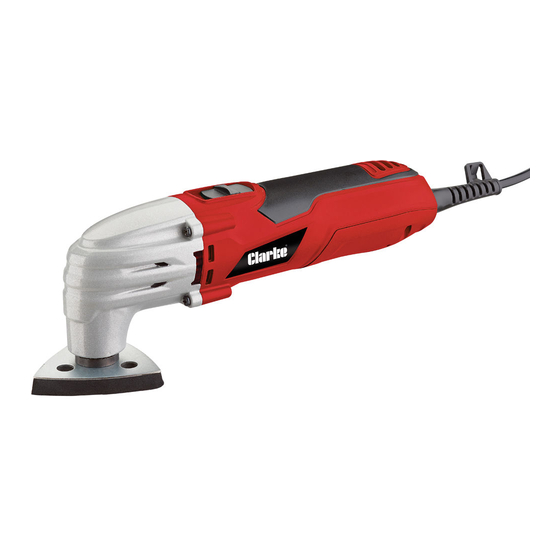

- Page 1 MULTI FUNCTION TOOL MODEL NO: CMFT220 PART NO: 6462199 OPERATION & MAINTENANCE INSTRUCTIONS LS0719 - ISS 3 ORIGINAL INSTRUCTIONS...
-
Page 2: Environmental Protection
Defective goods must be returned to their place of purchase. The Multi Function Tool must not be returned to Clarke international without prior permission. This guarantee does not effect your statutory rights. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/ OR SERIOUS INJURY. THE TERM “POWER TOOL” IN ALL WARNINGS LISTED BELOW REFERS TO YOUR MULTI FUNCTION TOOL AND CHARGER. 1) WORK AREA SAFETY a. - Page 4 c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d.
- Page 5 SAFETY RULES FOR OSCILLATING SAWS & SANDERS 1. Hold power tools by insulated gripping surfaces when performing an operation where the cutting tools may contact hidden wiring. Contact with a “live” wire will make exposed metal parts of the tool “live” and shock the operator. Do not cut or break into existing walls or other blind areas where electrical wiring may exist.
-
Page 6: Safety Symbols
ENVIRONMENTAL PROTECTION Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. SAFETY SYMBOLS Read instruction CE Mark manual before use Class II Double... -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS FULLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. This product is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug, for connection to a standard, domestic electrical supply. Should the plug need changing, make sure that a plug of identical specification is used. -
Page 8: Before Use
BEFORE USE FITTING THE ACCESSORIES WARNING: REMOVE THE PLUG FROM THE POWER SUPPLY BEFORE FITTING OR REMOVING THE ACCESSORIES. 1. If attached, use the hex key supplied to remove the retaining screw and retaining disc. 2. Fit your chosen accessory onto the drive spindle. - Page 9 HOW TO ATTACH A SANDING SHEET The sanding pad has a hook and loop material to which the sanding sheets are attached. 1. Attach the sanding pad to the tool. • Use the screw and washer supplied and tighten with a hexagonal key.
-
Page 10: Operation
OPERATION 1. Hold the tool tightly and move the On/Off switch forward. • The multi tool will operate continuously. 2. Slowly apply the tool to the work piece. • Apply light pressure as you move it across the work. WARNING: MAKE SURE THAT THE POSITION USED DOES NOT CAUSE FATIGUE WHICH CAN CAUSE LOSS OF CONTROL. - Page 11 USING THE SANDING ATTACHMENT WARNING: ALWAYS WEAR EYE PROTECTION AND A DUST MASK. SELECT THE CORRECT SANDING SHEET The ‘grit’ of the sanding sheet is identified by a number on the back of the sheet. The lower numbers are more abrasive. (use lower grit for rough wood and higher grit for finishing) SANDING 1.
-
Page 12: Using The Scraper
USING THE SCRAPER The scraper is used to remove paint, sealant, adhesives and vinyl/fabrics from a workpiece. 1. Hold the tool tightly and move the On/Off switch forward. 2. Put the tool against the workpiece at a low angle and apply light pressure to the scraper blade. -
Page 13: Optional Accessories
3. Do not use any chemicals, harsh abrasives, or solvents when cleaning plastic parts. GENERAL MAINTENANCE • All bearings are sufficiently lubricated for the life of the tool. • Speak to your Clarke Supplier if internal maintenance is necessory. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Specifications
SPECIFICATIONS Voltage 230V AC, 50 Hz No-load speed 20000 Oscillations /Minute Weight 1.3 kg Dimensions (L x W x H) 255 x 57 x 93 mm Sound Power Level (LWA) 92.8 dB(A) Sound pressure Level (LPA) 81.7 dB(A) Sound Uncertainty Value (K) 3 dB(A) Vibration 3.332 m/s²... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
