Summary of Contents for Vista VVRD28V12MHDAIRSW

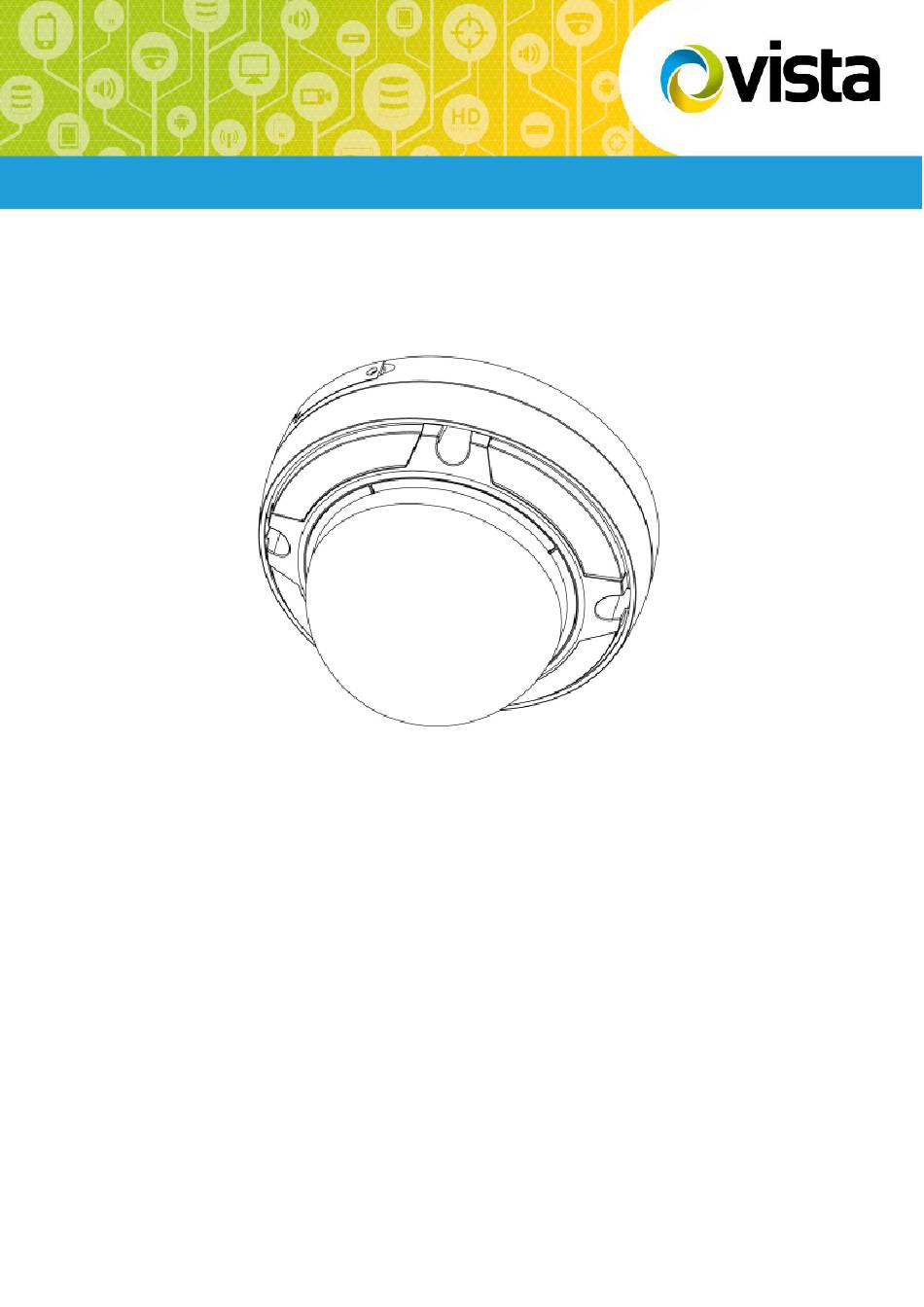

- Page 1 Installation Manual VVRD28V12MHDAIRSW Please read this manual thoroughly before use and keep it handy for future reference.
- Page 3 Norbain SD, 210 Wharfedale Road, Winnersh Triangle, Wokingham, Berkshire RG41 5TP, England. UK +44 (0) 118 912 5000 / Vista Technical Support +44 (0) 118 912 5125 Note: You should be at the equipment and ready with details before calling Technical Support.
- Page 4 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings.
-
Page 6: Table Of Contents
Table of Contents 1 — Introduction ........................ 7 1.1 Features ..........................7 2 — Installation and Configuration ................... 8 2.1 Package Content ......................... 8 2.2 Camera Overview ........................ 8 2.3 Connections / Tact Switch Operation & Lens Control ............9 2.4 OSD Menu Structure ...................... -
Page 7: Introduction
1 — Introduction 1.1 Features 1/2.8” Sony 2.1MP STARVIS CMOS 1080p in TVI and AHD, 700TVL in CVBS 2.8-12mm F1.4 3MP motorized lens (controlled via tact switch or coax telemetry) 0.03Lux (colour), 0Lux (mono – IR On) ● True Day/Night operation ●... -
Page 8: Installation And Configuration
2 — Installation and Configuration 2.1 Package Contents Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. Carefully remove the camera and its accessories from the carton and verify that they were not damaged in shipment. -
Page 9: Connections / Tact Switch Operation & Lens Control
2. Black BNC: TVI & AHD (1080p) 3. Yellow BNC: CVBS (700TVL) On the inside of the VVRD28V12MHDAIRSW, there is a PCB which provides access to the tact switch for the OSD For switching the HD output from TVI to AHD, please see OSD / SYSTEM / OUTPUT / ANALOG OUT0. -
Page 10: Osd Menu Structure
2.4 OSD Menu Structure MENU FOCUS SET UP FOCUS SET UP EXPOSURE EXPOSURE AF MODE IRIS BACKLIGHT SCANNING BRIGHTNESS DAY&NIGHT ONEPUSHAF SHUTTER SYNC TDN SENS-UP INITIAL IMAGE SYSTEM RETURN RETURN EXIT BACKLIGHT DAY&NIGHT EXTERN AUTO AUTO AUTOext COLOUR PRESET B&W MANUAL IMAGE SYSTEM... -
Page 11: Focus Set Up
3 — OSD Menu 3.1 Focus Set up AF MODE: Auto, Manual. AUTO: Tracks closely with the zoom MANUAL: Once the camera is zoomed in using Semi or Auto, the Up / Down buttons allow manual focusing SCANNING: Half, Full HALF: Goes through half lens focal range FULL: Goes Once the camera is zoomed in using Semi or Auto, the Up / Down buttons allow... -
Page 12: Day&Night
Mode: Normal, ROI ROI (Region of Interest) Window Zone: 0, 1, 2, 3 Window Use: On, Off H-Pos: 0 to 1920 V-Pos: 0 to 1080 H-Size: 0 to 1920 V-Size: 0 to 1080 3.4 Day& Night EXTERN (switches via photocell and IR come on): Anti-Sat: 0 to 20 Extern SW: Low, High D>N Thres: 0 to 20... -
Page 13: System
DEFOG: Off, On Mode: Auto, Manual Level: Low, Middle, High PRIVACY: Off, On Zone Num: 0 to 15 Zone Disp: On, Off H-Pos: 0 to 60 V-Pos: 0 to 34 H-Size: 0 to 60 V-Size: 0 to 34 Y Level: 0 to 20 CB Level: 0 to 20 CR Level: 0 to 20 Trans: 0 to 3... -
Page 14: Specifications
Chapter 4 — Specifications 4.1 Technical Specification Model VVRD28V12MHDAIRSW Resolution 1080p (TVI/AHD) / 700TVL (CVBS) 1/2.8″ Sony STARVIS CMOS Image sensor Operation True Day Night Effective pixels 1920 (H) x 1080 (V) Scanning Freq. PAL: 15.625KHz(H) x 50Hz(V) Sync. system Internal 1.0Vp-p (75Ω, composite) -
Page 15: Line Drawing / Dimensions
4.2 Line Drawing / Dimensions All dimensions are in mm 5 — Warranty This camera is subject to the warranty conditions valid at the time of purchase. The exception to this and not by warranty is: The lens must only be moved via coax telemetry or tact switch only, any attempt to move the lens manually or by force will damage the motors. - Page 16 Vista 210 Wharfedale Road Winnersh Triangle Wokingham Berkshire. RG41 5TP (Subject to change without notice) Version 1.0...
