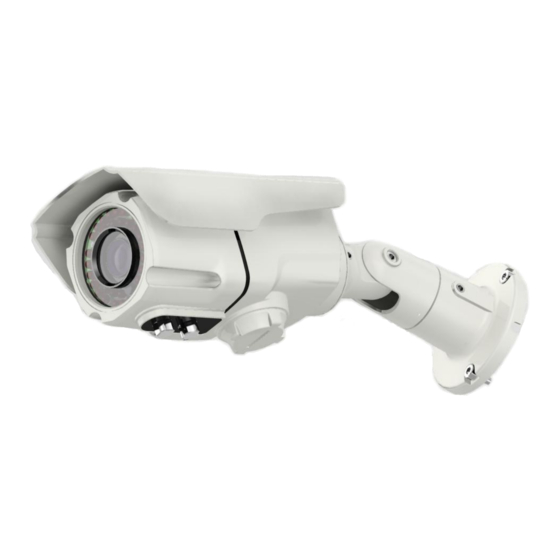

VK2-3MPBIR28V12re
INSTALLATION MANUAL
Please read this manual thoroughly before use and keep it handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VK2-3MPBIR28V12re and is the answer not in the manual?

Questions and answers

Summary of Contents for Vista VK2-3MPBIR28V12re

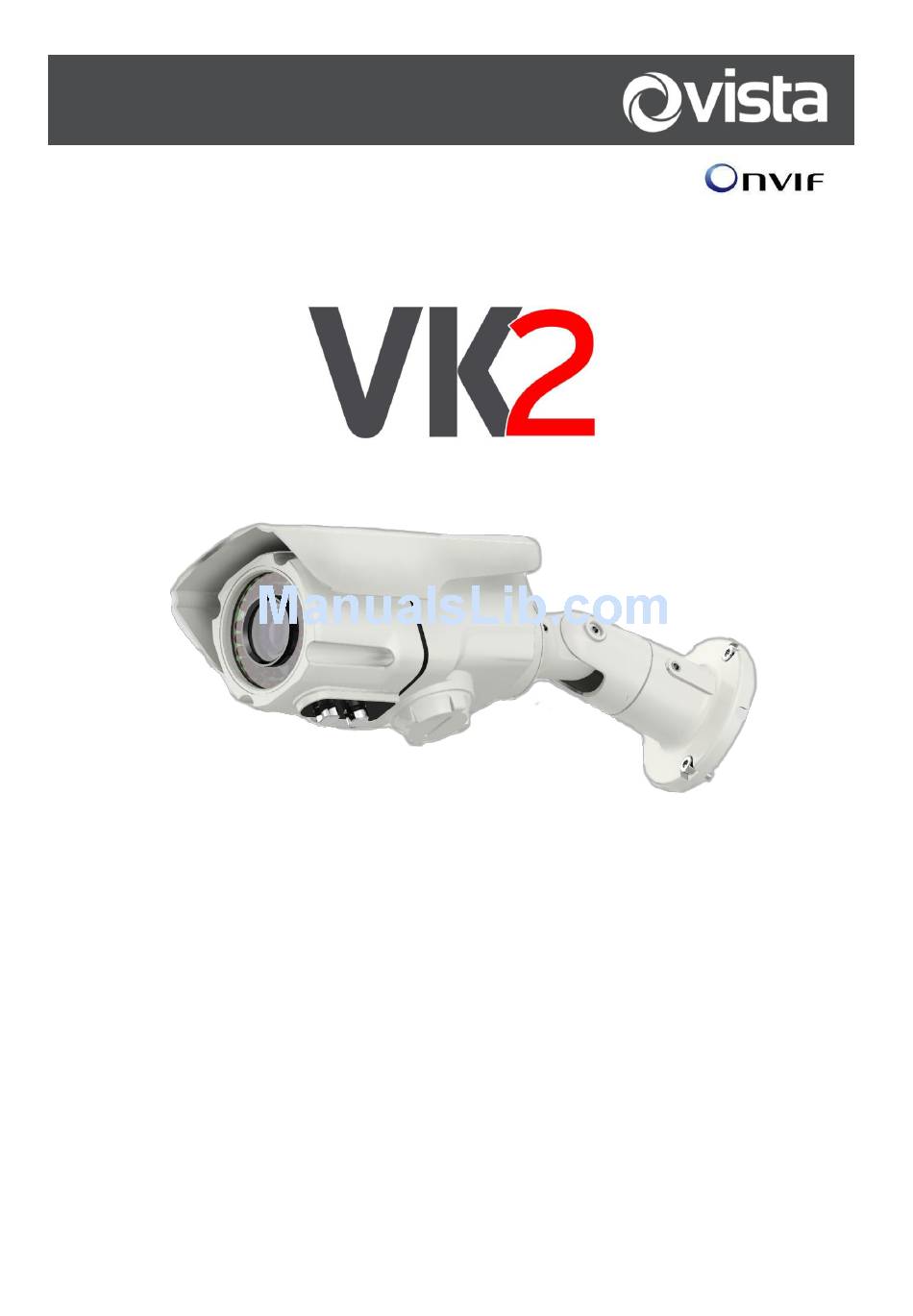

  • Page 1 VK2-3MPBIR28V12re INSTALLATION MANUAL Please read this manual thoroughly before use and keep it handy for future reference.
  • Page 2 Before You Begin Read these instructions before installing or operating this product. Note: This installation should be made by a qualified service person and should conform to local codes. This manual provides installation and operation information. To use this document, you must have the following minimum qualifications: ...
  • Page 3: Important Safeguards

    IMPORTANT SAFEGUARDS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
  • Page 4: Ce Compliance Statement

    CE COMPLIANCE STATEMENT WARNING Contents This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
  • Page 5: Table Of Contents

    Contents 1 Introduction 1.1 Components ........1.2 Key Features .
  • Page 6: Introduction

    1 Introduction The network camera supports the network service for a sensor image with progressive scan, which can be monitored on a real-time screen regardless of distances and locations. By us- ing its dedicated program, many users are able to have an access to the network camera at once or a single user can monitor various network cameras at the same time.
  • Page 7: Key Features

    1.2 Key Features Brilliant video quality The network camera offers the highly efficient H.264 video compression, which drasti- cally reduces bandwidth and storage requirements without compromising image qual- ity. Motion JPEG is also supported for increased flexibility. Wide Dynamic Range The network camera provides digital WDR (Wide Dynamic Range) that improves video exposure quality in scenes with high contrast between bright and dark areas in the video, for example a shady area and a sunny area in the same scene.
  • Page 8: Installation

    2 Installation For the operation of the Network Camera, it is necessary to connect a network cable for data transmission, power connection from supplied power adapter. Depending on operation methods, it is possible to connect an alarm cable additionally. For its fixation on different locations, please consult with an installer.
  • Page 9 Installing Camera To mount the bullet camera, fix the bace of the camera with the three screws provided in the accessory kit.
  • Page 10: Connection

    2.2 Connection Micro SD memory slot on the Bottom Board Remove the cap at buttom of the camera to insert the SD memory card. Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the network camera. Generally a cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a hub.
  • Page 11: Resetting To The Factory Default Settings

    2.3 Resetting to the factory default settings To reset the network camera to the original factory settings, go to the Setup > System > Maintenance web page (described in “System > Maintenance” of Users Manual) or use the Reset button on the network camera inside the bottom cap. Using the Reset button: Follow the instructions below to reset the network camera to the factory default settings us- ing the Reset button.
  • Page 12: A Appendix

    A Appendix Product Specification 3MP VCA BULLET NETWORK CAMERA Model Network Camera Lens Motorized Varifocal 2.8mm 12.0mm, F1.4, DC IRIS Angle of View 1/2.8” Sony Exmor CMOS Type Image Sensor Pixels 2048(H) x 1536(V) Color: 0.1 Lux @ F1.4, 50 IRE Min.
  • Page 13 TCP/IP, UDP, IPv4/IPv6, HTTP, HTTPS, QoS, FTP, Protocols UPnP, RTP, RTSP,RTCP, DHCP, ARP, Zeroconf, Bonjour Client Software Web, SmartManager, Client S/W, Mobile S/W Network Max. User Connection Live : 10 Users, Playback : 3 Users API Support Open API, ONVIF Compliance Mobile Support Android, i-OS Video Composite Out...
  • Page 14 Norbain SD 210 Wharfedale Road Winnersh Triangle Wokingham England RG41 5TP 01189 125 000 Version 1.0...
