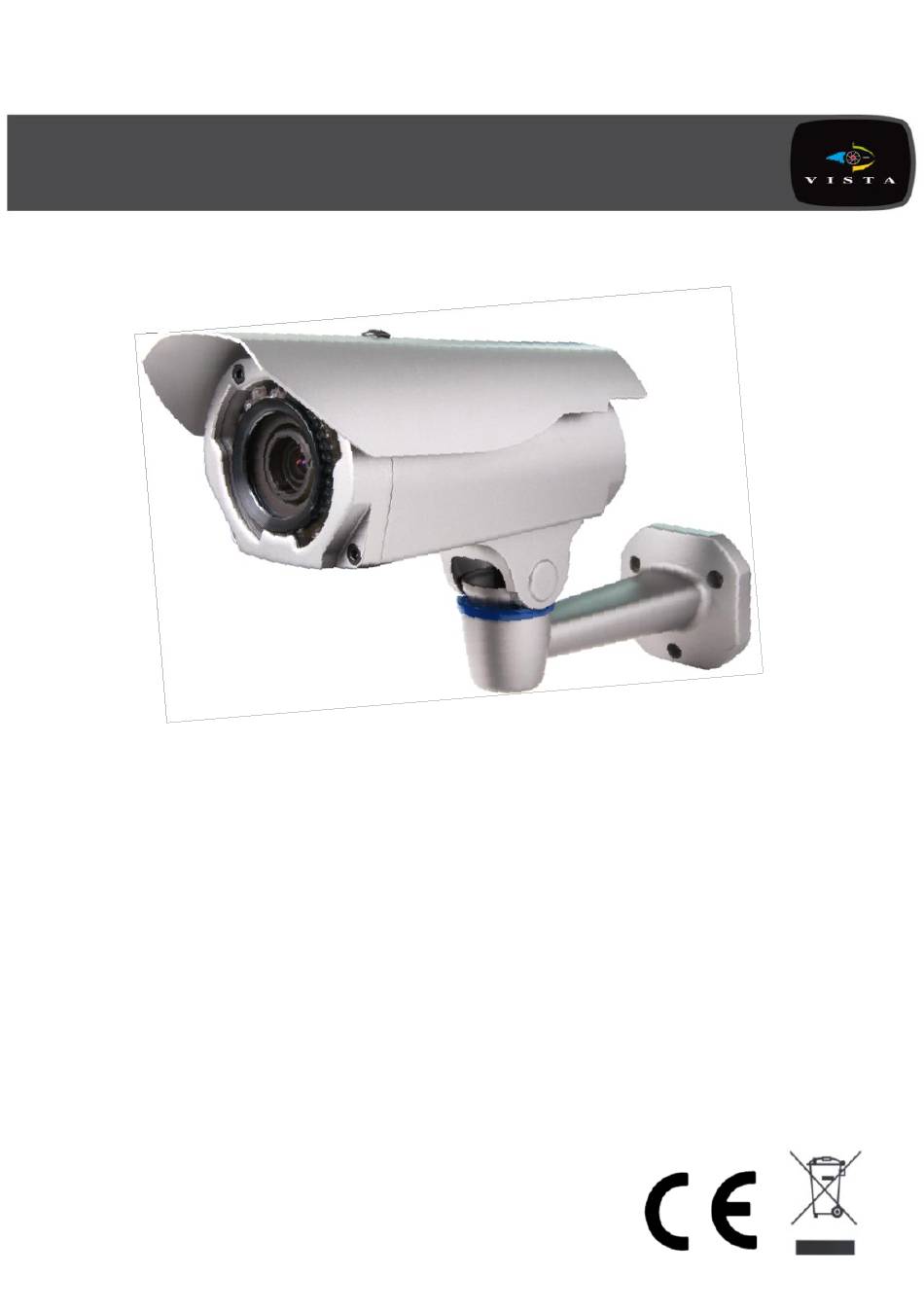

Installation Manual MManualManual Set up and user manual for the VBC28V12DN960H VBC5V50DN960H cameras...
Page 3
Before You Begin Read these instructions before installing or operating this product. Note: This installation should be made by a qualified service person and should conform to local codes. This manual provides installation and operation information. To use this document, you must have the following minimum qualifications: ...
Page 4
This apparatus is manufactured to comply with the radio interference. A Declaration of Conformity in accordance with the following EU standards has been made. The manufacturer declares that the product supplied with this document is compliant the provisions of the EMC Directive 2004/108/EC, the CE Marking Directive 93/68 EEC and all associated amendments.
Page 5
IMPORTANT SAFEGUARDS 1. READ AND RETAIN INSTRUCTIONS Read the instruction manual before operating the equipment. Retain the manual for future reference. 2. CLEANING Turn the unit off and unplug from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use harsh cleansers or aerosol cleaners. 3.
Page 6
12. SERVICING Do not attempt to service the video monitor or equipment yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 13. DAMAGE REQUIRING SERVICE Unplug the equipment from the wall outlet and refer servicing to qualified service personnel under the Following conditions: A.
CONTENTS OF PACKAGE Installation of the camera must be performed by competent personnel in accordance with any site specific electrical and mechanical guidelines. Carefully remove the colour camera and its accessories from the carton and verify that they were not damaged in shipment. The content of the package includes: 1.
CONNECTIONS 1. Camera 2. Power connection – 12VDC or 24VAC (for DC this is polarity conscious) 3. Video connection – BNC BASIC INSTALLATION 1. Drill the mounting location, using the supplied template sheet 2. Fit the camera to the pre-drilled location using the fixings provided (you will need to provide your own fixings if these are not suitable for the fixing location).
3. Using the allen key, adjust the camera tilt / pan to suit, then tighten to lock in place. TACT SWITCH OPERATION / SERVICE JACK The tact switch allows both navigation and changes to the OSD Menu. Remove the rear cap on the camera.
OSD MENU STRUCTURE SETUP MENU (page 1) LENS SHUTTER/AGC LENS SHUTTER/AGC AUTO AUTO WHITE BAL MANUAL MANUAL BACKLIGHT PICT ADJUST MOTION DETECTION RETURN RETURN NEXT (page2) EXIT SAVE ALL WHITE BALANCE BACKLIGHT PUSH USER 1 USER 2 ANTI CR MANUAL PUSH LOCK RETURN RETURN...
Page 13
SETUP MENU (page 2) PRIVACY PRIVACY DAY/NIGHT DAY/NIGHT AREA SEL COLOUR CAMERA ID COLOUR LANGUAGE TRANSP CAMERA RESET MOSAIC BACK (page 1) EXIT SAVE ALL RETURN RETURN CAMERA ID LANGUAGE CAMERA RESET NR MODE (titling) ENGLISH RETURN Y LEVEL GERMAN (return the C LEVEL FRENCH...
Page 14
CAMERA SET-UP LENS Auto Type: DC, Video (Sets the type of lens and whilst Video is selectable, it is not supported on this model) Mode: Auto, Open, Close (Sets the type of control applied over the mechanical iris) Speed: 0 - 255 (increments of 1) Sets the convergence speed of the mechanical iris.
ATW (Auto Trace White balance) Speed: 0 to 255 (increments of 1) (Adjusts the pull in speed of ATW) Delay Cnt: 0 to 255 (increments of 1) (Sets the time-based hysteresis of ATW) ATW Frame: x0.5, x1, x1.5, x2 (Sets the pull in frame magnification) Environment: Indoor, Outdoor (Preset for either indoor or outdoor applications of the ATW) Push: Sets the mean of the Auto White Balance (AWB) of the area viewed...
Page 16
(in all of the above, the smaller the number, the darker or lower the setting that is applied) ATR (Adaptive Tone Reproduction) allows adjustment of the image to assist with widely contrasting scenes of view (Wide Dynamic Range) . Luminance: Low, Mid, High (Sets the luminance applied) Contrast: Low, Midlow, Mid, Midhigh, High) (Sets the contrast enhancement)
Page 17
Top: 0 – 288 (increments of 1) 0=top, 288=bottom Bottom: 0 – 288 (increments of 1) 0=top, 288=bottom Left: 0 – 468 (increments of 1) 0=left, 468=right Right: 0 – 468 (increments of 1) 0=left, 468=right Colour: 1 – 8 (Choose from the following colours for the privacy zones - red, green, blue, lime, cyan, magenta, white, black) Transp: 0.00, 0.50, 0.75, 1.00...
Page 18
CAMERA ID Sets the camera ID to ON or OFF. A title of 26 characters per line can be applied. Use the joystick to navigate the cursor. Pushing centrally on the joystick will allow selection of that character. The arrows at the bottom allow you to move the cursor without changing the character.
DEAD PIXEL CORRECTION It is perfectly normal for a camera CCD to have what is known as ‘dead’, ‘hot’ or ‘white’ pixels, develop over time and on occasion and these can be noticeable on the viewed image. These can be masked easily without affecting the quality of the image, with the DPC function.
DIMENSIONS (mm) Mounting Type Surface Type Thick t = 1.5 mm Window Spec. Material = Polycarbonate Diameter = 38mm Case & Wall Bracket Cast aluminium...
SPECIFICATIONS Model VBC28V12DN960H VBC5V50DN960H Resolution 700TVL (colour and monochrome) 1/3″ SONY EXview HAD II CCD (960H) Image sensor Sony Effio E II Total pixels 1020(H) x 596(V) Effective pixels 976(H) x 582(V) Scanning Syst. 2:1 Interlace Scanning Freq. PAL: 15.625KHz(H) x 50Hz(V) Sync.
Page 23
VBC960H Manual / V1.0 / 2012-11-27 (subject to change without notice)
