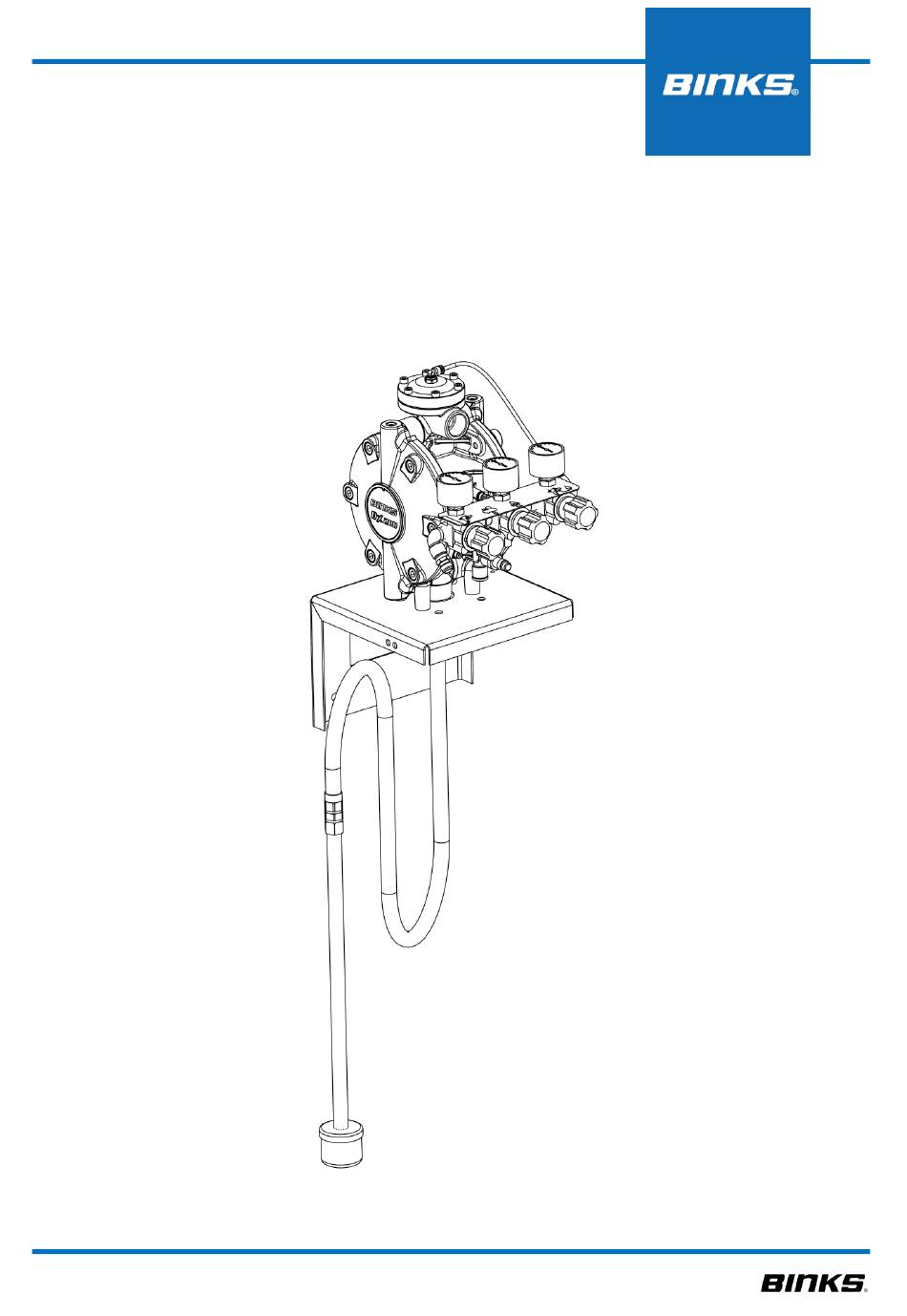

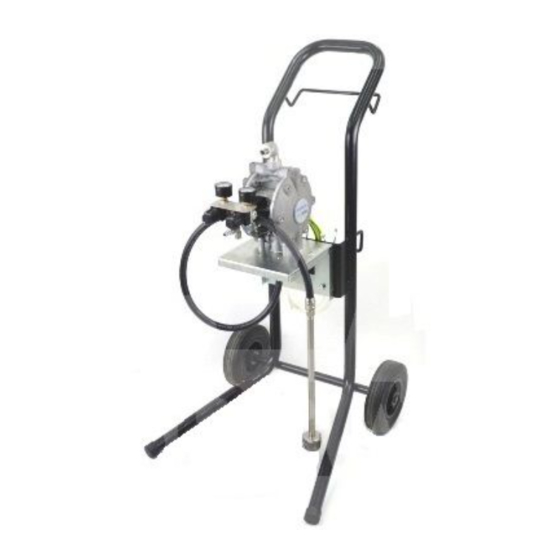

- Page 1 Service Manual DX200 Pump Packages (DX200A# & DX200S#) 77-3208-R1.6 1/16...
-
Page 2: Eu Declaration Of Conformity
Product Description / Object of Declaration: Diaphragm Pumps - DX70, DX200, DX200-3 Bare pump and packages This Product is designed for use with: Solvent and Water based Materials Suitable for use in hazardous area: Zone 1 Protection Level: II 2 G c X IIB T4... - Page 3 In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasize important safety information as follows: WARNING CAUTION NOTE Hazards or unsafe practices which could result in Hazards or unsafe practices which could result in Important installation, operation or maintenance severe personal injury, death or substantial minor personal injury, product or property information.
- Page 4 Description See figure Item Part number DX200A# DX200S# DXA-T DX tripod assembly Air controls DXA-AC#-200 DX200## Bare pump 0114-011798 Grounding cable 4m DXK-220 Seal - pack of 4 DXK-230 DVX-244 ...
- Page 5 Used On Description See figure Item Part number DX200A# DX200S# DVX-101 Wall bracket Air controls DXA-AC#-200 DX200## Bare pump 0115-010186 Cart DXK-101 Screw kit DXA-S25-13S- Suction hose ME15 DXA-S25ME15 ...
- Page 6 Item Part number DX200A# DX200S# DVX-116 Pail Lid DXA-AF Agitator air supply DXA-AC# Air controls DX200## Bare pump 0114-011798 Grounding cable 4m 41-3312-S Agitator 0115-010337 Blanking Plug DXK-220 Seal - pack of 4 ...
-
Page 7: Reference Figures
Reference figures DXA-T Description Item Part number 0115-010210 Tripod leg DXK-102 Fixing kit 77-3208-R1.6 7/16... - Page 8 DXA-AC3-200 DXA-AC2-200 DXA-AC22-200 DXA-AC1-200 Description Item Part number GA-382-P Pressure gauge S-1817 Ø4 (5/32") air tube MPV-10 QD stem 1/4" female 77-3208-R1.6 8/16...
- Page 9 DXA-S25ME15 Description Item Part number DVX-86 Suction hose DXK-104 Seal - pack of 4 DVX-89 Strainer 1300µm/15 mesh DXA-S25-S13-ME15 Description Item Part number DVX-246 Suction hose 0115-010697 TUBE 0115-010704 Strainer 1300µm/15 mesh 77-3208-R1.6 9/16...
- Page 10 DXA-P25ME15 Description Item Part number DVX-89 Strainer 1300µm/15 mesh DXA-F6ME100-200 DXA-F6ME100-200N 77-3208-R1.6 10/16...
- Page 11 Description Item Part number 0114-019985 HOSE NIPPLE 0114-016021 3/8" x 1/4" universal (BSPP/NPSM) nipple DVX-252 Filter feed hose - Regulated pump DVX-271 Filter feed hose - Non-regulated pump 0114-013855 NIPPLE DVX-251 ELBOW DXK-218 3/4" BSP(M) - 3/8" BSP(F) Connector with seals DVP-156-200 Filter 75 µm/200 mesh DVP-156-100...
- Page 12 Accessories INLET/OUTLET CONNECTORS - DX200A# Description Item Part number DXK-220 Seal x4 DXK-219 3/4" BSP(M) - 3/8" BSP(M) Connector with seals DXK-218 3/4" BSP(M) - 3/8" BSP(F) Connector with seals DXK-19 Seal x4 INLET CONNECTORS - DX200S# 1/2" BSPP Female 1/2"...
- Page 13 OUTLET CONNECTORS - DX200S# 3/8" BSPP Male Pump Outlet Description Item Part number DXK-235 1/2" - 3/8" BSPP Male outlet connector kit, with seals DXK-229 Seal x4 77-3208-R1.6 13/16...
-
Page 14: Mounting Type
Package - part numbers DX200 PUMP BODY MATERIAL ALUMINIUM STAINLESS STEEL REGULATOR TYPE FLUID REGULATOR NO FLUID REGULATOR AIR REGULATORS OPTIONS 1 REGULATOR NO OPTION 2 REGULATORS AGITATOR (PAIL WITH 3 3 REGULATORS AIR CONTROLS ONLY) MOUNTING TYPE CART FILTER. SEE NOTE... - Page 15 NOTE 77-3208-R1.6 15/16...
-
Page 16: Warranty Policy
WARRANTY POLICY Binks products are covered by Carlisle Fluid Technologies five year materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Carlisle Fluid Technologies, will void all warranties. For specific warranty information please contact the closest Carlisle Fluid Technologies location listed below.
