Service Manual
MX432 & MXL432 Pump &
Models: MX432‡‡ & MXL432‡‡, ‡‡=PL (PTFE/Leather), PP (PTFE), PU (PTFE/UHMWPE), UC (U-Cups)
Patent 7,603,855.
Air consumption @ 20 cycles/min and 8 bar [116 psi] air
Maximum recommended continuous cycle rate (cycles/min): 20
A
C
B
Packages
SPECIFICATION - Bare Pump
Maximum air inlet pressure: 8 bar [116 psi]
Maximum fluid pressure: 256 bar [3712 psi]
Displacement per cycle: 24 cc [0.8 oz]
Output @ 60 cycles/min: 1.4 l/m [0.4 US gal/m]
Air inlet connection: 3/8" BSP(f)
Fluid inlet connection: MX-3/4" NPS(m), MXL-1/2" NPS(m)
Fluid outlet connection: M14x1.5(f)
Wetted parts materials of construction:
Ratio: 32:1
147 l/m [5.2 SCFM]
inlet pressure:
Sound level: 96.2 dB
Weight: 7.5 kg [16.5 lbs]
Stainless Steel, Tunsten Carbide, Hard
Chrome, PTFE, Polyethylene, Leather,
Ceramic.
EN
Advertisement
Related Manuals for Binks MX432
Summary of Contents for Binks MX432

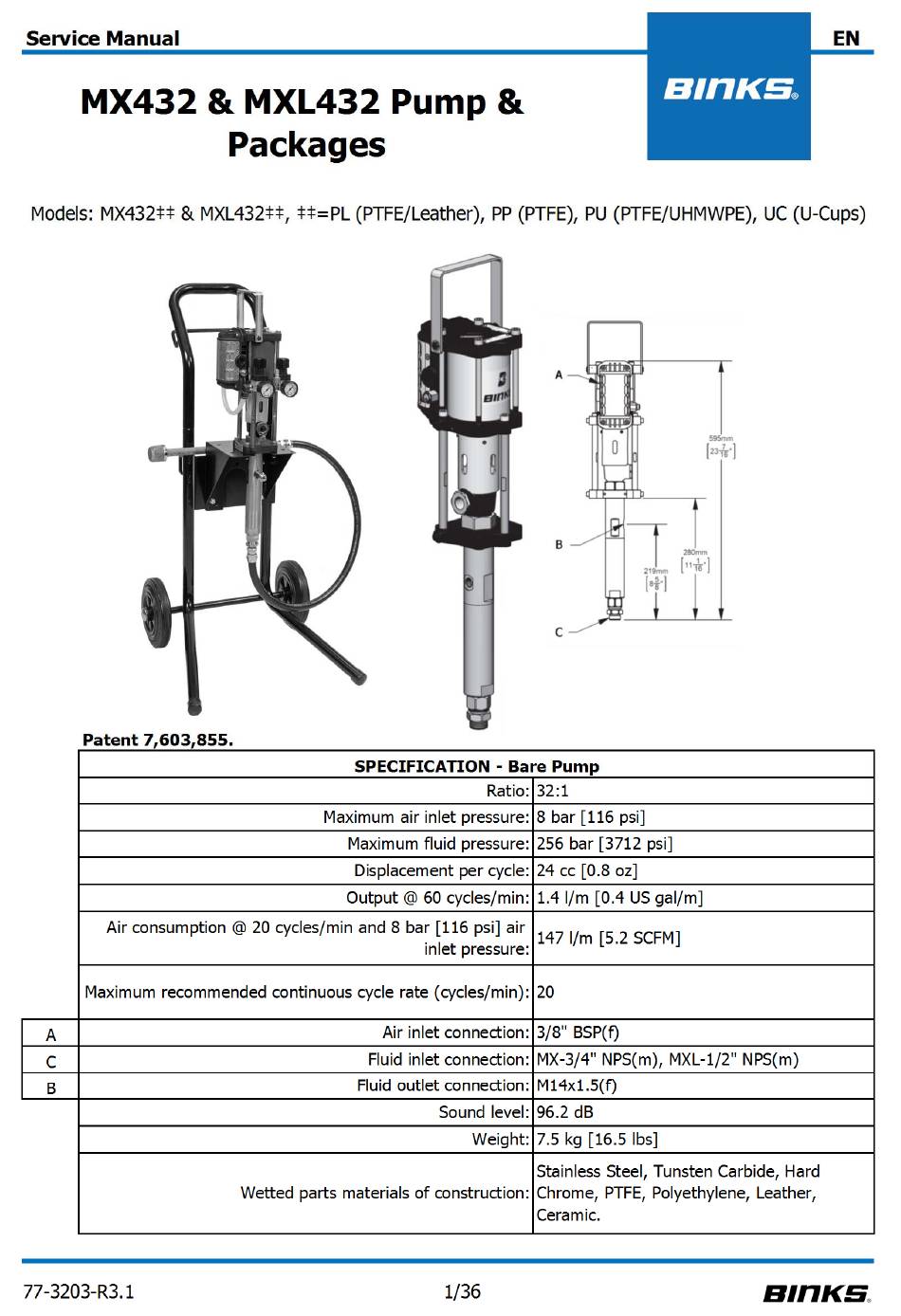

- Page 1 Service Manual MX432 & MXL432 Pump & Packages Models: MX432‡‡ & MXL432‡‡, ‡‡=PL (PTFE/Leather), PP (PTFE), PU (PTFE/UHMWPE), UC (U-Cups) Patent 7,603,855. SPECIFICATION - Bare Pump Ratio: 32:1 Maximum air inlet pressure: 8 bar [116 psi] Maximum fluid pressure: 256 bar [3712 psi] Displacement per cycle: 24 cc [0.8 oz]...
-
