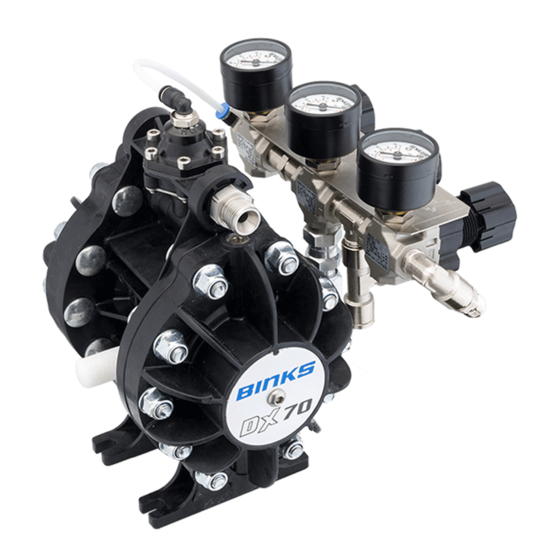

- Page 1 Service Manual DX70 Pump Packages 77-3201-R1.3 1/16...
-
Page 2: Eu Declaration Of Conformity
Product Description / Object of Declaration: Diaphragm Pumps - DX70, DX200, DX200-3 Bare pump and packages This Product is designed for use with: Solvent and Water based Materials Suitable for use in hazardous area: Zone 1 Protection Level: II 2 G c X IIB T4... - Page 3 In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasize important safety information as follows: WARNING CAUTION NOTE Hazards or unsafe practices which could result in Hazards or unsafe practices which could result in Important installation, operation or maintenance severe personal injury, death or substantial minor personal injury, product or property information.
- Page 4 Tripod Mounted Pumps Description See figure Item Part number DXA-T DX tripod assembly DXA-AC# Air controls DXA-F10ME100 Filter assembly DXA-TG Tripod gravity mount Kit DXA-S25ME15 Suction hose DX70#-## Bare pump DXK-100 Screw kit 0114-011798 Grounding cable 4m 77-3201-R1.3 4/16...
- Page 5 Part number DVX-101 Wall bracket DXA-AC# Air controls DXA-F10ME100 Filter assembly DXA-CG Cart gravity feed kit DXA-WG Wall gravity feed kit DXA-S25ME15 Suction hose DX70#-## Bare pump DXK-100 Screw kit 0114-011798 Grounding cable 4m DXK-101 Screw kit 0115-010186 Cart 77-3201-R1.3 5/16...
- Page 6 Pail Mounted Pumps Description See figure Item Part number DVX-116 Pail Lid DXA-AC# Air controls DXA-F10ME100 Filter assembly DXA-P25ME15 Pail Suction Tube DX70#-## Bare pump DXK-100 Screw kit 0114-011798 Grounding cable 4m 0115-010337 Blanking Plug DXA-AF Agitator air supply 41-3312-S Agitator DXK-107 Seal - pack of 4 77-3201-R1.3...
-
Page 7: Reference Figures
Reference figures DXA-T Description Item Part number 0115-010210 Tripod leg DXK-102 Fixing kit 77-3201-R1.3 7/16... - Page 8 DXA-AC3 DXA-AC2 DXA-AC1 Description Item Part number GA-382-P Pressure gauge S-1817 Ø4 (5/32") air tube MPV-10 QD stem 1/4" female 77-3201-R1.3 8/16...
- Page 9 DXA-F10ME100 Description Item Part number 0114-016021 3/8" x 1/4" universal (BSPP/NPSM) nipple VS-58 Filter 150 µm/100 mesh VS-58-60 Filter 250 µm/60 mesh DVX-100 Filter feed hose 77-3201-R1.3 9/16...
- Page 10 DXA-TG Description Item Part number 00-00-0002148 Tension ring 00-00-0002147 Filter ZZ-2571 6L (1.6 US Gal) hopper ZZ-2587 PTFE Seal DVX-93 Adapter DXK-103 Clamp kit DVX-125 Suction hose 77-3201-R1.3 10/16...
- Page 11 DXA-S25ME15 Description Item Part number DVX-86 Suction hose DXK-104 Seal - pack of 4 DVX-89 Strainer 1300µm/15 mesh 77-3201-R1.3 11/16...
- Page 12 DXA-CG & WG Description Item Part number 00-00-0002148 Tension ring 00-00-0002147 Strainer ZZ-2571 6L (1.6 US Gal) hopper ZZ-2587 PTFE Seal DXK-101 Fixings DVX-99 Locknut DVX-96 Adapter DVX-125 Suction hose DXA-P25ME15 Description Item Part number DVX-89 Strainer 1300µm/15 mesh 77-3201-R1.3 12/16...
- Page 13 Accessories DXA-DVG Dump valve kit for gravity feed DXA-DVT Dump valve kit for tripod & pail DXA-DVW Dump valve kit for wall/cart 77-3201-R1.3 13/16...
- Page 14 Accessories DXA-AF Agitator air supply DXA-RP Fluid regulator maximum pressure supply 77-3201-R1.3 14/16...
-
Page 15: Mounting Type
Package - part numbers DX70 R 3 REGULATOR TYPE FLUID REGULATOR NO FLUID REGULATOR OPTIONS AIR REGULATORS NO OPTION 1 REGULATOR GRAVITY FEED 2 REGULATORS 3 REGULATORS AGITATOR MOUNTING TYPE FILTER CART NO FILTER WALL FILTER TRIPOD PAIL 77-3201-R1.3 15/16... -
Page 16: Warranty Policy
WARRANTY POLICY Binks products are covered by Carlisle Fluid Technologies five year materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Carlisle Fluid Technologies, will void all warranties. For specific warranty information please contact the closest Carlisle Fluid Technologies location listed below.
