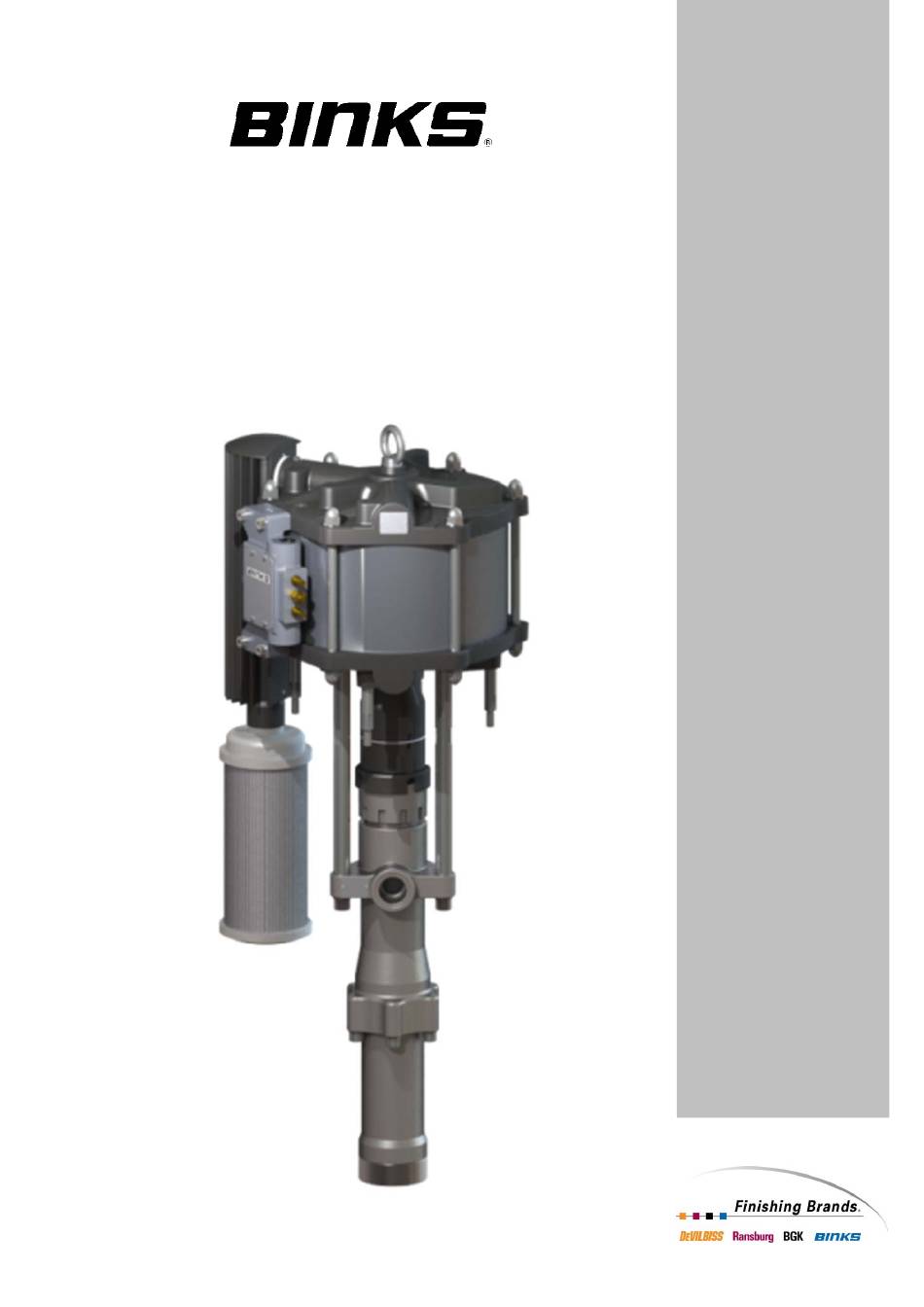

  • Page 1 Instruction Manual MX44046PU-XXX Pump...
  • Page 2 Instruction Manual Page 2 of 12 Issue: 1.1...

  • Page 3: Specification

    Instruction Manual Specification Feature Unit 7.2 US Gal. /min. Flow at 60 cycles/min 26.4 Litres/min. 0.12 US Gallons Flow per cycle 0.440 Litres Recommended intermittent cycle rate 25 cycles/min 5” Pump Stroke 127 mm Ratio 46:1 4669 PSI Maximum Fluid Pressure 322 BAR Fluid Inlet 1½”...
  • Page 4 Instruction Manual Page 4 of 12 Issue: 1.1...
  • Page 5 Instruction Manual Page 5 of 12 Issue: 1.1...
  • Page 6 Instruction Manual Page 6 of 12 Issue: 1.1...

  • Page 7: General Description

    A built in Solvent cup cleans and lubricates the pump rod and seals to prolong working life. The air motor also utilises the Binks quick exhaust technology to prevent air valve freezing conditions when high cycle speeds are employed.
  • Page 8 Instruction Manual = GREASE (AGMD-010) = LOCTITE = TORQUE Page 8 of 12 Issue: 1.1...
  • Page 9 Instruction Manual Parts List – ‘MX44046PU-CMH/SMH Pump Assembly’ ITEM PART No DESCRIPTION REMARKS 104038 A320 AIR MOTOR 164838 RIVET 165100 M16 SPRING WASHER 165594 M16 x 60 SOCKET CAPSCREW 193264 AIR MOTOR MOUNTING BAR 193540 LABEL 193543 COVER CLIP 193616 TIE ROD 193938 FX440 HAND GUARD...

  • Page 10: Pump Accessories

    Confirmation from the material supplier should be sought to ensure compatibility to prevent the risk of contamination. Check daily for excessive material leaks into the solvent cup A universal lubricant is available - Wet Sol ‘Plus’ Binks Part Number 863009 Page 10 of 12 Issue: 1.1...

  • Page 11: Fault Finding

    Instruction Manual Fault Finding Symptom Possible Cause Remedy Motor will not run a. No Air supply a. Check air and fluid supply ball valves and supply hoses. b. Air piston seal worn. b. Replace Piston seal c. Pilot valve assemblies c.
  • Page 12 195 Internationale Blvd. Glendale Height,IL 60139 630-237-5000 Toll Free Customer Service and Technical Support 800-992-4657 Toll Free Facsimile 800-246-5732 Binks registered office Finishing Brands Germany GmbH Justus-von-Liebig-Straße 31, 63128 Dietzenbach. Amtsgericht Offenbach HRB 43560 Page 12 of 12 Issue: 1.1...

This manual is also suitable for:

Mx44046pu-cmhMx44046pu-smh
