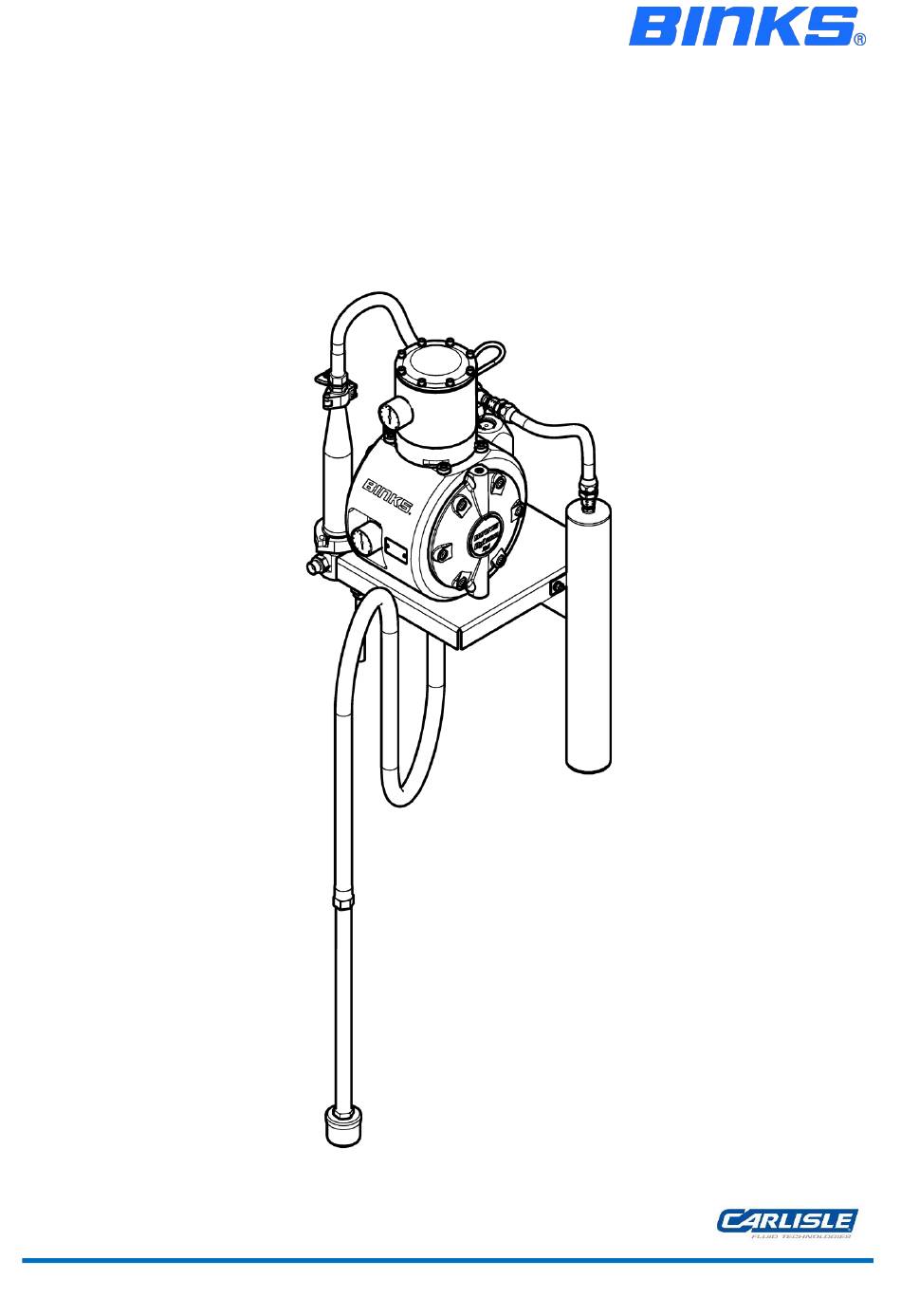

- Page 1 Service Manual DX200-3 3:1 Pump Packages DX200-3SXX-WX Wall DX200-3SXX-CX Cart 77-3220-R1.1 1/12 www.carlisleft.com...
-
Page 2: Eu Declaration Of Conformity
Product Description / Object of Declaration: Diaphragm Pumps - DX70, DX200, DX200-3 Bare pump and packages This Product is designed for use with: Solvent and water based materials Suitable for use in hazardous area: Zone 1 Protection Level: II 2 G c X IIB T4... - Page 3 In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasize important safety information as follows: WARNING CAUTION NOTE Hazards or unsafe practices which could result in Hazards or unsafe practices which could result in Important installation, operation or maintenance minor personal injury, product or property severe personal injury, death or substantial property information.
- Page 4 Cart & Wall Mounted Pumps 77-3220-R1.1 4/12 www.carlisleft.com...
- Page 5 Cart & Wall Mounted Pumps Description See figure Item Part number DVX-352 Wall bracket DXA-AC1-200-3 Air controls DX200-3SN Non-Regulated bare pump DX200-3SM Manual Regulated bare pump DX200-3SP Active Surge Chamber bare pump 0115-010186 Cart DXK-101 Screw kit DXA-S25-13S-ME15 Suction hose DXK-106 Screw kit 1/2"...
-
Page 6: Reference Figures
Reference figures DXA-AC1-200-3 DXA-S25-S13-ME15 Item Part number Description 180584 Nipple DVX-353 Regulator DVX-354 Nipple DVX-246 Suction hose 0115-010697 Suction Tube 0115-010704 Strainer 1300µm/15 mesh 77-3220-R1.1 6/12 www.carlisleft.com... - Page 7 Reference figures DXA-F6ME100-200-3 Item Part number Description DVX-358 Nipple DVX-360 Filter feed hose 107925 Filter assembly DVX-355 Nipple DVX-357 Hose Nipple 77-3220-R1.1 7/12 www.carlisleft.com...
- Page 8 Package Part numbers DX200-3 - W F Pump Body Material Stainless Steel Outlet type Manual Fluid Regulator 1/2" Female Connector Pulsation Chamber Air Regulators Options Regulator No Option Filter Mounting Type Cart Wall 77-3220-R1.1 8/12 www.carlisleft.com...
- Page 9 NOTES 77-3220-R1.1 9/12 www.carlisleft.com...
- Page 10 NOTES 77-3220-R1.1 10/12 www.carlisleft.com...
- Page 11 NOTES 77-3220-R1.1 11/12 www.carlisleft.com...
-
Page 12: Warranty Policy
© 2017 Carlisle Fluid Technologies, Inc. All rights reserved. Binks is part of Carlisle Fluid Technologies, a global leader in innovative finishing technologies. For technical assistance or to locate an authorized distributer, contact one of our international sales and customer support locations below.
