Service Manual
EN

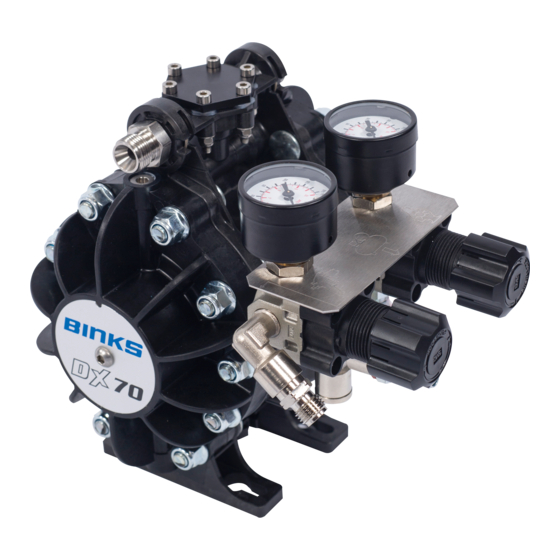

DX70 Diaphragm Pump
1/16
77-3200-R1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DX70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Binks DX70

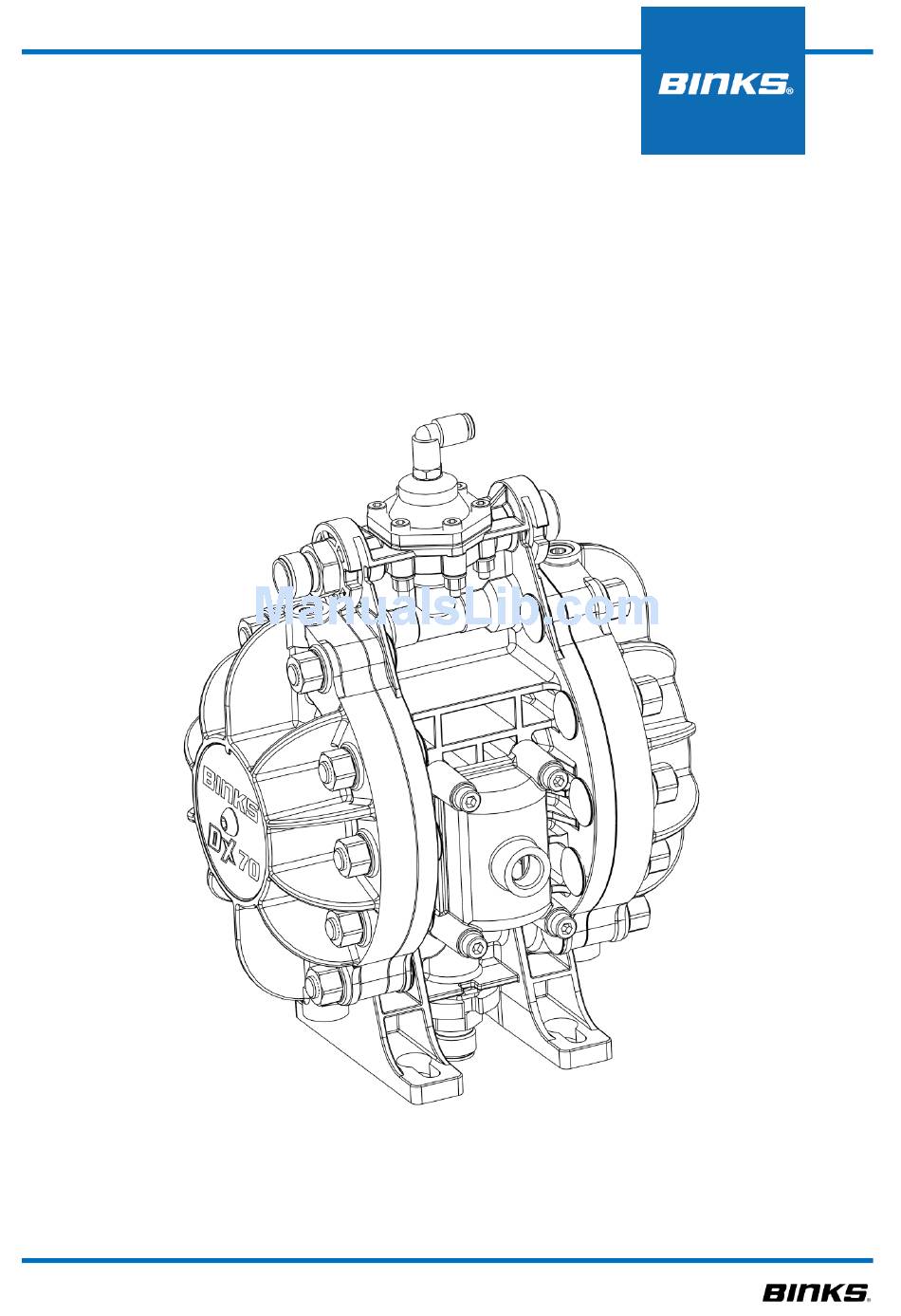

  • Page 1 Service Manual DX70 Diaphragm Pump 1/16 77-3200-R1.2...
  • Page 2: Product Description

    Binks, Ringwood Road, Bournemouth, BH11 9LH. UK EU Declaration of Conformity We: Binks declare that the above product conforms with the Provisions of: Machinery Directive 2006/42/EC ATEX Directive 94/9/EC by complying with the following statutory documents and harmonized standards: EN ISO 12100: Safety of Machinery - General Principles for Design...
  • Page 3 In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasize important safety information as follows: WARNING CAUTION NOTE Hazards or unsafe practices which could result in Hazards or unsafe practices which could result in Important installation, operation or maintenance severe personal injury, death or substantial minor personal injury, product or property information.
  • Page 4: Specification

    Specification Ratio: Maximum air inlet pressure: 7 Bar [100 PSI] Maximum fluid pressure: 7 Bar [100 PSI] Displacement per cycle: 0.07 Litres [0.018 US Gall] Output @ 60 cycles / min: 4.2 Litres/min [1.1 US Gall/min] Maximum Recommended Continuous Cycle Rate (cycles / min): Maximum Recommended Intermittent Cycle Rate (cycles / min):...
  • Page 5: Installation

    Installation 5/16 77-3200-R1.2...
  • Page 6: Prior To Use

    The pump inlet pressure should nominally be 1 bar (15 PSI) higher. Pump Earthing The pump must be earthed at all times. A resistance <1Ω when measuring with an ohm-meter at the earth point Earth connection, Binks Part No. 0114-011798 6/16 77-3200-R1.2...
  • Page 7 Paint section materials of construction Item Material Pump body Conductive acetal End cap Conductive acetal Inlet & outlet connectors Stainless steel Diaphragms PTFE Seals FKM/PE Valve ball & spring Stainless steel End cap plugs Stainless steel 7/16 77-3200-R1.2...
  • Page 8: Spare Parts

    Spare parts Item Part No. Description DXK-1 Check valve seal kit x4 DXK-2 Check valve kit x4 DXK-3 Diaphragm kit x2 DXK-4 Shaft & seal kit DXK-5 End cap seal kit x2 DXK-6 Caps & screwsx2 DXK-7 End cap nuts x10 DXK-8 End cap 8/16...
  • Page 9 Spare Parts 9/16 77-3200-R1.2...
  • Page 10 Spare Parts Item Part No. Description Inlet, outlet & plug connector seal kit DXK-9 DXK-10 Male inlet connector kit DXK-11 Female inlet connector kit DXK-12 Male outlet connector kit DXK-13 Female outlet connector kit DXK-14 Air valve kit DXK-15 Fluid regulator kit DXK-16 Regulator cap &...
  • Page 11 Spare parts 11/16 77-3200-R1.2...
  • Page 12: Maintenance

    Maintenance Key - Maintenance symbols = Order for dis-assembly (reverse for assembly) = Grease (AGMD-010) = refer to figure = Spanner or socket size = Torque required 12/16 77-3200-R1.2...
  • Page 13 Maintenance Figure 1 Figure 2 Note #1 - Shaft fitting tool included in spares kit DXK-4 This must be used when re-fitting centre shaft 13/16 77-3200-R1.2...
  • Page 14: Maintenance Schedule

    Maintenance schedule Typical period Recommended operation - Check for fluid or air leaks - Inspect Pump for Correct operation Monthly - Check for any excessive mechanical noise - Check for excessive fluid pressure pulsation - Perform a pump stop test to ensure correct operation, by ensuring pump stops when the spraygun trigger is closed and there is no fluid flow.
  • Page 15 Bare pump selection DX70 Fluid regulator For use with Air regulators Regulator No regulator DX70N No regulator 1 Regulator DX70N 2 Regulators DX70R 3 Regulators Inlet type Outlet type Male Male Female Female Air regulators DXA-AC1 1 Regulator - Pump...
  • Page 16: Warranty Policy

    WARRANTY POLICY Binks products are covered by Finishing Brands one year materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Finishing Brands, will void all warranties. For specific warranty information please contact the closest Finishing Brands location listed below.
