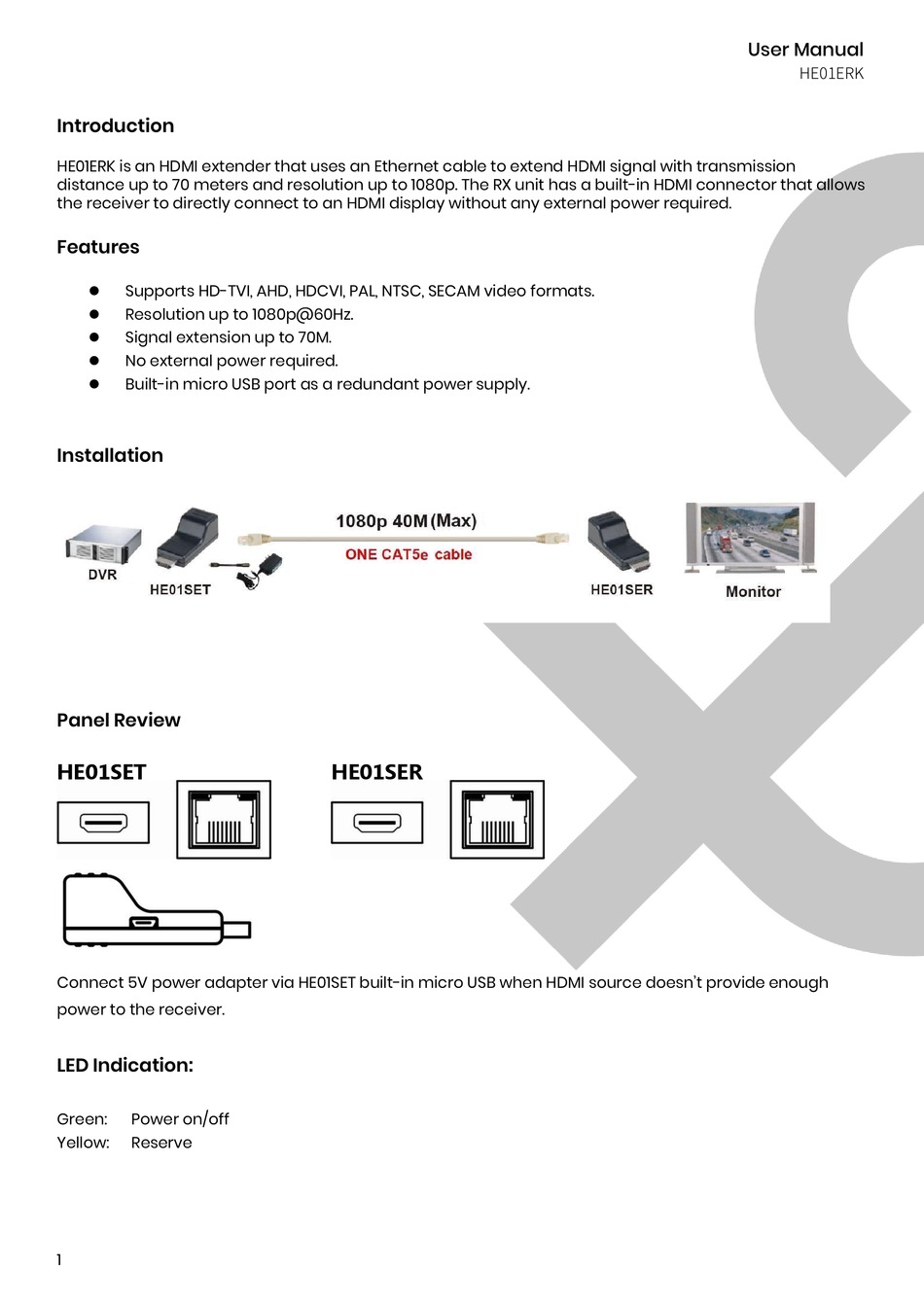

Introduction; Features; Installation - SC&T HE01ERK User Manual

Introduction

HE01ERK is an HDMI extender that uses an Ethernet cable to extend HDMI signal with transmission
distance up to 70 meters and resolution up to 1080p. The RX unit has a built-in HDMI connector that allows
the receiver to directly connect to an HDMI display without any external power required.

Features

Supports HD-TVI, AHD, HDCVI, PAL, NTSC, SECAM video formats.

Resolution up to 1080p@60Hz.

Signal extension up to 70M.

No external power required.

Built-in micro USB port as a redundant power supply.


Installation

Panel Review
HE01SET
Connect 5V power adapter via HE01SET built-in micro USB when HDMI source doesn't provide enough
power to the receiver.
LED Indication:
Green: Power on/off
Yellow: Reserve
