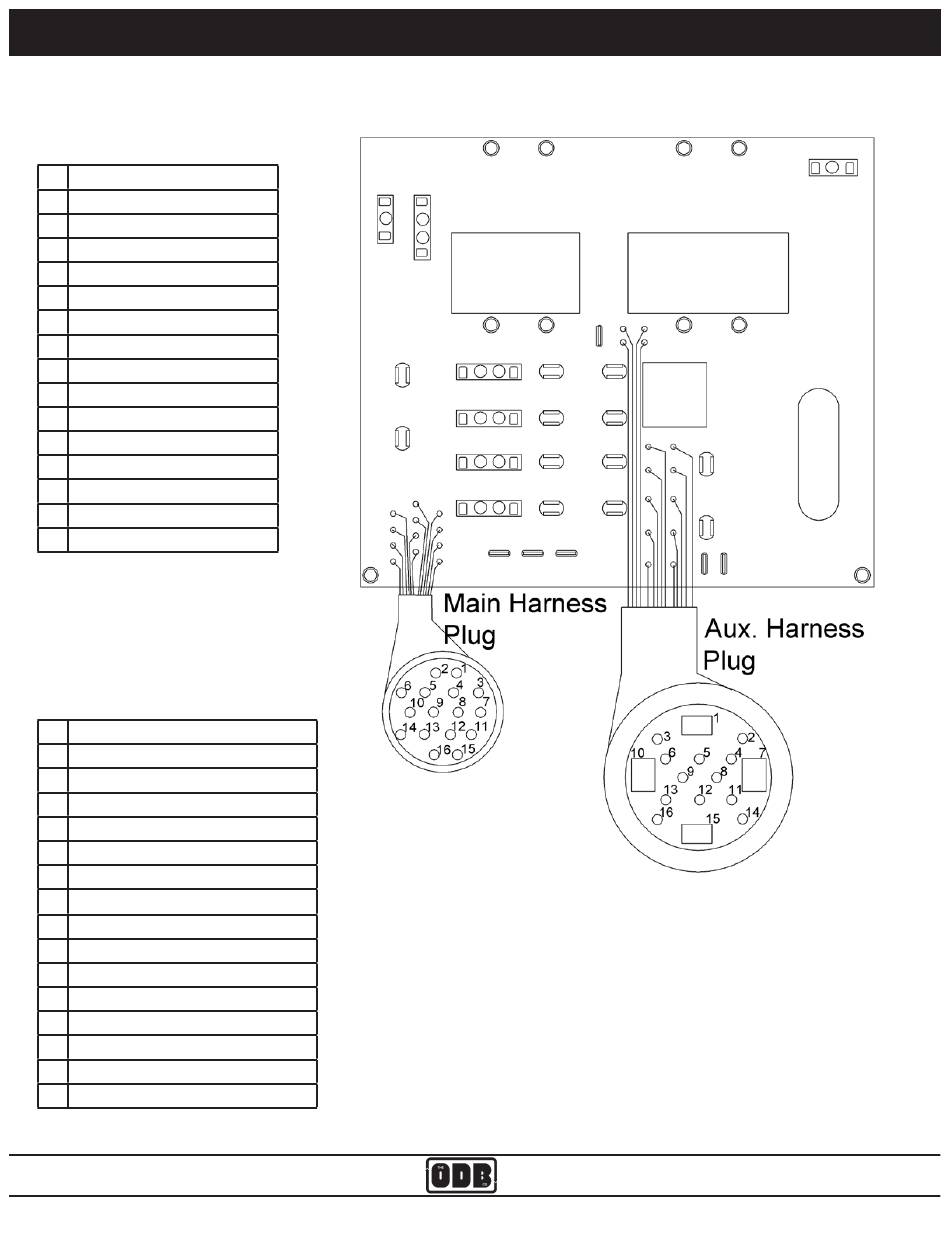

Main Circuit Board Plug Diagrams - ODB LCT60C Owner's Manual

Main Harness Plug
Pin# Description
1 Red + from battery
2 Red / Blue stripe - starter +
3 Orange - Fuel Sol./Col +
4 Black - Ground
5 Purple Alt Energize +
6 White / Red stripe Oil Signal
7 White - Tach Signal
8 Tan / Black stripeE Stop Sig.
9 Tan - Insp. Door Signal
10 Pink - Fuel Level Signal
11 Blue - Temp Signal
12 Blue/Black Temp Shtdwn Sig
13 Red/Black Oil Shutdown Sig.
14 Empty
15 Empty
16 Empty
Aux. Harness Plug
Pin# Description
1 Red + from battery
2 Yellow - Aux Plug harness
3 Yellow - Remote Throttle Har
4 Yellow / Orange stripe-Aux har
5 Orange / Yellow stripe-Aux har
6 Yellow / Green stripe-Clutch Eng
7 Empty
8 Green / Yellow stripe-Clutch Diseng
9 Yellow / Blue stripe-Throttle Fast
10 Empty
11 Blue / Yellow stripe-Throttle Slow
12 Yellow / Blue stripe-Strobe +
13 Purple / Yellow stripe-Strobe Sw+
14 Yellow - Aux Harness
15 Black - battery
16 Yellow - Aux Harness
ODB COMPANY
Service Section

5.10.7 Main Circuit Board Plug Diagrams

800-446-9823
64
LCT60C
