Altronix eBridge PLUS Installation Manual

eBridge100RMT Kit -
IP and PoE+ over
Coax or Extended Ethernet Cable

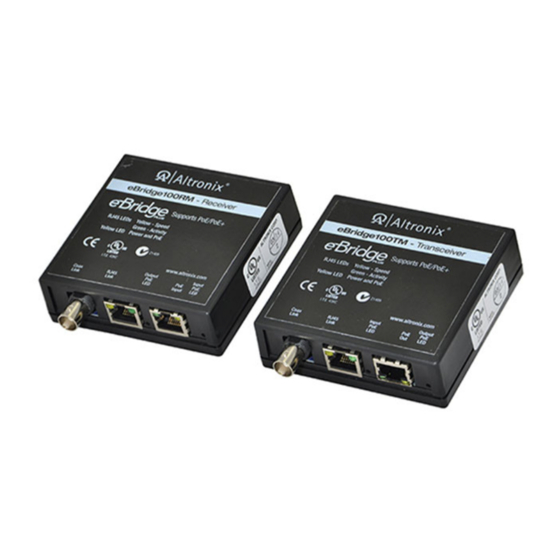

eBridge100RM Receiver and eBridge100TM Transceiver Kit
eBridge100RMT is a versatile dual solution Ethernet adapter/media converter kit which trans-
mits data at 100Mbps full duplex and power over Coax cable or extended CAT5e cable in a
PoE+ compliant format. The eBridge100RM is powered via a PoE midspan such as the Altronix
Netway series or by an endspan. The receiver passes the PoE(+) compliant power over cable to
the eBridge100TM transceiver which in turn passes this power to an enabled IP Camera/device.
These plug and play units facilitate cost effective solutions for IP devices that need to be installed
at distances greater than 100m. They also provide a simple way to replace legacy analog products
with new IP devices over existing coax or structured cable.
Agency Listings:
• UL/CUL Listed for Information
Technology Equipment (UL 60950-1).
• CE approved.
• C-Tick compliant.
Input eBridge100RM:
• Powered by midspan or endspan.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W).
Ethernet:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5.
• Distance: up to 500m.
• Speed: 10/100BaseT, half/full duplex,
auto negotiation.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W)
Delivered to camera by eBridge100TM.
Power provided byveBridge100RM to
eBridge100TM by PoE protocol.*
• Throughput is rated to pass 100mbps of
data at distances up to 500m.
Coax link:
• Distance: Coax 300m (Maximum Length of
Coax Type vs. Camera Power/PoE Class,
pg. 4) for power delivery.
• Connectivity: BNC, RG-59/U or similar.
Coax or CAT5e link:
• Distance: CAT5e up to 500m, Coax 300m
(Maximum Length of Coax or CAT5 Type
vs.Camera Power/PoE Class, pg. 4) for
power delivery.
LED Indicators:
• eBridge100RM and eBridge100TM:
Yellow - PoE ON (by respective RJ45 jack).
*See note on the bottom of page 2.
eBridge100RMT
Installation Guide
PLUS
Overview:
Features:
LED Indicators (cont'd):
• eBridge100RM and eBridge100TM:
Yellow and Green LED (RJ45) IP Link
status, 10/100Base-T/active.
Environmental:
• Operating Temperature:
eBridge100RM:
-- 4ºF to 120.2ºF (- - 20ºC to +49ºC).
eBridge100TM:
-- - 4ºF to 120.2ºF (-- 20ºC to +49ºC).
• Storage Temperature:
-- 22º to 158ºF (-- 30º to +70ºC).
• Humidity: 20 to 85%, non-condensing.
Functions:
• Auto detection and protection of legacy
non-PoE cameras/devices.
Applications:
• Retrofit digital IP cameras in an analog
CCTV installation.
• Works with Megapixel, HD720, HD1080
and VGA (SD) cameras (see note, pg. 2).
• Extend Network link distance in an
industrial environment over 610m
(see note, pg. 2).
• Upgrade deployed CCTV Coax to a digital
network in Retail, Casinos, Airports,
Schools, Hospitals, etc.
Mechanical:
• Dimensions (W x L x H approx.):
eBridge100RM/eBridge100TM:
3.5" x 3.5" x 1"
(88.89mm x 88.89mm x 25.4mm)
I.T.E. 43KC
Rev. 111413
Z1409
- 1 -
