molex 63816-0900 Manual

AT Crimp Head Adapter For Battery Powered Crimp Tools
AT Crimp Head Adapter
For Battery Powered
Crimp Tools

Features

Quick change Crimp Head adapter is easily installed onto Battery
Power Crimp Tool (Order No. 63816-0200)
Powered crimp tools help reduce fatigue and discomfort from
repetitive manual crimping and allows portability
A precision user-friendly terminal locator wire stop holds terminals in
the proper crimping position

SCOPE

The 63816-0900 Crimp Head Adapter was created for use with the
64005 and 64007 series AT Crimp Head assemblies when the Battery
Powered Tool (Order No. 63816-0200) is preferred over the AT-200
Pneumatic tool.

Installation

To install the Crimp Head Adapter onto the Battery Powered Tool,
(Order No. 63816-0200), refer to the Instruction Manual TM-638160200,
Section 3, "Set-Up and Adjustments".
Install the AT Crimp Head to the 63816-0900 Crimp Head Adapter,
using the two slotted screws that are used to fasten the head to the AT-
200 Pneumatic Actuator. See Figure 1.
CAUTION: Never place fingers into the tooling nest.

Operation

1. To load a terminal and position the wire in the terminal in the Power Crimp Head, follow the loading procedure
as explained in the AT Air Powered Crimp Tool Head instruction sheet.
2. Crimp the terminal by squeezing the trigger on the side of the battery actuator until the tool cycles and returns
and the jaws open.
3. Remove the terminal from the locator and inspect the crimp for proper quality.
Doc No: ATS-638160900
Revision: A
Application Tooling
Specification Sheet
Release Date: 05-20-11
Revision Date: 05-20-11
AT CRIMP
HEAD
ASSEMBLIES
AT CRIMP
HEAD
ADAPTER
SLOTTED
SCREWS (2)
LOCKING
PINS (2)
UNCONTROLLED COPY
Order No. 63816-0900
BATTERY
POWERED
TOOL

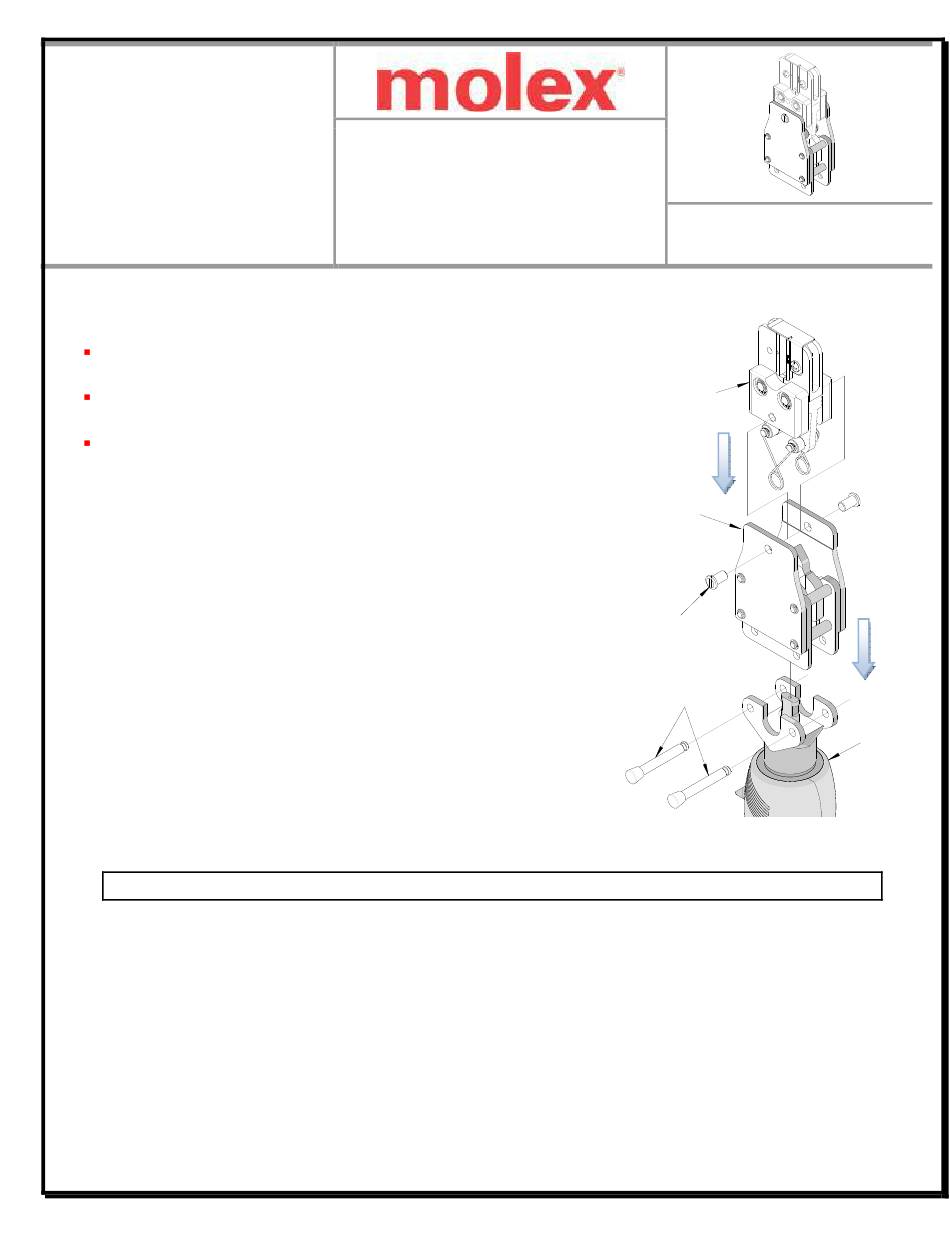

Figure 1
Page 1 of 2
