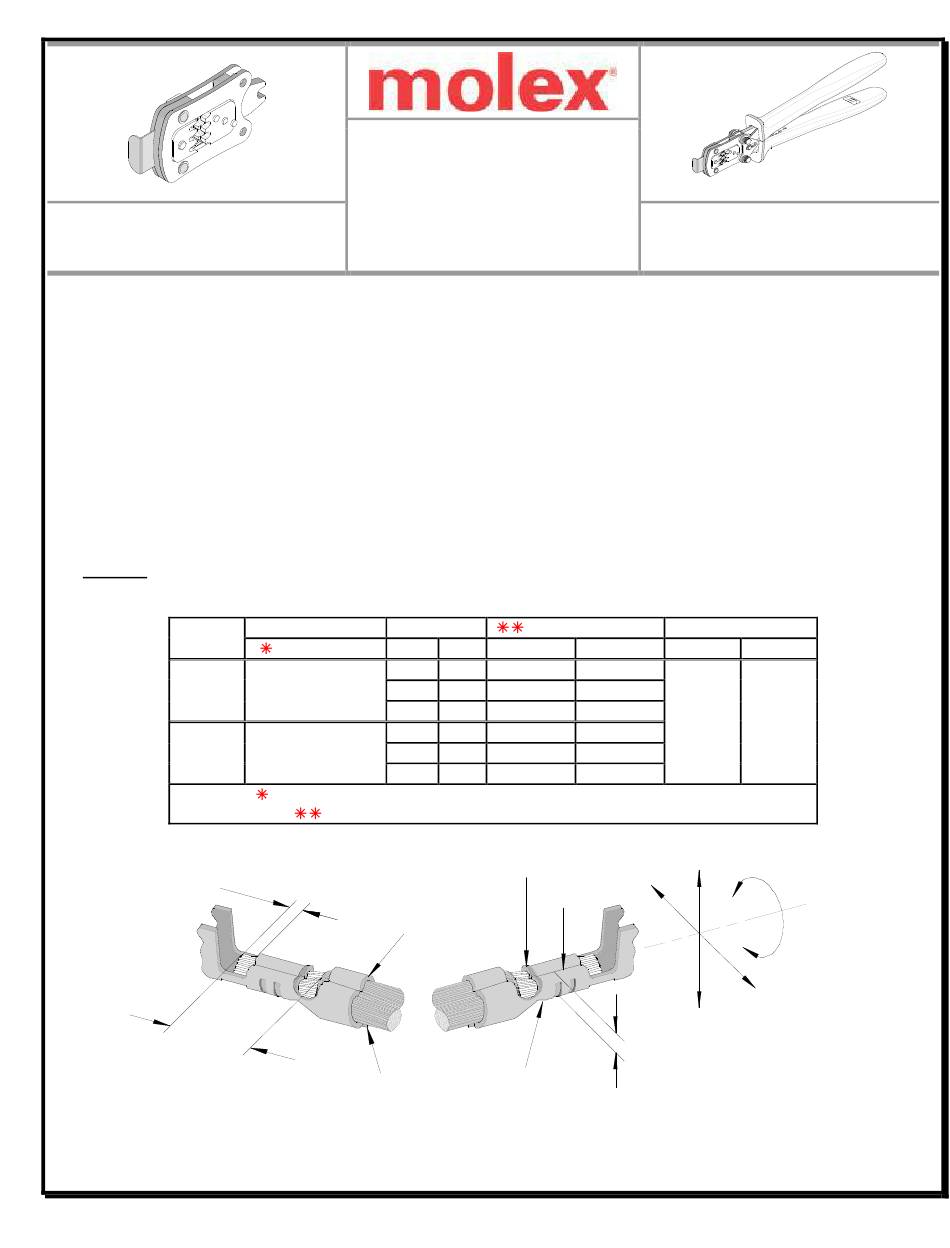

molex 63823-5370 Manual

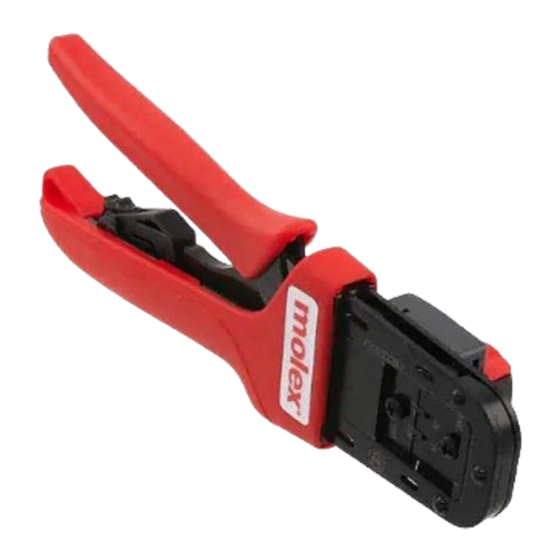

Hand Crimp Tool for Wire-to-Wire and Wire-to-Board Terminals
Modular Crimp Head
Order No. 63823-5370

FEATURES

A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63813-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).

SCOPE

Products: 3.96mm (.156") Pitch Wire-to-Wire and 6.50mm (.256") Pitch Wire-to-Board Crimp Terminals,
22-26 AWG.
Terminal
Series
50598
50600

DEFINITION OF TERMS

BRUSH
STRIP
LENGTH
This illustration is a generic terminal representation and not an exact image of any terminal listed in the scope.
Doc No: ATS-6382353HM
Revision: B
Application Tooling
Specification Sheet
Terminal Order No. Wire Size
Reel Form only AWG
22
50598-8100 24
26
22
50600-8100 24
26
Customer to cut off terminal from reel: 0.25mm (.010") maximum Cut-off Tab.
See crimp specification for the individual Insulation Diameter.
INSULATION
CRIMP
▲SEE NOTE
CUT-OFF TAB
Release Date: 06-23-10
Revision Date: 10-13-10
Insulation Diameter
mm 2 mm In.
0.35 1.50-1.90 .059-.075
0.20 1.25-1.60 .049-.063
0.12 1.25-1.60 .049-.063
0.35 1.50-1.90 .059-.075
0.20 1.25-1.60 .049-.063
0.12 1.25-1.60 .049-.063
BELL MOUTH
SEAM
CONDUCTOR
CRIMP COND.CRIMP
HEIGHT
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63823-5300
Wire Strip Length
mm In.
2.70-3.30 .106-.130
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 6
