Presets; How To Create A Preset - DEVA Broadcast DB3011 Maintenance And Operation Instruction Manual

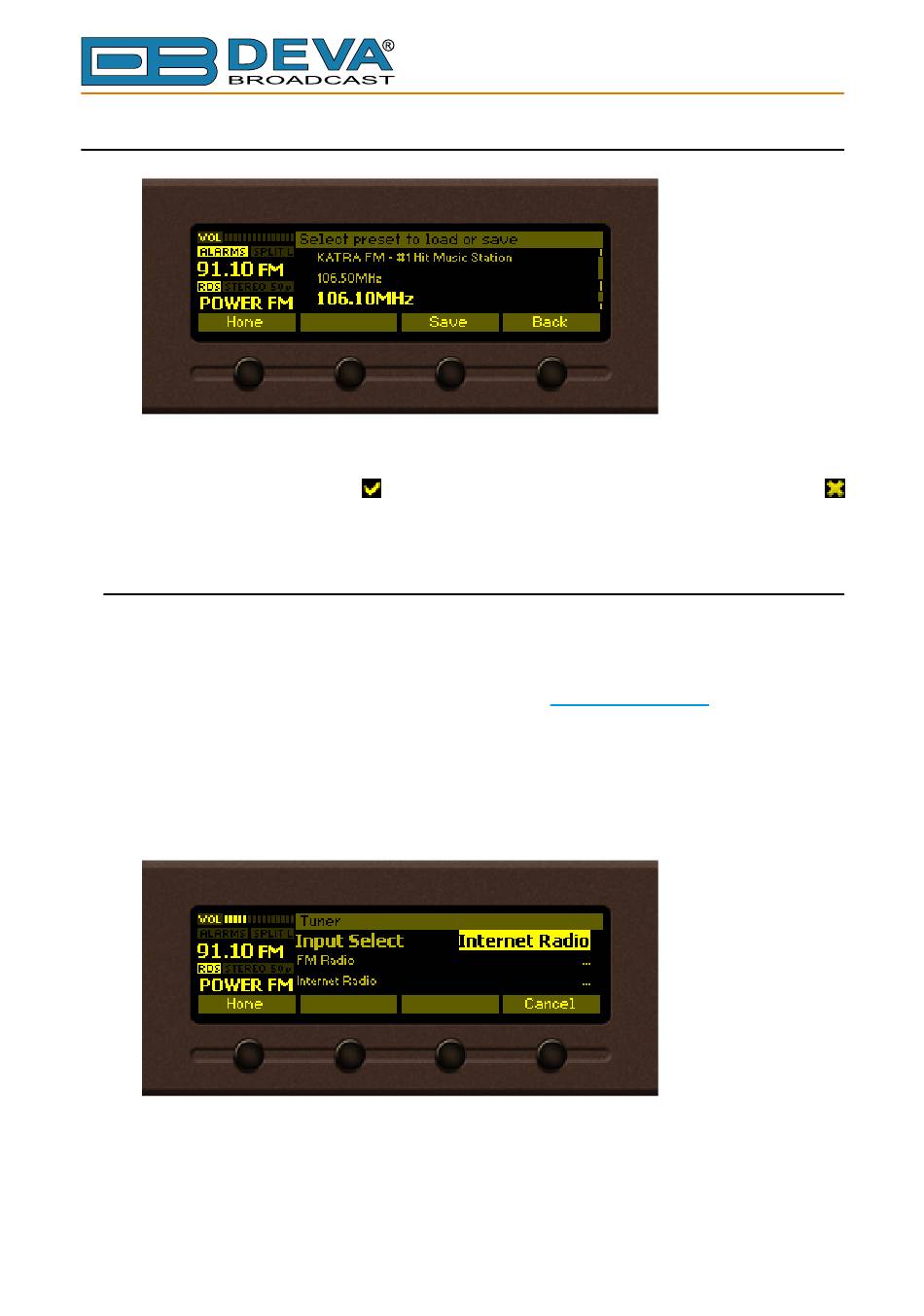

PRESETS

Through this menu, the user has full access to the entire set of presets, thus allowing fast switch
up between the FM and Internet radio stations.
When a preset is market with
appears, this means that some changes have been made to the preset and if you would like you
could save it as a new one or overwrite the existing.

How to create a preset

You can create up-to 10 presets. The number of FM or Internet radio preset is not limited. For
example, you can set 7 FM presets and 3 Internet radio presets, or 10 FM Radio presets, and etc.
There is no limitation as regards the possible configurations. A new preset could also be created via
the WEB Interface, for further information, please refer to
Please have in mind that if you would like a preset to be assigned to one of the four soft buttons
on the front panel menu, the preset should be set in positions 1 to 4, as these are the positions to be
used for quick access via the soft buttons.
The menu path for creating a new preset is Main menu> Tuner, then:
1. Input Select – Select the input – Internet Radio or FM Radio;
2. If FM Radio is chosen, select FM Radio and press the [OK] button to enter the menu.
Specify Frequency, Frequency Step, HD Test Mode, De-emphasis, RDS Mode, and if
need be, change the default audio processing settings – Stereo Blend, High Cut and Soft
Mute.
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria
E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com
in front of it, this means that the preset is in use. If the
"Presets" on page
- 31 -
Tel: +359 56 820027, Fax: +359 56 836700
49.
