3. If Internet Radio is chosen, select Internet Radio and press the [OK] button to enter the
menu. Then, set the URL (press the [OK] button and navigate through the letters via the
[UP] and [DOWN] buttons), specify Decoder, Channels, Pre-buffer, Buffering timeout
and Gain adjust.
4. To save the newly added FM/HD or Internet radio, go to Presets and choose one of the
available presets, or an old one and press the soft button labeled [Save]. If you choose to

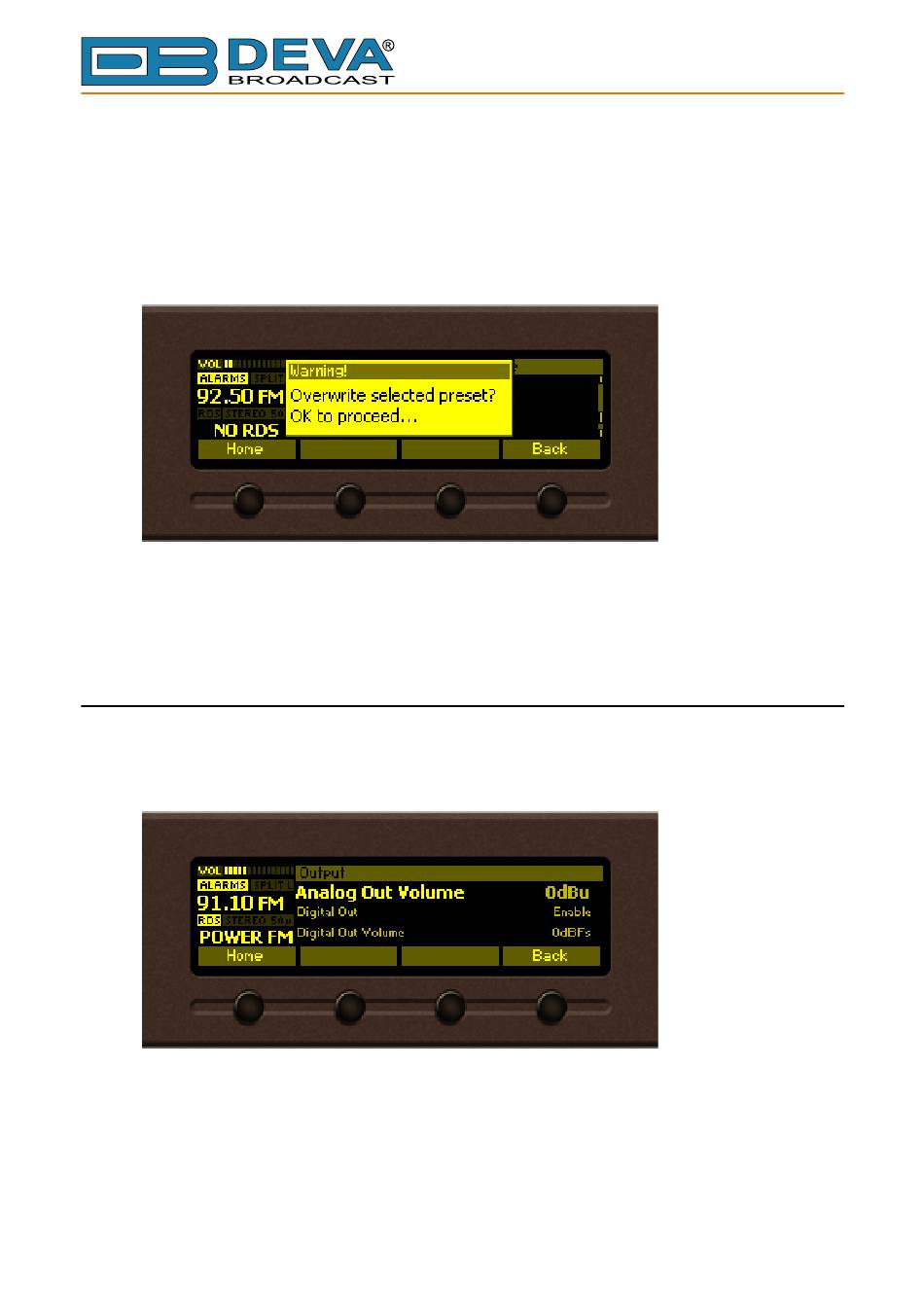

overwrite an existing preset, the message below will appear. Press [OK] to save the preset.
NOTE: The name of the preset cannot be user-defined as it is automatically generated by the
device. When FM radio preset is created, the name is composed of the frequency and the PS (if the
device has decoded RDS). For the Internet radio, as a title is used the station name received from
the broadcasted meta information.

OUTPUT

The settings applied through this menu have influence on the audio level of the analog and
digital outputs. From here you can easily disable the Digital Out, and regulate the output level of
the Digital Out Volume and Analog Out Volume simultaneously.
